Page 33
Chapter 2 Installations
CI5VGM User’s Manual
29

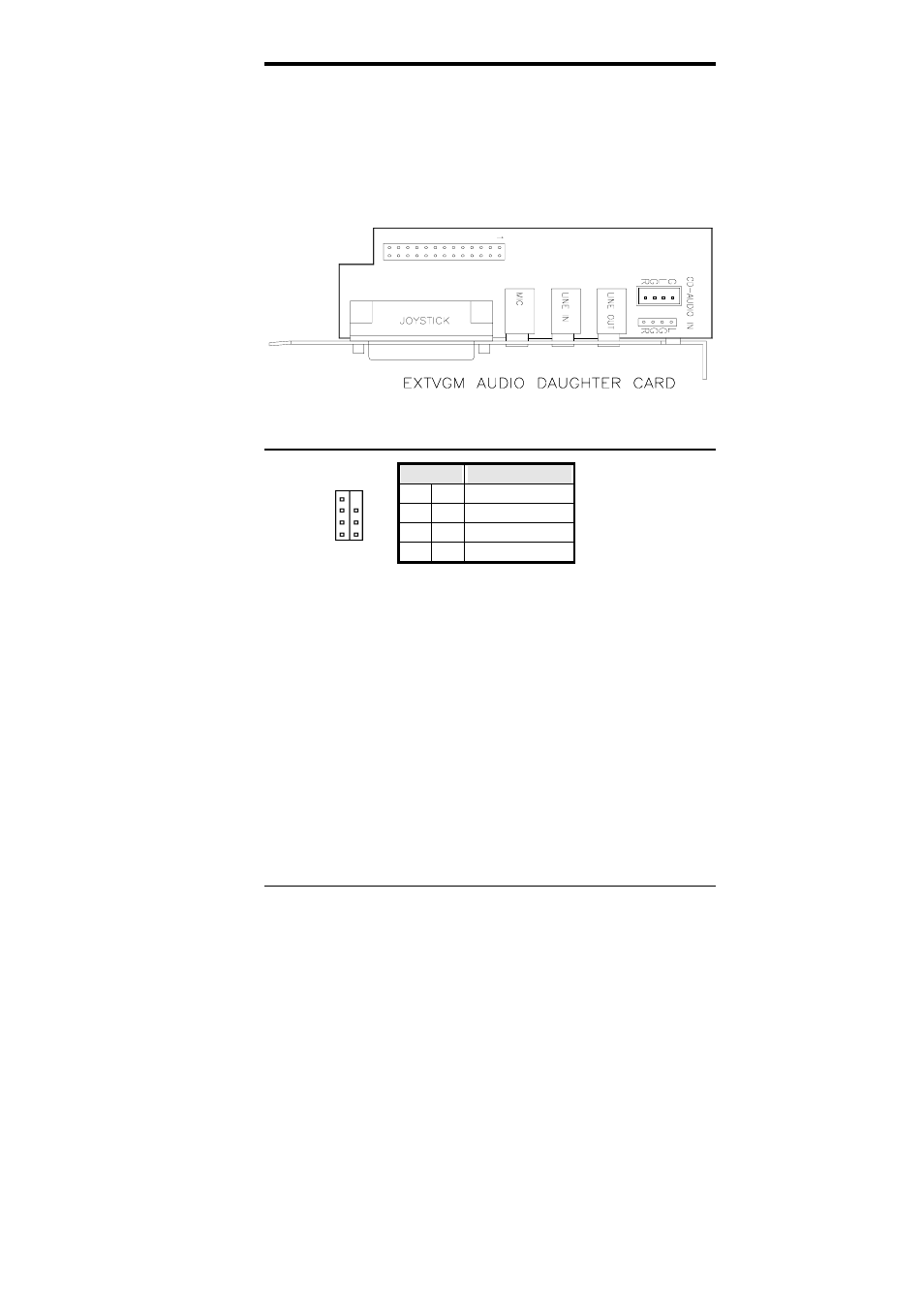

J4: Audio I/O Connector (Continued)
The J4 Audio I/O Connector connects to the EXTVGM Audio Daughter Card
with the 26-pin ribbon cable supplied with the package. The EXTVGM Audio
Daughter card provides two CD-AUDIO IN internal connectors and external
connectors for LINE OUT, LINE IN, MICROPHONE, and JOYSTICK/MIDI.
Refer to the figure below.
J5: USB Connector
Pin #
Signal Name
1 5
Vcc
2 6
USB-
3 7
USB+
1
2
3
4
J5
5
6
7
8
4 8
Ground
