J17: external mouse connector, J19: ps/2 keyboard connector, J20: ps/2 mouse connector – IBM CI5VGM Series User Manual
Page 39
Chapter 2 Installations
CI5VGM User’s Manual
35

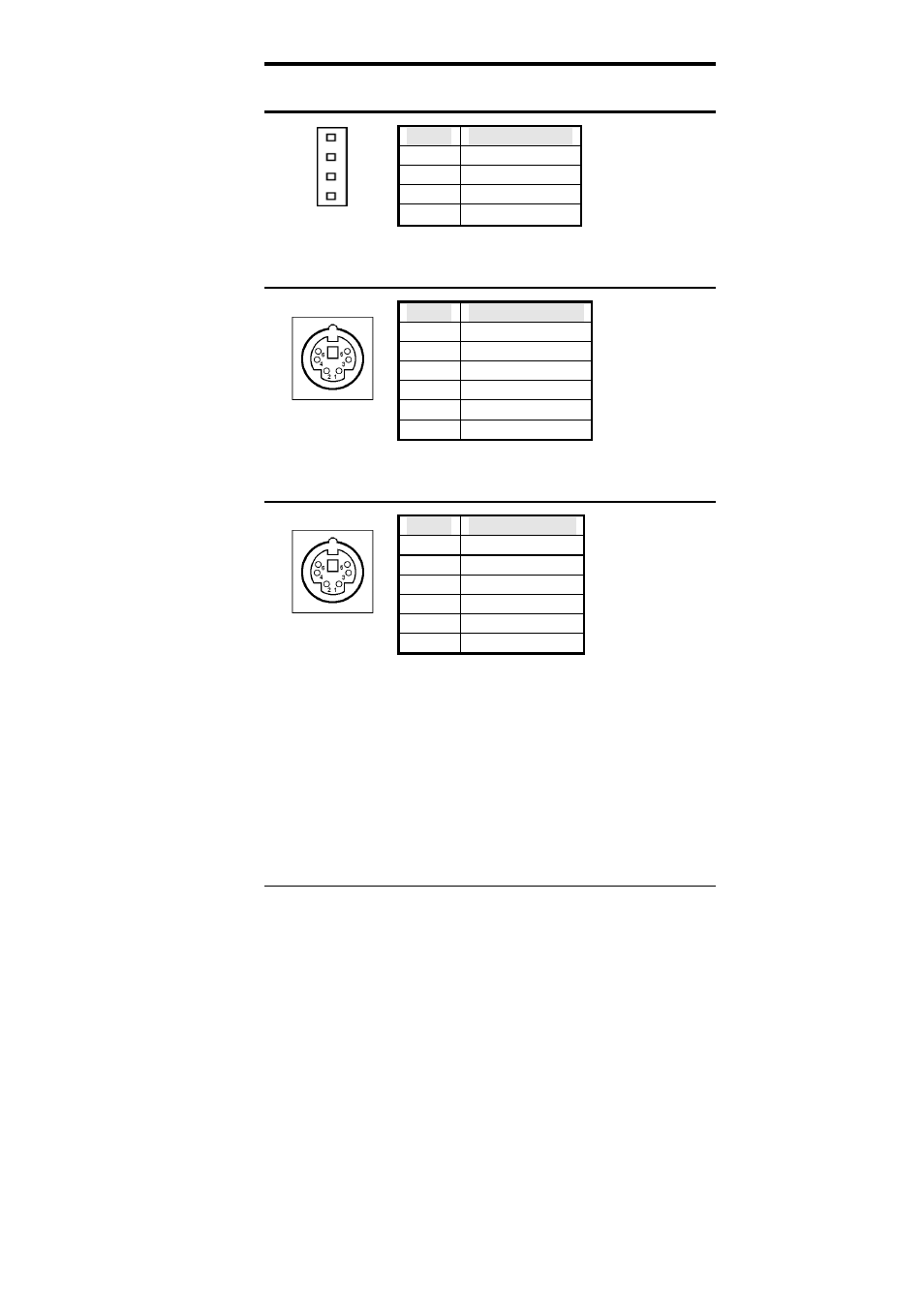

J17: External Mouse Connector
Pin #
Signal Name
1 Mouse
data
2 Ground
3 5V
J17
4 Mouse
Clock
J19: PS/2 Keyboard Connector
Pin #
Signal Name
1 Keyboard
data
2 N.C.
3 Ground
4 5V
5 Keyboard
clock
J19
6 N.C.
J20: PS/2 Mouse Connector
Pin #
Signal Name
1 Mouse
data
2 N.C.
3 Ground
4 5V
5 Mouse
Clock
J20
6 N.C.
