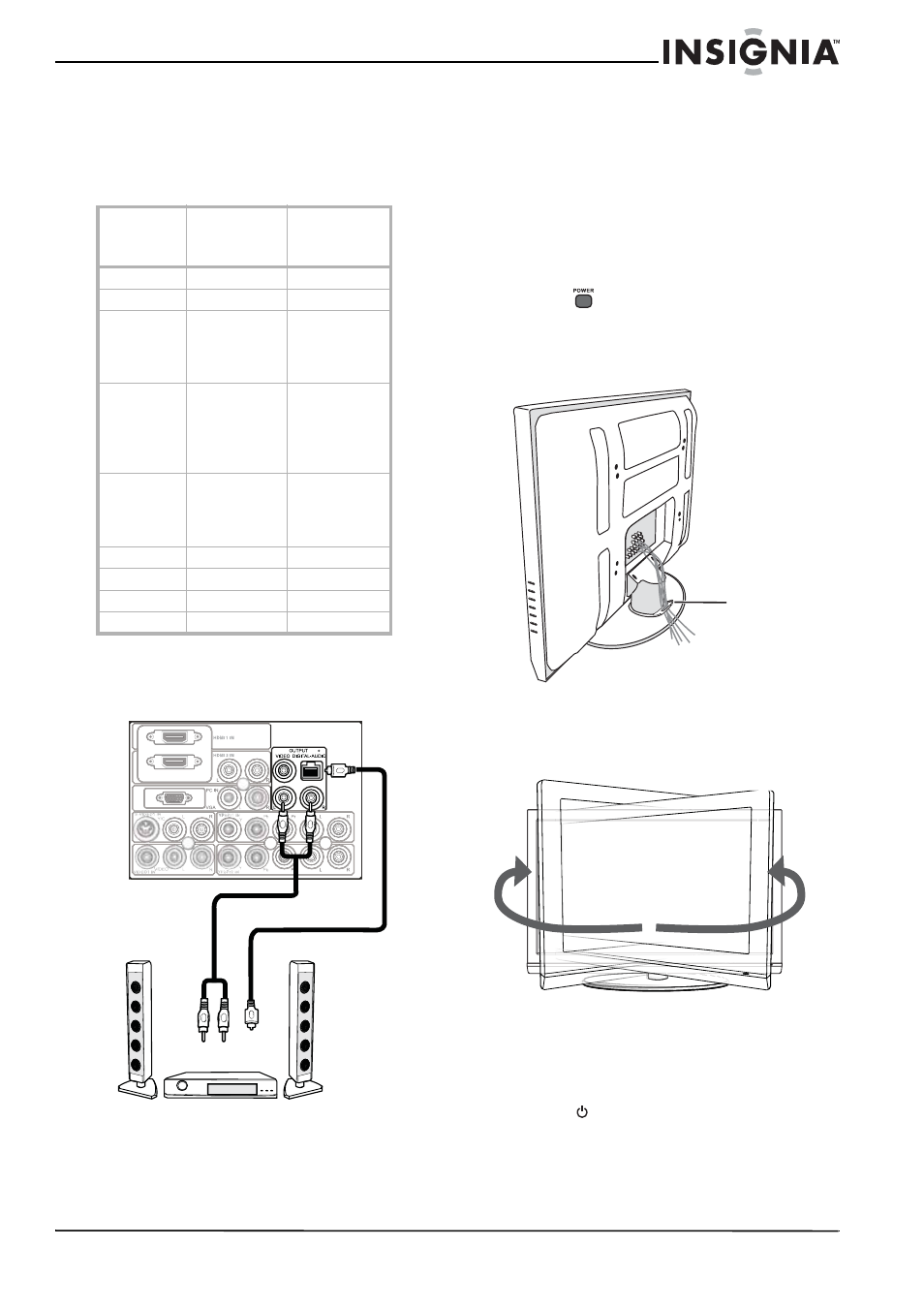

15
Insignia NS-PDP50HD-09 50" PDP TV
www.insignia-products.com
The screen resolution of your TV is optimized
during for the display modes listed below. If the
signal from the PC is a standard resolution, the
screen is adjusted automatically. If the signal
from the system is not standard, adjust the
screen resolution by referring to your video card
user guide, otherwise there may be no picture.
Connecting an audio receiver or Dolby Digital 5.1
sound system
You can connect your TV’s audio to a digital
amplifier or home theater system.
To connect to an audio receiver or Dolby
Digital 5.1 sound system:
1 Plug RCA audio cables into the OUTPUT
AUDIO L (white) and AUDIO R (red) jacks on
the back of your TV, then into the AUDIO L
(white) and AUDIO R (red) input jacks on the
audio receiver.
- OR -
Plug an optical cable into the DIGITAL
AUDIO OUTPUT jack on the back of your TV,
then into to optical input jack on your Dolby
Digital 5.1 sound system.
2 Press to turn on your TV.
Arranging the cables
After connecting the cables, bundle the cables
using the cable guide as shown.
Using the swivel base
The viewing angle of your TV may be adjusted
approximately 60° to the left or right as shown.
Using your TV
Turning the TV on and off
To turn your TV on and off:
1 Press (power) on the TV or remote
control. The POWER/STANDBY indicator
turns blue and your TV turns on.
Resolution
Vertical
frequency
(Hz) Horizontal
frequency
(kHz)
640 Ч 400 85 37.9
720 Ч 400 85 37.9
640 Ч 480 60
72
75
85 31.5
37.9
37.5
43.3
800 Ч 600 56
60
72
75
85 35.1
37.9
48.1
46.9
53.7
1024 Ч 768 60
70
75
85 48.4
56.5
60.0
68.7
1152 Ч 864 75 67.5
1280 Ч 960 60 60.0
1280 Ч 1024 60 64.0
1366 Ч 768 60 47.7
Audio amplifier
or receiver
Back of
TV
Optical cable Audio cable
Cable guide
