13
Insignia NS-PDP50HD-09 50" PDP TV
www.insignia-products.com

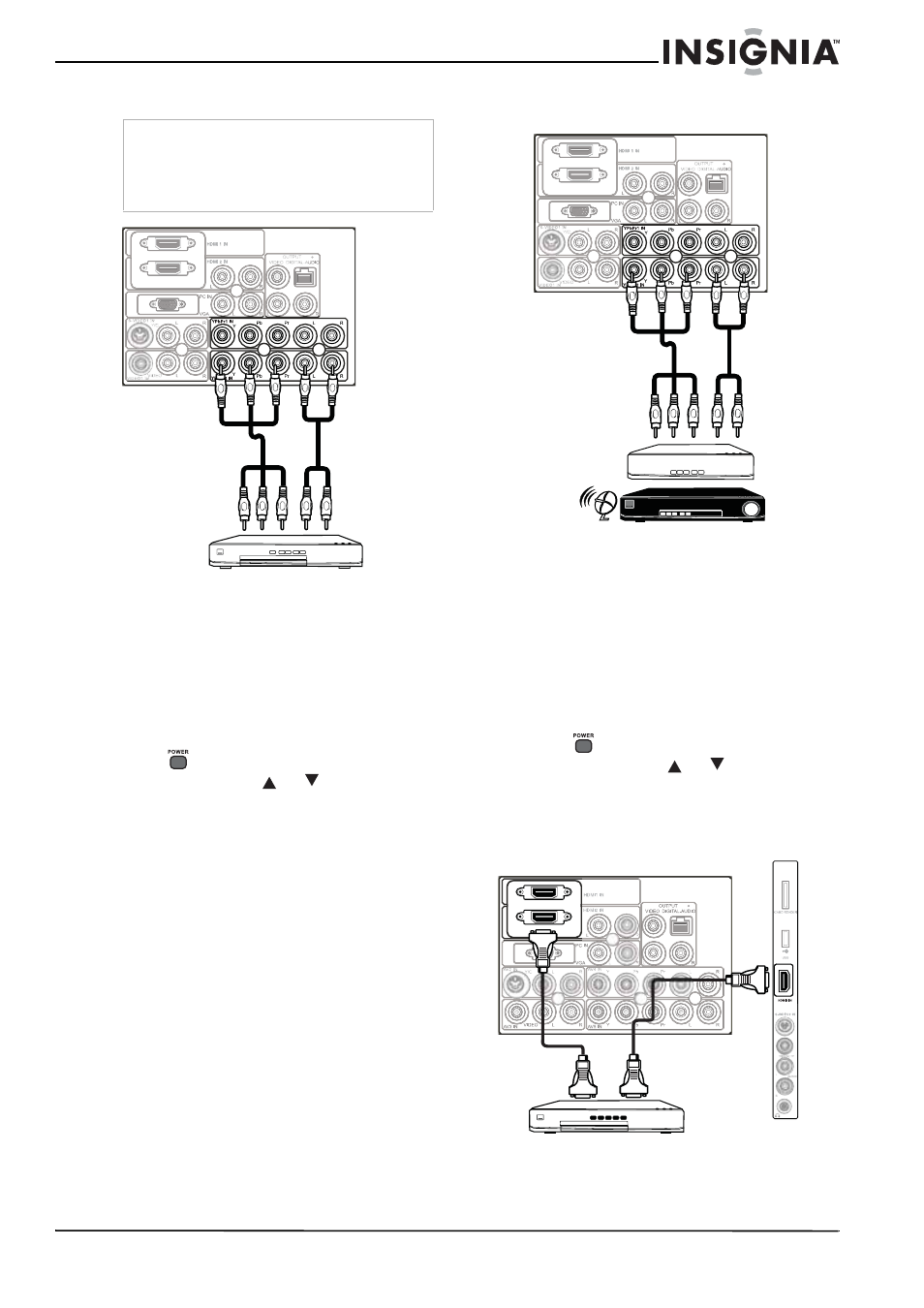

Connecting a DVD player
To connect a DVD player:
1 Plug component video cables (green = Y,
blue = Pb, and red = Pr) into the component
out jacks of the DVD player, then into the
YPbPr1 IN or YPbPr2 IN jacks on the back of
your TV.
2 Plug RCA audio cables into the DVD player’s
audio output jacks, then into the YPbPr1 IN
or YPbPr2 IN
AUDIO L (white) and AUDIO R
(red) jacks on the back of your TV.
3 Press to turn on your TV.
4 Press INPUT, press or to select
YPbPr1 or YPbPr2, then press ENTER to
confirm.
Connecting a digital cable TV box or satellite
receiver
To connect a digital cable TV box or satellite
receiver:
1 Plug component video cables (green = Y,
blue = Pb, and red = Pr) into the component
out jacks of the cable TV box or satellite
receiver, then into the YPbPr1 IN or
YPbPr2 IN jacks on the back of your TV.
2 Plug RCA audio cables into the audio output
jacks of the cable TV box or satellite receiver,
then into the YPbPr1 IN or YPbPr2 IN
AUDIO L (white) and AUDIO R (red) jacks on
the back of your TV.
3 Press to turn on your TV.
4 Press INPUT, press or to select
YPbPr1 or YPbPr2, then press ENTER to
confirm.
Connecting AV equipment with an HDMI cable
Note
• You can also connect the output from a digital
set-top box to the YPbPr jacks.
• The component out jacks of your DVD player
may be labeled YPbPr or YCbCr. For an
explanation, see your DVD player’s user guide.
Audio
cable
DVD player
Component
cable
Back of
TV
Back of TV
Component cable Audio cable
TV cable box
Satellite
receiver
Back of TV
Side of TV
AV equipment
