11
Insignia NS-PDP50HD-09 50" PDP TV
www.insignia-products.com
Connecting cable TV
Your TV has a 75 ohm AIR/CABLE IN jack for
connecting cable TV.
Some cable TV providers scramble the signals
for “premium” (pay) channels. To view these
channels, you need a converter/descrambler
box.
If you do not have a converter/descrambler box,
you can connect your cable TV directly to your
TV. If you have a converter/descrambler box, you
can connect your cable TV using an RF switch
(not supplied). For more information about
connecting a converter/descrambler box, contact
your cable TV provider.
To connect cable TV without a
converter/descrambler box:
1 Connect one end of a 75 ohm cable to the
AIR/CABLE IN jack on the back of your TV.
2 Connect the other end of the cable to the
cable TV wall outlet.
To connect cable TV with a
converter/descrambler box:
•

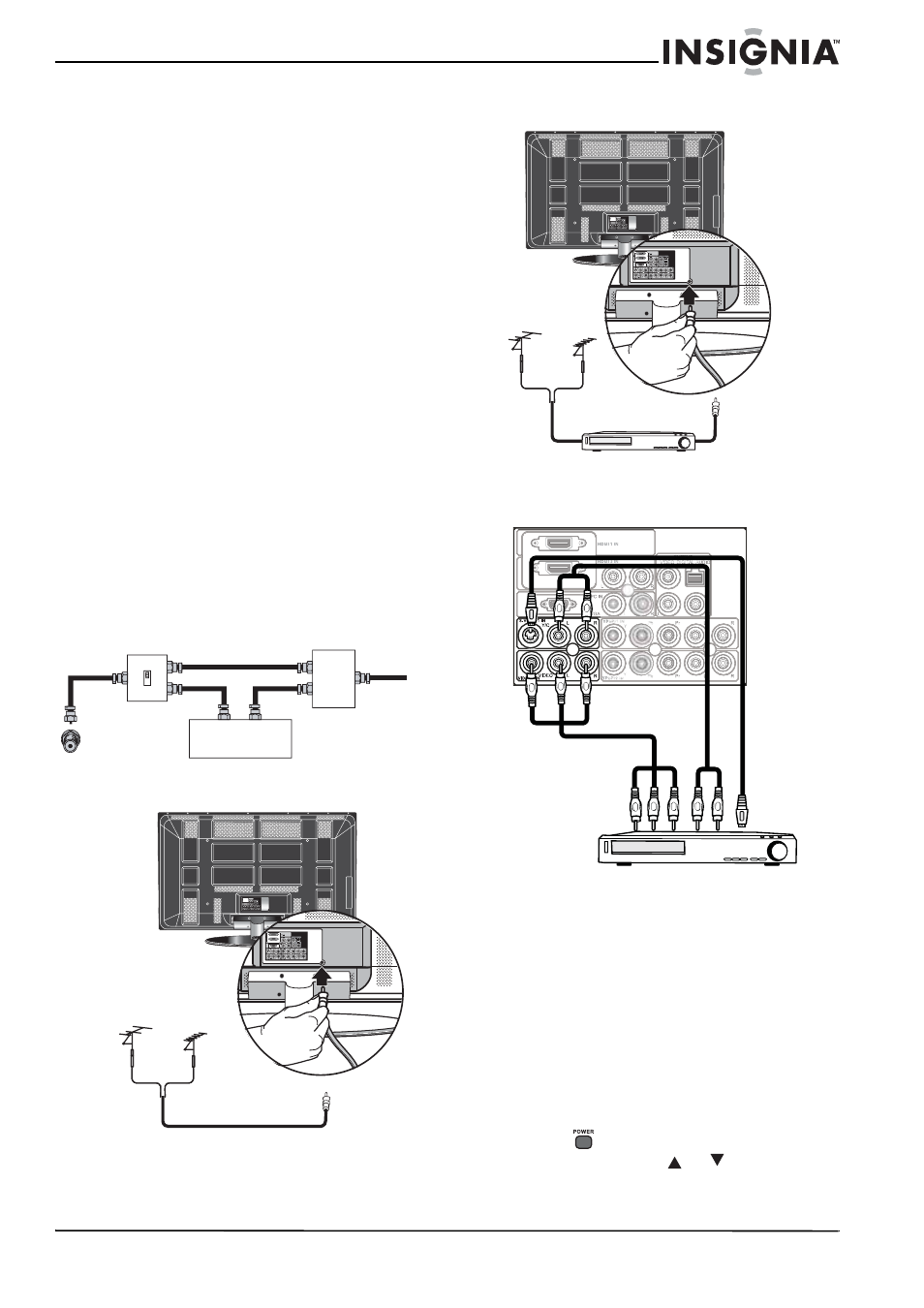

Use the following illustration to connect a
converter/descrambler box. (The RF switch
and the signal splitter are not provided.)
Set the RF switch to the A position to watch
unscrambled channels controlled by your TV
remote control. Set the RF switch to the B
position to watch scrambled channels
controlled by the converter/descrambler
controls.
To connect digital cable TV
To connect your antenna or digital cable TV
through your VCR
Connecting external equipment
Connecting a VCR
To connect a VCR:
1 Plug an RCA composite video cable (yellow)
into the video out jack of the VCR, then into
the VIDEO1 IN (yellow) jack on the back of
your TV.
- OR -
Plug an S-Video cable into the S-Video out
jack of the VCR, then into the
S-VIDEO1 IN
jack on the back of your TV.
2 Plug RCA audio cables into the VCR’s audio
output jacks, then into the VIDEO1 IN (for
video cable), or S-VIDEO1 IN (for S-Video
cable) AUDIO L (white) and AUDIO R (red)
jacks on the back of your TV.
3 Press to turn on your TV.
4 Press INPUT, press or to select
VIDEO1 or S-VIDEO1, then press ENTER to
confirm.
RF switch
Cable converter/descrambler box
Two-set signal splitter
Out In
A
B
TV
Y
Y Pb Pr
Pb Pr
L R
R L PC IN
VIDEO L R
L R Y/C R L R R L HDMI 2 IN HDMI 3 IN DIGITAL-AUDIO VIDEO OUTPUT
AV2 IN AV4 IN
AV3 IN AV5 IN
L VGA
Back of TV
TV cable wall
jack or antenna
Y
Y Pb Pr
Pb Pr
L R
R L PC IN
VIDEO L R
L R Y/C R L R R L HDMI 2 IN HDMI 3 IN DIGITAL-AUDIO VIDEO OUTPUT
AV2 IN AV4 IN
AV3 IN AV5 IN
L VGA
TV
VCR TV cable wall
jack or antenna
Back of
TV
VCR
Audio
cable
AV cable
S-Video
cable
