4.2 Back Panel Connectors
This section describes the Mobile Intel ® 915GME Express Chipset panel connectors on
the Mobile Intel ® 915GME Express Chipset platform.
Note: Many of the connectors provide operating voltage (for example, +5 V DC and +12 V
DC) to devices inside the computer chassis, such as fans and internal peripherals. Most
of these connectors are not over-current protected. Do not use these connectors for
powering devices external to the computer chassis. A fault in the load presented by the
external devices could cause damage to the computer, the interconnecting cable, and
the external devices themselves.

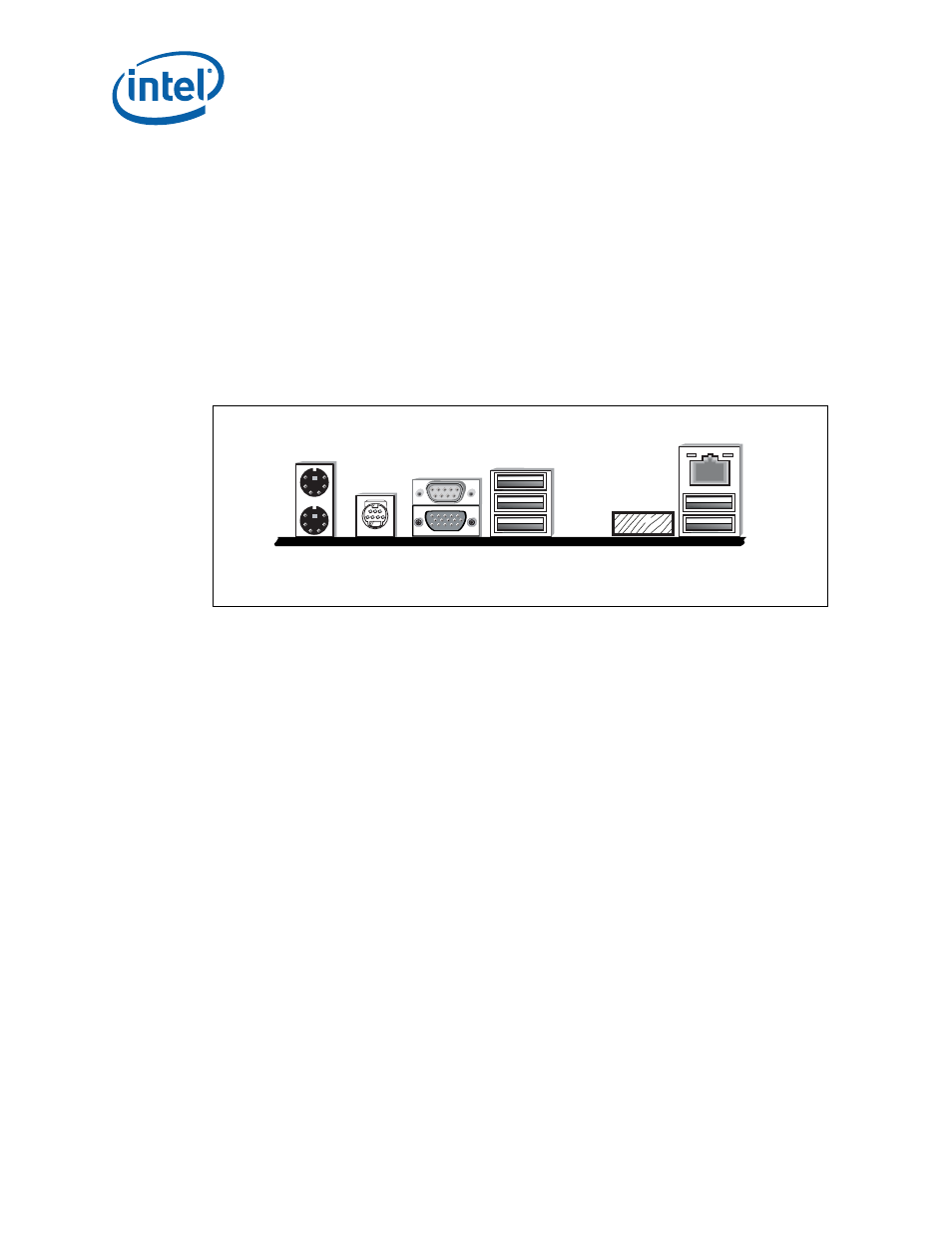

Figure 3 shows the back panel connectors to the Mobile Intel ® 915GME Express Chipset
platform.
Figure 3. Back Panel Connector Locations
B6526-01
Mouse
Keyboard USB
(2 ports)
USB
(3 ports)
LAN
Not
Functional
VGA
Serial
IrDA
