Page 62: Rear view of frame locations -6, Frame (fra) -6
Note: See notes under Figure 2-1 on page 2-3 for processor node/switch assembly numbering.
Frame locations
Figure 2-1 on page 2-3 shows a front view of the RS/6000 SP frame locations, with numbered processor
nodes, and the three phase SEPBU.
Frame (FRA)
This list shows the designations specifically for the RS/6000 SP frame:
G1:
Right-hand rear ground
G2:
Left-hand rear ground
G3:
PDU ac ground
G4:
PDU dc ground
G5:
Input cable ground

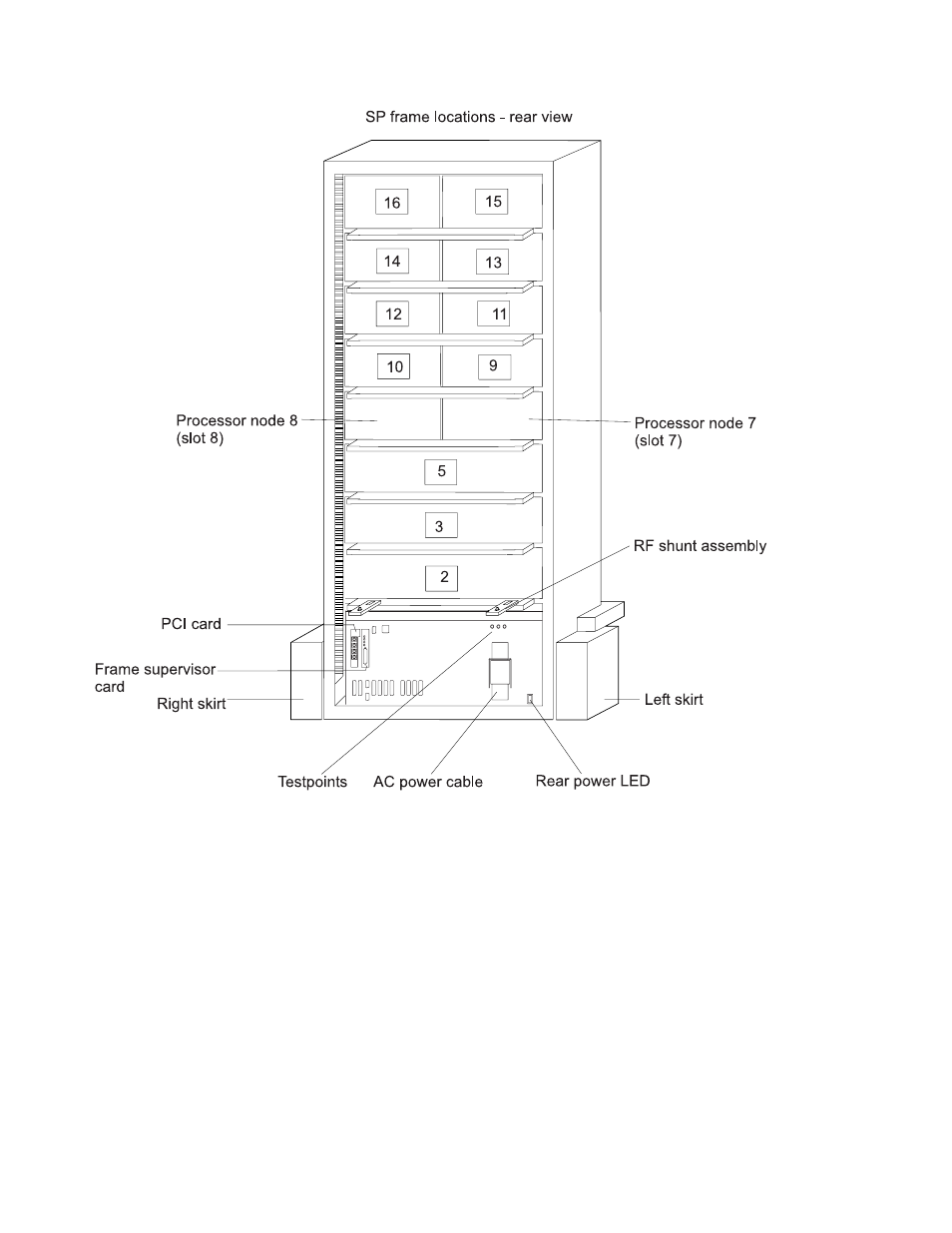

Figure 2-4. Rear view of frame locations
2-6
RS/6000 SP: SP Switch Service Guide
