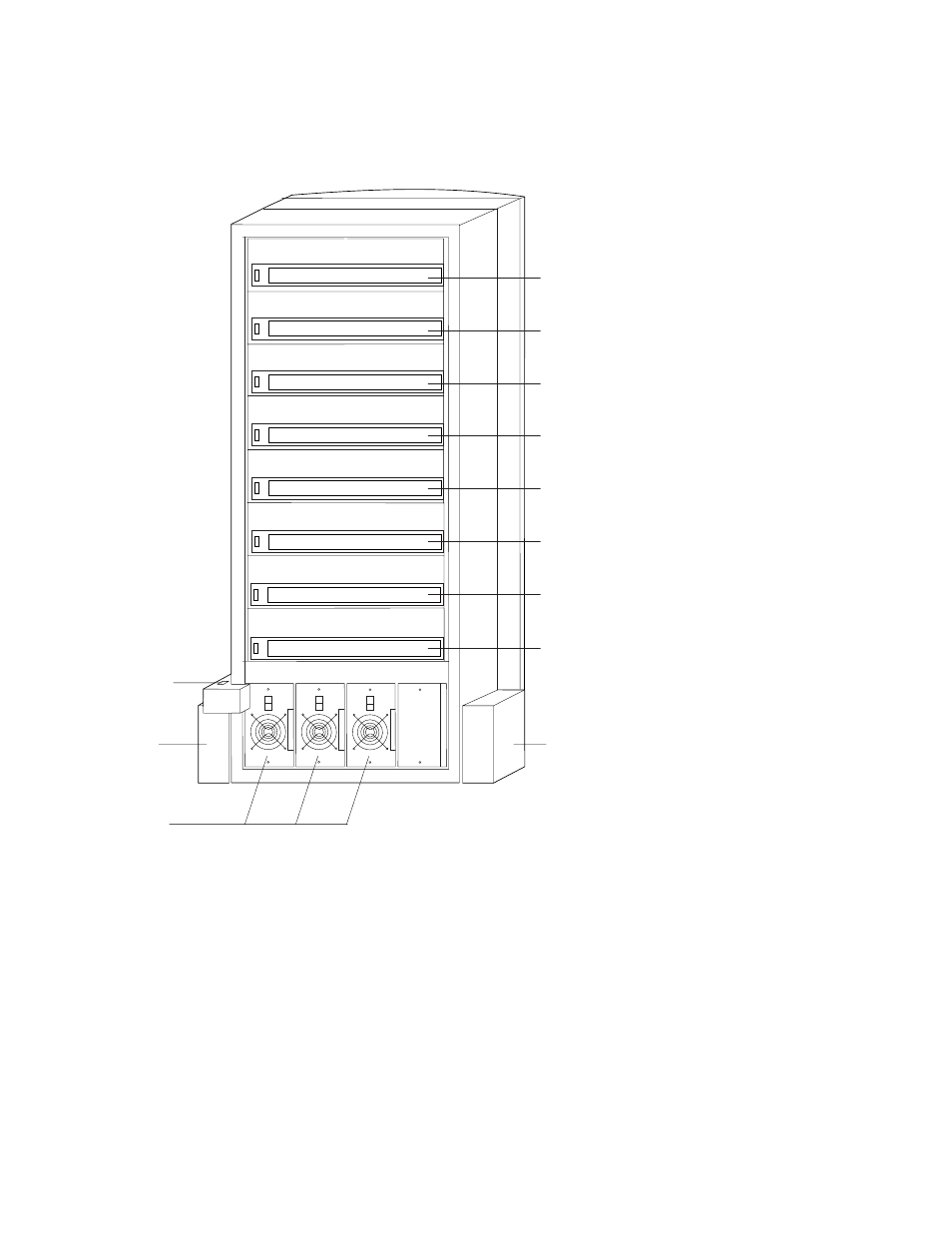

Figure 2-2 shows a front view of the RS/6000 SP multi-switch frame.
Figure 2-3 on page 2-5 shows a front view of the Model 3AX (49-inch) frame.
Main Power
Switch with
LED
Left Skirt Right Skirt
Switch Asm S2
Switch Asm S4
Switch Asm S6
Switch Asm S8
Switch Asm S10
Switch Asm S12
Switch Asm S14
Switch Asm S16
SP Switch Frame Locations - Front View
(Front Cover and Skirt, and Air Filter Removed)
48 V Power
Modules
A B C
Figure 2-2. Front view of multi-switch frame locations
