92
Advanced Setup
—Continued

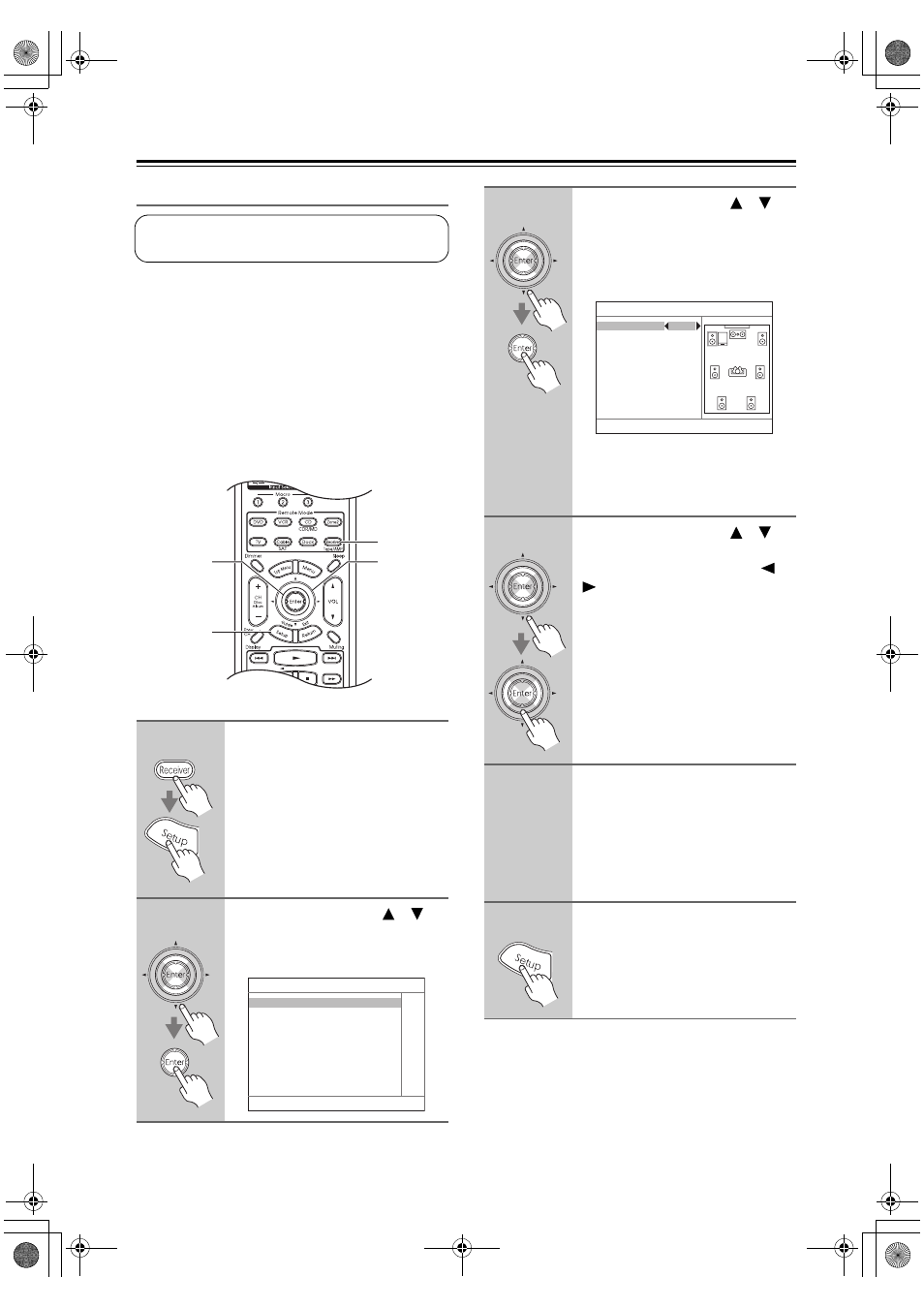

Speaker Level Calibration
Here you can adjust the level of each speaker with the
built-in test tone so that the volume of each speaker is the
same at the listening position.
Notes:
• The speakers cannot be calibrated while the output of
the AV receiver is muted.
• The test tone is output at the standard level for THX,
which is 0 dB (absolute volume setting 82). If you nor-
mally listen at volume settings below this, be careful
because the test tone will be much louder.
Notes:
• This procedure can also be performed by using the [Test
Tone] button, [Level–] and [Level+] buttons. First press
the [Test Tone] button to output the test tone. Use the
[Level–] and [Level+] buttons to set the volume, and use
the [CH Sel] button to select the speakers.
• This procedure can also be performed on the AV
receiver by using its [Setup] button, arrow buttons, and
[Enter] button.
1 Press the [Receiver] button fol-
lowed by the [Setup] button.
The main menu appears onscreen.
2 Use the Up and Down [ ]/[ ]
buttons to select “2. Speaker
Setup,” and then press [Enter].
The Speaker Setup menu appears.
This setting is set automatically by the Automatic
Speaker Setup function (see page 52).
2-5
1
2, 3
1, 6
2. Speaker Setup
1. Speaker Settings
2. Speaker Config
3. Speaker Distance
4. Level Calibration
5. Equalizer Settings
6. THX Audio Setup
3 Use the Up and Down [ ]/[ ]
buttons to select “4. Level Cali-
bration,” and then press [Enter].
The Level Calibration menu appears
and the pink noise test tone is output by
the front left speaker.
Note:
Speakers that you set to No or None on
the Speaker Configuration page
(page 88) cannot be selected.
4 Use the Up and Down [ ]/[ ]
buttons to select each speaker,
and use the Left and Right [
]/
[ ] buttons to set the volume.
The volume can be adjusted from –12
to +12 dB (–15 dB to +12 dB for the
subwoofer) in 1 dB steps.
5 Repeat step 4 until the volume of
the test tone from each speaker
is the same.
If you’re using a handheld sound level
meter, adjust the level of each speaker
so that it reads 75 dB SPL at the listen-
ing position, measured with C-weight-
ing and slow reading.
6 Press the [Setup] button.
The setup menu closes.
2–4. Level Calibration
Left 0dB
Center 0dB
Right 0dB
Surr Right
0dB
Surr Back R 0dB
Surr Back L 0dB
Surr Left 0dB
Subwoofer 0dB
