40
Connecting the AV Receiver
—Continued

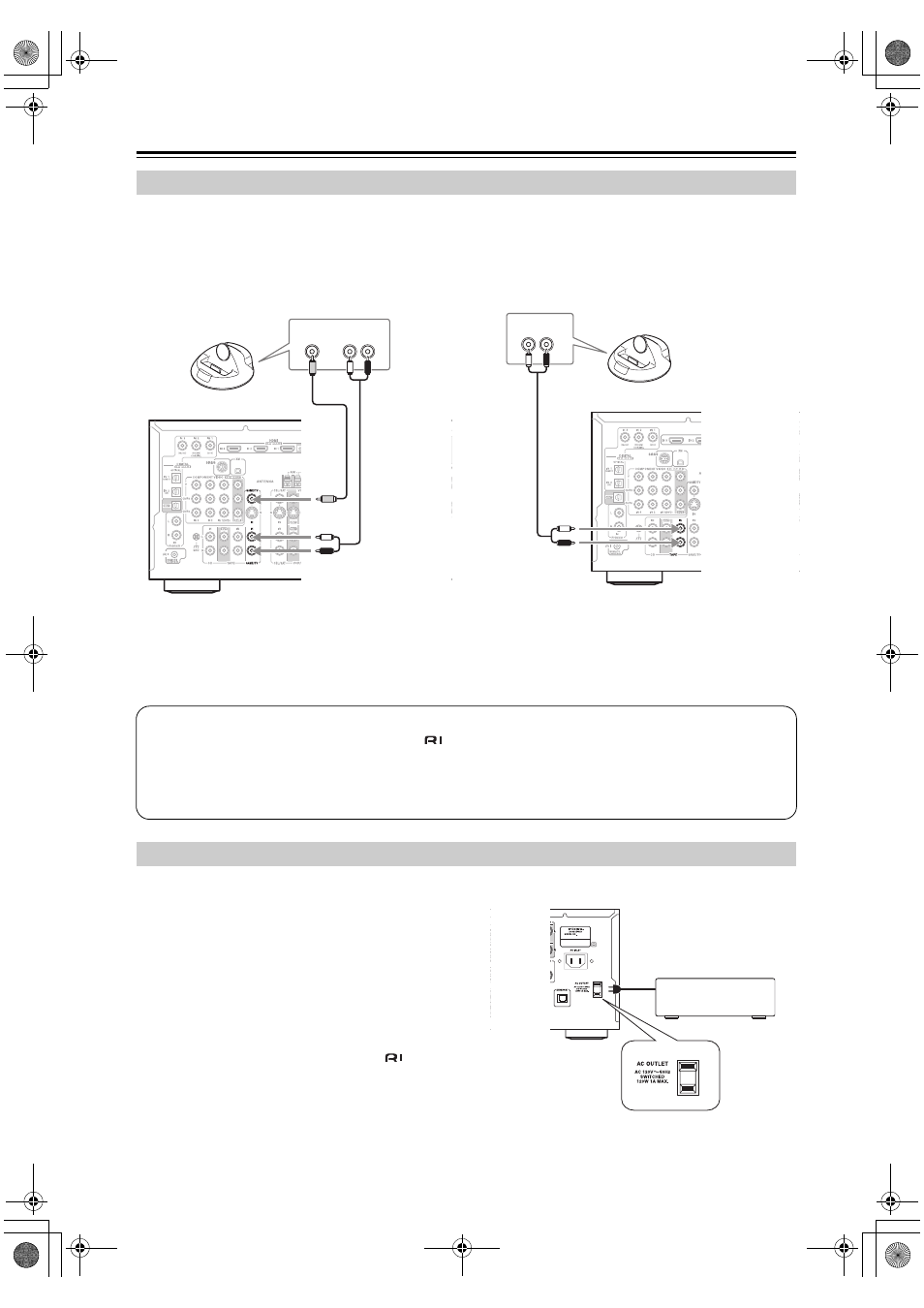

■ iPod with video
Connect your RI Dock’s analog audio output jacks
and Video output jack to the AV receiver’s
GAME/TV IN L/R jacks and GAME/TV IN V jack.
(Onkyo DS-A2 hookup shown below.)
■ iPod without video
Connect your RI Dock’s analog audio output jacks to
the AV receiver’s TAPE IN L/R jacks. (Onkyo DS-
A2 hookup shown below.)
■ If you have an Onkyo DS-A1 RI Dock
• Connect its video output jack to the AV receiver’s GAME/TV IN S jack.
• Enter the appropriate remote control code before using the AV receiver’s remote controllers for the first time (see
page 117).
The AV receiver has AC outlets on its rear panel that can
be used to connect the power cords of other components
that you intend to use with the AV receiver. These com-
ponents can then be left turned on so that they turn on
and off as and when the AV receiver is set to On or
Standby.
Caution:
• Make sure that the total capacity of the components
that you connect to the AC OUTLETS does not
exceed the stated capacity (e.g., TOTAL 120 W).
Notes:
• Integra/Onkyo components connected via
should
be connected directly to a wall outlet, not an AC OUT-
LET on the AV receiver.
Connecting an RI Dock
AUDIO
OUT
L R
VIDEO
OUT
AUDIO
OUT
L R
Notes:
• Connect the Remote Interactive Dock with an
cable (see page 41).
• Set the Remote Interactive Dock’s RI MODE switch to HDD or HDD/DOCK.
• Set the AV receiver’s input display to DOCK (see page 48).
• Refer to the Remote Interactive Dock’s instruction manual.
Connecting the Power Cords of Other Components (North American model only)
