Connecting the AV Receiver
—Continued
■ CD Player or Turntable (MM) with Built-in Phono Preamp
• With connection , you can listen to and record audio from the CD player and listen in Zone 2.
• To connect the CD player digitally, use connection or . (For recording, use and , or and .)
■ Turntable (MM) with no Phono Preamp Built-in
The AV receiver’s PHONO IN is designed for use with a
moving magnet (MM) type cartridge.
Use an analog audio cable to connect the AV receiver’s
PHONO IN L/R jacks to the audio output on your turn-
table.
Notes:
• If your turntable has a ground wire, connect it to the
AV receiver’s GND screw. With some turntables, con-
necting the ground wire may produce an audible hum.
If this happens, disconnect it.
• If your turntable has a moving coil (MC) type car-
tridge, you’ll need a commercially available MC head
amp or MC transformer. Connect your turntable to the
head amp or transformer, and connect that to the AV
receiver’s PHONO IN L/R jacks.
• You can also use a phono equalizer to connect a turn-
table with an MC-type cartridge. See your phono
equalizer’s manual for details.

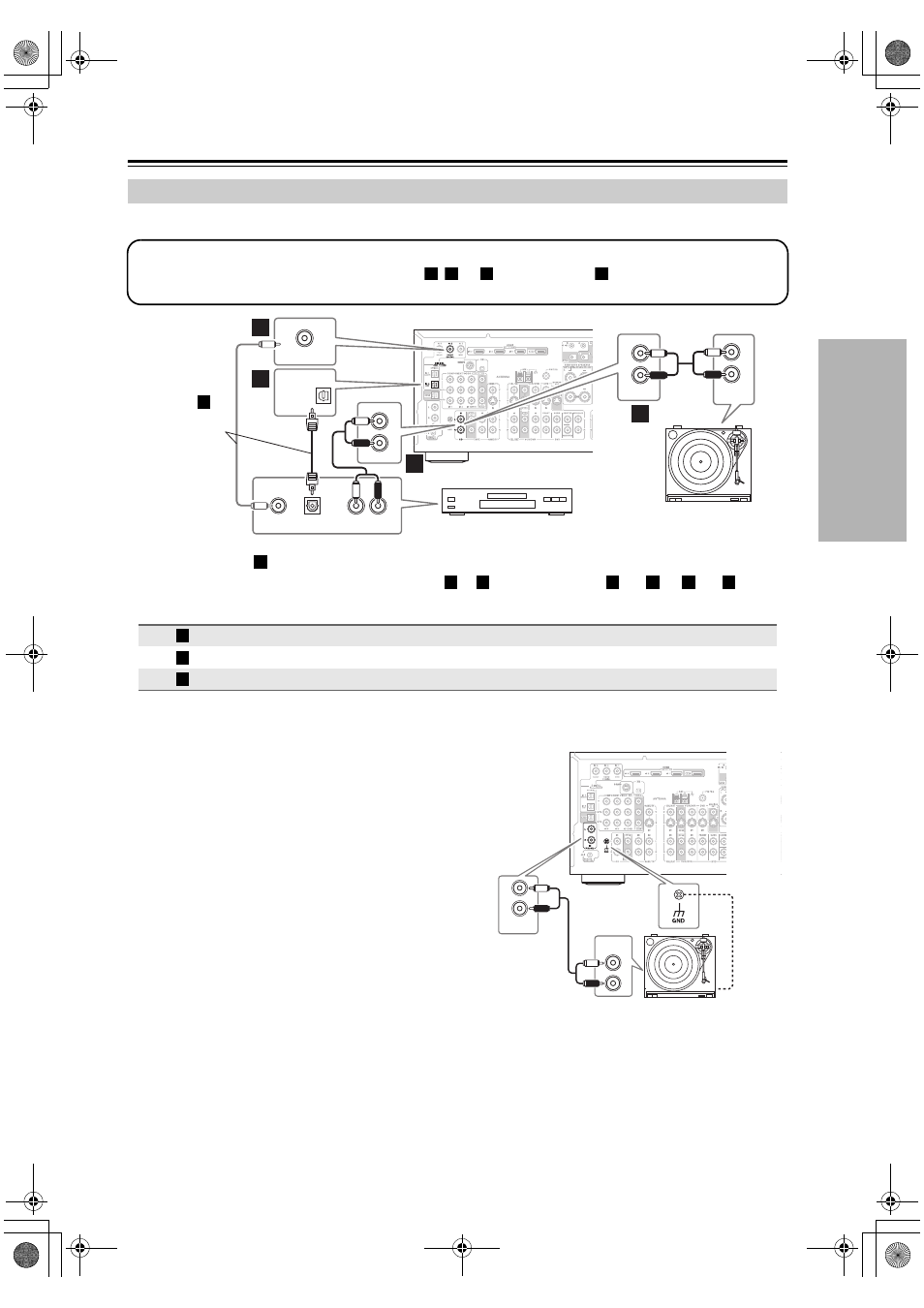

Connecting a CD Player or Turntable
Connection AV receiver Signal flow CD or turntable
CD IN L/R
⇐
Analog audio L/R output
DIGITAL COAXIAL IN 2 (VCR/DVR)
⇐
Digital coaxial output
DIGITAL OPTICAL IN 2 (CD)
⇐
Digital optical output
IN
L
R
L
R
CD AUDIO
OUTPUT
OPTICAL
OUT
AUDIO
OUT
L R
COAXIAL
OUT
L
R
IN
(VCR/DVR)
IN 2
COAXIAL
IN 2
(CD)
OPTICAL
CD
b
c
a
a
Step 1:
Choose a connection that matches your CD player (
, , or ). Use connection for a turntable with a built-in
phono preamp.
a b c a
Turntable (MM) with
built-in phono preamp
CD player
Connect one or
the other
Connection
must be
assigned (see
page 49)
b
a
b c a b a c
a
b
c
L
R
AUDIO
OUTPUT
PHONO
R
L
IN
