Page 34
34
Connecting the AV Receiver
—Continued

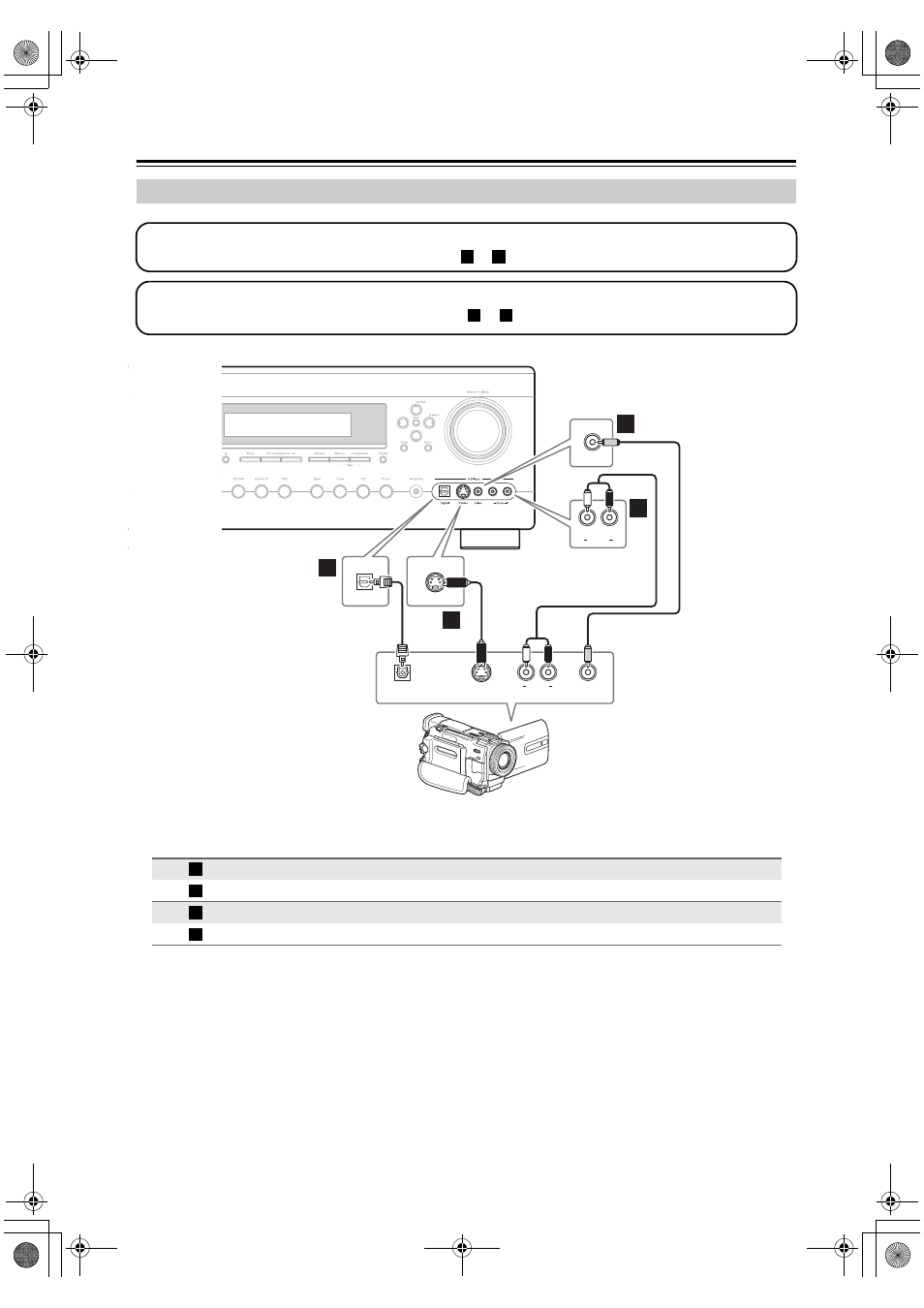

Connecting a Camcorder or Other Device
Connection
AV receiver
Signal flow
Camcorder or console
AUX Input S Video
⇐
S-Video output
AUX Input Video
⇐
Composite video output
AUX Input L/R
⇐
Analog audio L/R output
AUX Input Digital
⇐
Digital optical output
Step 1: Video Connection
Choose a video connection that matches the camcorder (
or
), and then make the connection.
A
B
Step 2: Audio Connection
Choose an audio connection that matches the camcorder (
or
), and then make the connection.
a
b
Digital
S Video
OPTICAL
OUT
Audio
Video
L
R
S VIDEO
OUT
AUDIO
OUT
VIDEO
OUT
L
R
AUX Input
AUX Input
AUX Input
AUX Input
A
a
b
B
Camcorder, etc.
A
B
a
b
