33
Connecting the AV Receiver
—Continued
• With connection , you can listen to and record audio from the game console or listen in Zone 2.
• To enjoy Dolby Digital and DTS, use connection . (To record or listen in Zone 2 as well, use and .)

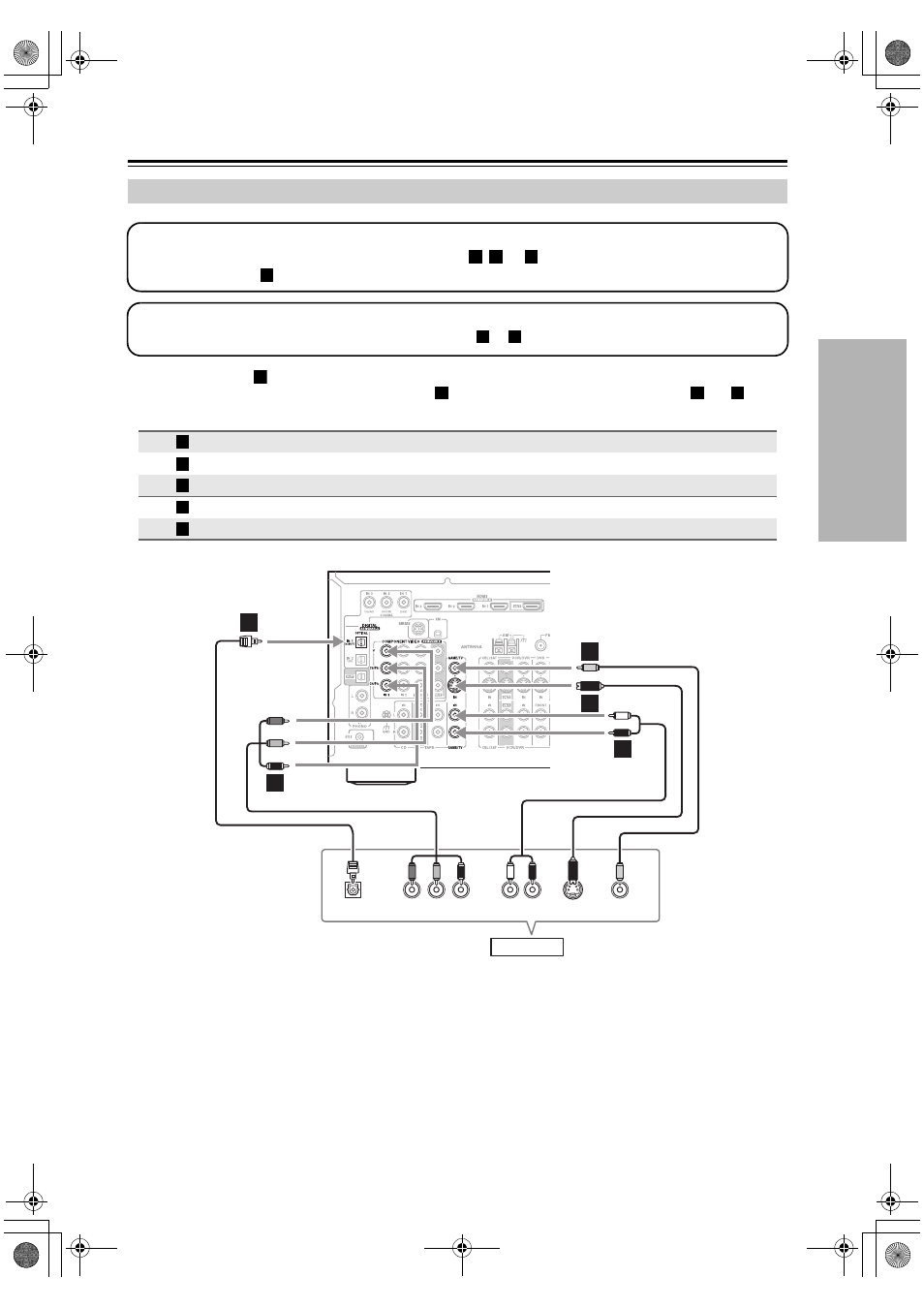

Connecting a Game Console
Connection AV receiver Signal flow Game console Picture quality
COMPONENT VIDEO IN 3
⇐
Component video output Best
GAME/TV IN S
⇐
S-Video output Better
GAME/TV IN V
⇐
Composite video output Standard
GAME/TV IN L/R
⇐
Analog audio L/R output
DIGITAL OPTICAL IN 1 (GAME/TV)
⇐
Digital optical output
Step 1: Video Connection
Choose a video connection that matches the game console (
, , or ) , and then make the connection.
If you use connection , you must connect the AV receiver to your TV with the same type of connection.
A B C
A
Step 2: Audio Connection
Choose an audio connection that matches the game console (
or ), and then make the connection. a b
a
b a b
A
B
C
a
b
Y P B
COMPONENT VIDEO OUT
P R S VIDEO
OUT
AUDIO
OUT
VIDEO
OUT
L R
OPTICAL
OUT
b
A
B
C
B
a
C
Game Console
