Connecting the AV Receiver
—Continued
Hooking Up the Multichannel DVD Input
If your DVD player supports multichannel audio formats such as DVD-Audio or SACD, and it has a multichannel
analog audio output, you can connect it to the AV receiver’s multichannel DVD input.

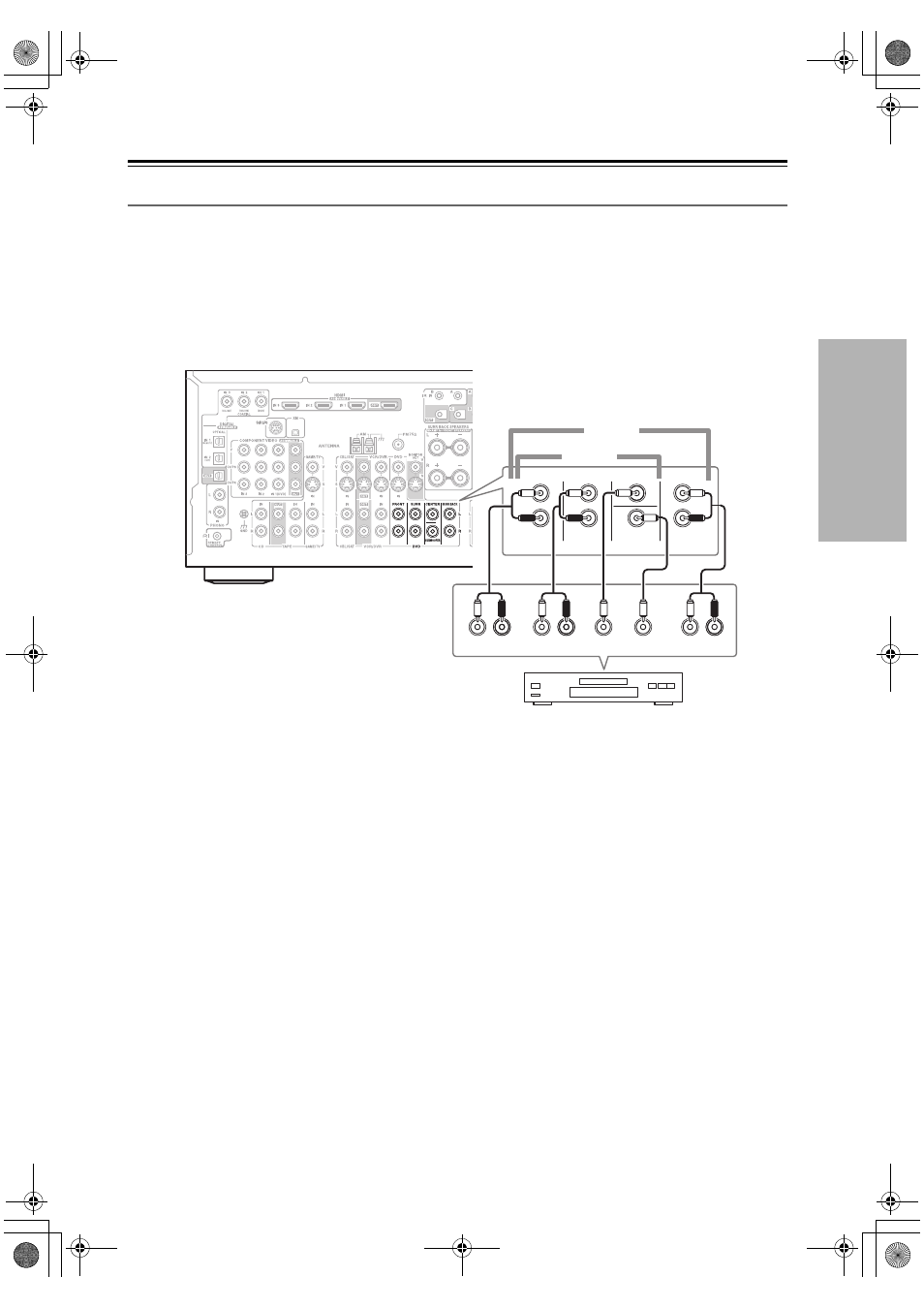

Use a multichannel analog audio cable, or several normal audio cables, to connect the AV receiver’s DVD FRONT L/R,
CENTER, SURR L/R, SURR BACK L/R, and SUBWOOFER jacks to the 7.1-channel analog audio output on your
DVD player. If your DVD player has a 5.1-channel analog audio output, don’t connect anything to the AV receiver’s
SURR BACK L/R jacks.
R
FRONT
L L R
SURROUND CENTER SUB
WOOFER
FRONT SURR
DVD
SUBWOOFER
CENTER
R
L
R
L
L R
SURR
BACK
SURR BACK
5.1 ch
7.1 ch
DVD player
