109

Zone 2

With the Zone 2 function, you can enjoy one input
source in the main room and a different source in another
room.
1) Use another amp (receiver, integrated amp, or power
amp) in Zone 2 and connect your Zone 2 speakers to it.
2) Connect your Zone 2 speakers to this AV receiver.

Note:
For speaker connections and related cautions, see
page 21.

Using Another Amp in Zone 2

With this hookup, you can enjoy 7.1-channel playback in
the main room and a different stereo source in Zone 2. If
you use a receiver or integrated amp in Zone 2
, the
volume for Zone 2 is adjusted on that unit. If you use a
power amp with no volume control in Zone 2
, the vol-
ume for Zone 2 is adjusted on this AV receiver.
Hookup
• Use an RCA audio cable to connect the AV receiver’s

ZONE 2 PRE OUT L/R jacks to an analog audio input
on the amp in Zone 2.

• Connect the Zone 2 speakers to the speaker terminals

on the amp in Zone 2.

Using Only Speakers in Zone 2

With this connection method, you can use 5.1 surround
sound in the main room and play a different AV source
in Zone 2. The volume for Zone 2 is set on the AV
receiver.

Hookup
• Connect your Zone 2 speakers to the AV receiver’s

ZONE 2 SPEAKERS terminals.

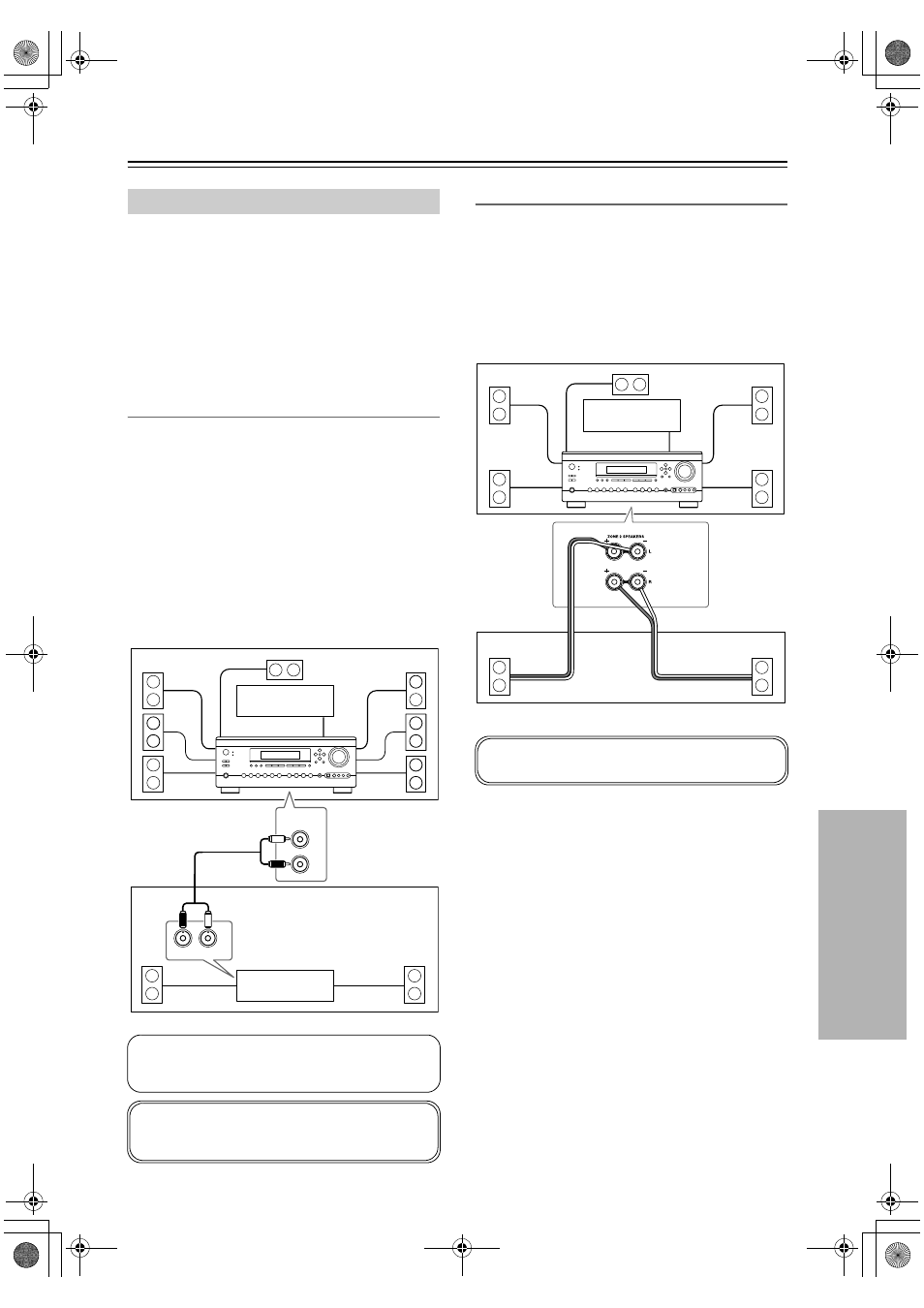

Connecting Zone 2

IN

R

L

ZONE 2

LINE OUT

R

L

Main room

Zone 2

TV

Receiver/integrated amp,

or power amp

AV receiver

If you’re using a receiver or integrated amp in Zone 2,
you don’t need to make any settings to use this hookup.
Proceed to “Using Zone 2” on page 112.

If you’re using a power amp with no volume control
in Zone 2, you must set the Zone 2 Out setting to Vari-
able (see page 111).

R

L

Main room

TV

Zone 2

AV receiver

You must set the “Powered Zone 2” setting to “Act”
(Activated) in order to use this hookup (see page 110).
