Chapter 2 - Hardware Installation

Ethernet Single Channel AUI/10BaseT Daughter Card

COMPONENT SIDE

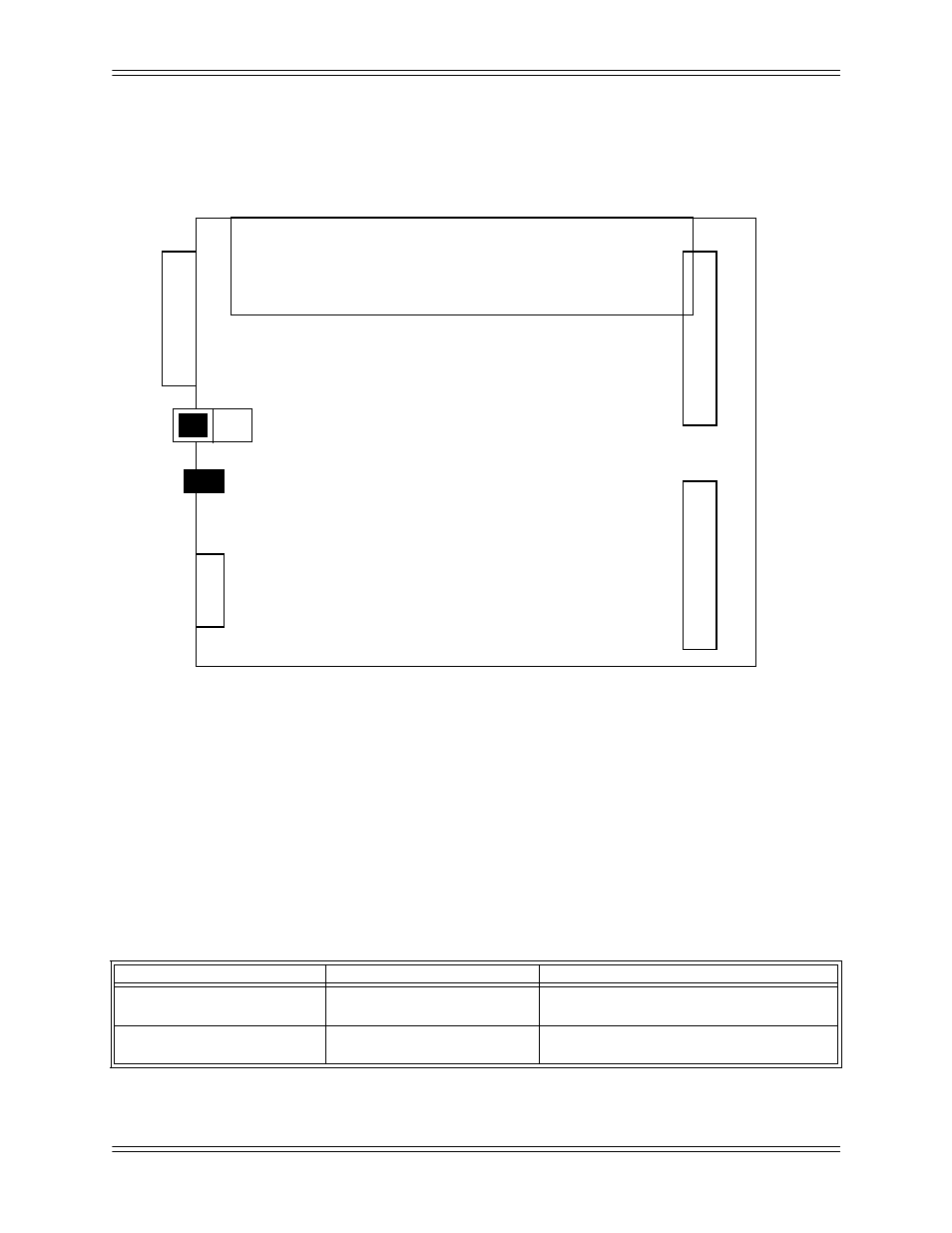

Figure 2-6. Ethernet Single Channel AUI/10BaseT Daughter Card

NOTE: LED3 is located on the solder side of the daughter card and is not shown in this illustration.

The Ethernet Single Channel AUI/10BaseT Daughter Card provides two types of connectors (DB15 & RJ45)
as shown in Figure 2-7 above. However, only one connection (either AUI or 10BaseT) can be used at a time.

Table 2-16. Ethernet Single Channel Daughter Card LEDs

DESIGNATOR

FUNCTION

DESCRIPTION

LED1

10BaseT Link

When illuminated, indicates that 10BaseT
link has been established.

LED3

+12 Volts

When illuminated, indicates that +12 Volts
for the AUI connection is present.

R
J
4
5

D
B
1
5

LED 1
