Section 6 Electrical System
Part No. 80-1214-3 6-35
QF2300
Automatic Shut-Off
An 8 minute lockout starts when the
compressor de-energizes. When the
ice drops away from the bin level
probe the ice machine will begin an
initial start-up cycle, provided the “8
minute lockout” has expired.
8 Minute Lockout
The bin level light will flash until the 8
minute lockout expires. After the 8
minute lockout time can be
overridden by moving the ON/OFF/
CLEAN toggle switch for ICE to OFF
and back to ICE.

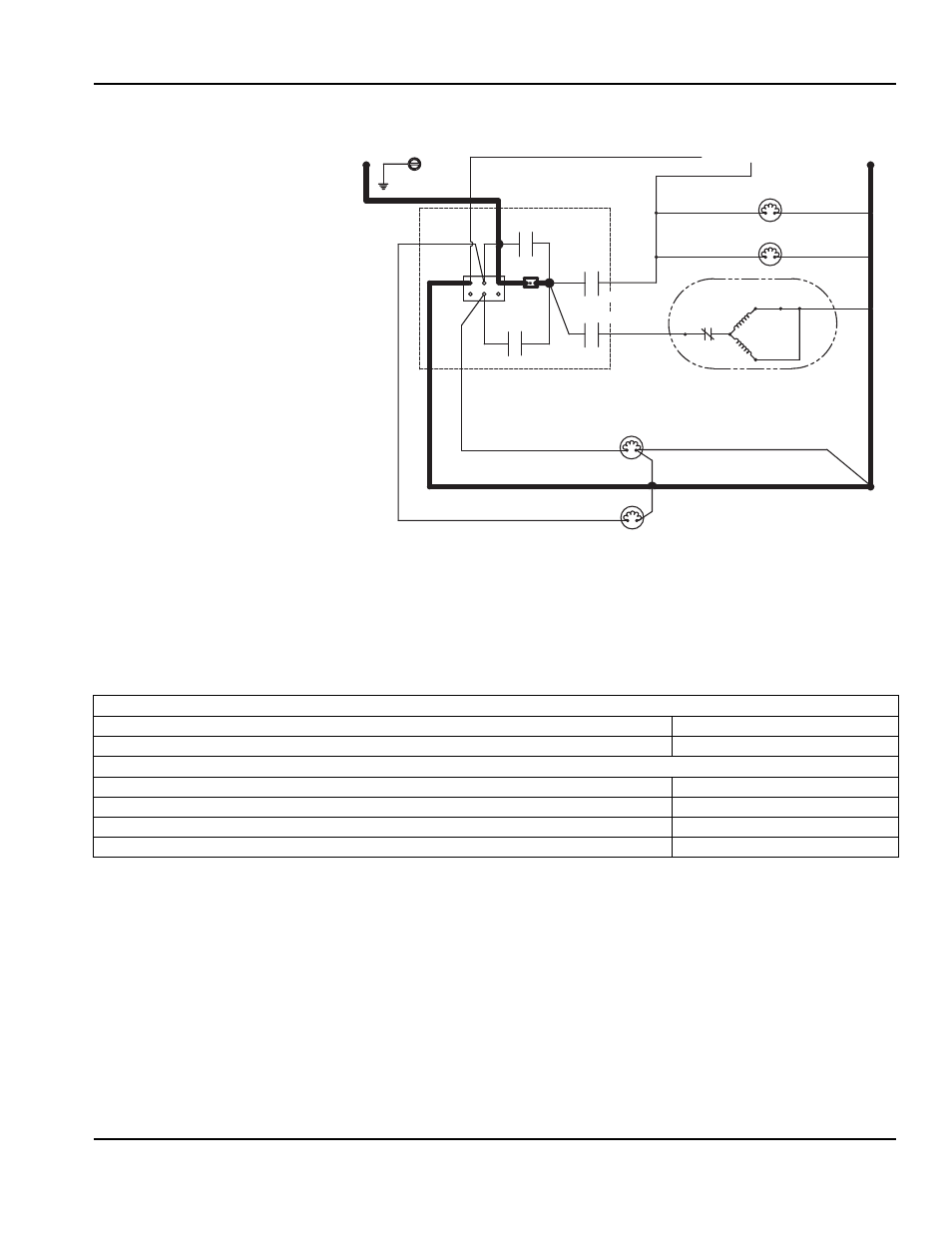

SV2113
RELAY
K1
RELAY
K2
RELAY
K3
RELAY K4
(25)
L1
L2
(54) (53)
LIQUID LINE
SOLENOID
CENTRIFUGAL
SWITCH
(65)
INTERNAL
OVERLOAD START
RUN
GEARMOTOR
WATER FLOAT
VALVE
DUMP VALVE
(56)
(55)
(22)
(51)
(52)
7 AMP
FUSE
GROUND
(58) (57)
EQUALIZATION
SOLENOID
C2
C1
(91)
(22)
Automatic Shut-Off (Until Ice No Longer Contacts Bin Level Probe)
Toggle Switch ICE
Bin Level Probe CLOSED ( Ice Contacting probe)
Control Board Relays
#1 Liquid Line Solenoid Valve OFF
#2 Dump Valve OFF
#3 Gear Motor OFF
#$ Water Float Valve Solenoid Coil OFF
Revised 8/2003
