Section 6
Electrical System
Part No. 80-1214-3
6-23
RFC2085

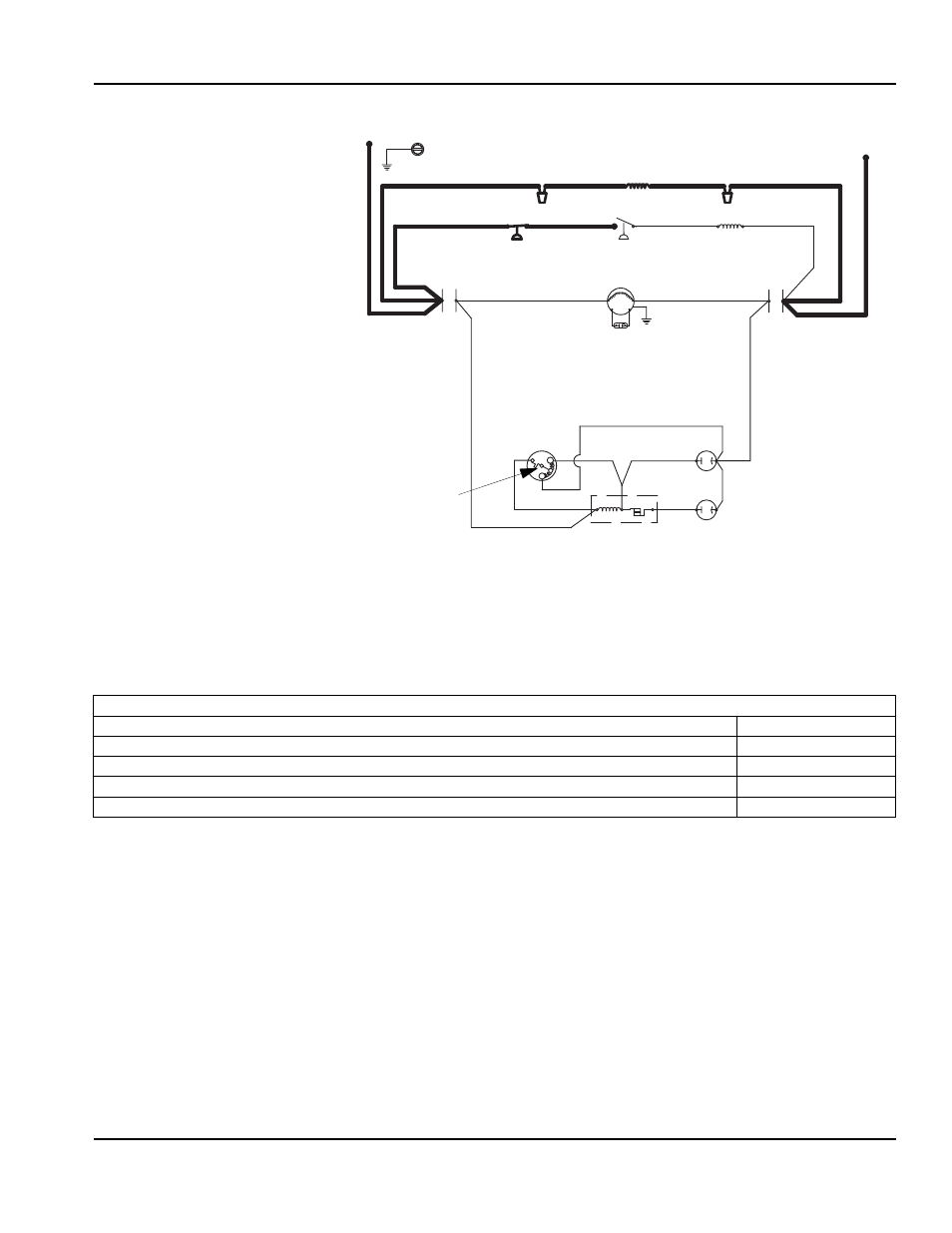

Automatic Shut-Off
When the refrigerant pressure is low
enough to open the low-pressure
switch, the contactor coil is de-
energized and the compressor and
condenser fan motor stop.
SV3040
RUN
CAPACITOR
(50)
(43)
(48)
COMPRESSOR
RUN
CAPACITOR
(47)
(46)
(49)
(44)
START
CAPACITOR
RELAY
S
C
R
5
2
1
(45)
OVERLOAD
CONTACTOR
CONTACTS
CONTACTOR
CONTACTS
CONTACTOR
COIL
LOW PRESSURE
CUT-OUT
HIGH PRESSURE
CUT-OUT
(96)
(94)
GROUND
L1
L2
COMPRESSOR
CRANKCASE
HEATER
(95)
(74)
FAN MOTOR
3. Automatic Shut-Off (45 Seconds)
High Pressure Control
CLOSED
Low Pressure Control
OPEN
Contactor Coil
OPEN / OFF
Compressor
OFF
Condenser Fan Motor
OFF
Revised 8/2003
