Electrical System
Section 6
6-18
Part No. 80-1214-3
QF2200
Initial Start-Up

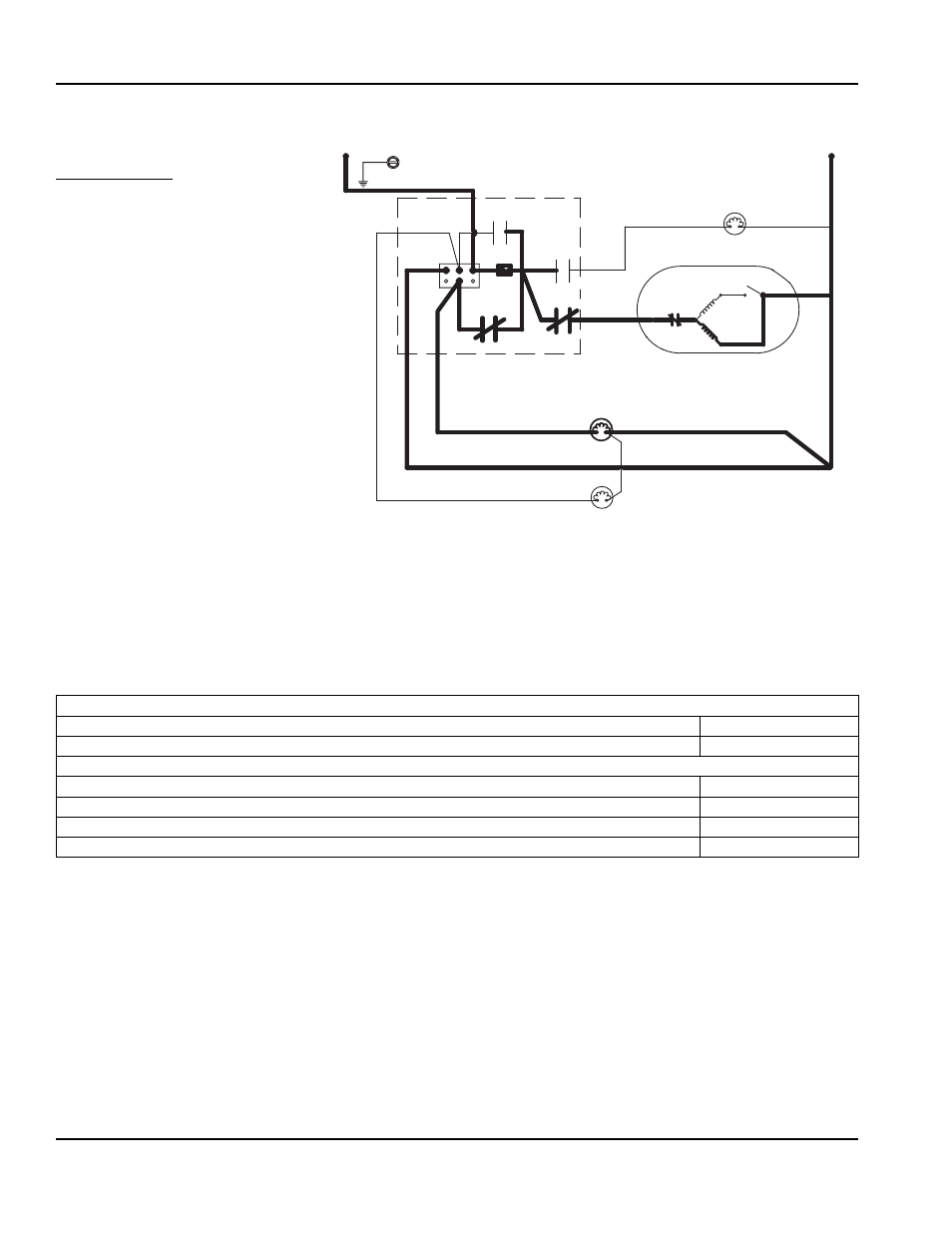

1B. WATER FILL
After 45 seconds the water float valve
solenoid is energized. When water
contacts the water level probe the
liquid line solenoid valve energizes
and remains on throughout the
Freeze Cycle.
SV3044
RELAY
K1
RELAY
K2
RELAY
K3
RELAY K4
(25)
L1
L2
(54)
(53)
LIQUID LINE
SOLENOID
CENTRIFUGAL
SWITCH
(65)
INTERNAL
OVERLOAD
START
RUN
GEARMOTOR
WATER FLOAT
VALVE COIL
DUMP VALVE
COIL
(56)
(55)
(22)
(51)
(52)
7 AMP
FUSE
GROUND
1B. Water Fill (Until Water Contacts Water Level Probe)
Toggle Switch
ICE
Bin Level Probe
Open (No Ice Contact)
Control Board Relays
#1
Liquid Line Solenoid Valve
OFF
#2
Dump Valve
OFF
#3
Gear Motor
ON
#4
Water Float Valve Solenoid Coil
ON
