Section 6
Electrical System
Part No. 80-1214-3
6-31
RFC2385

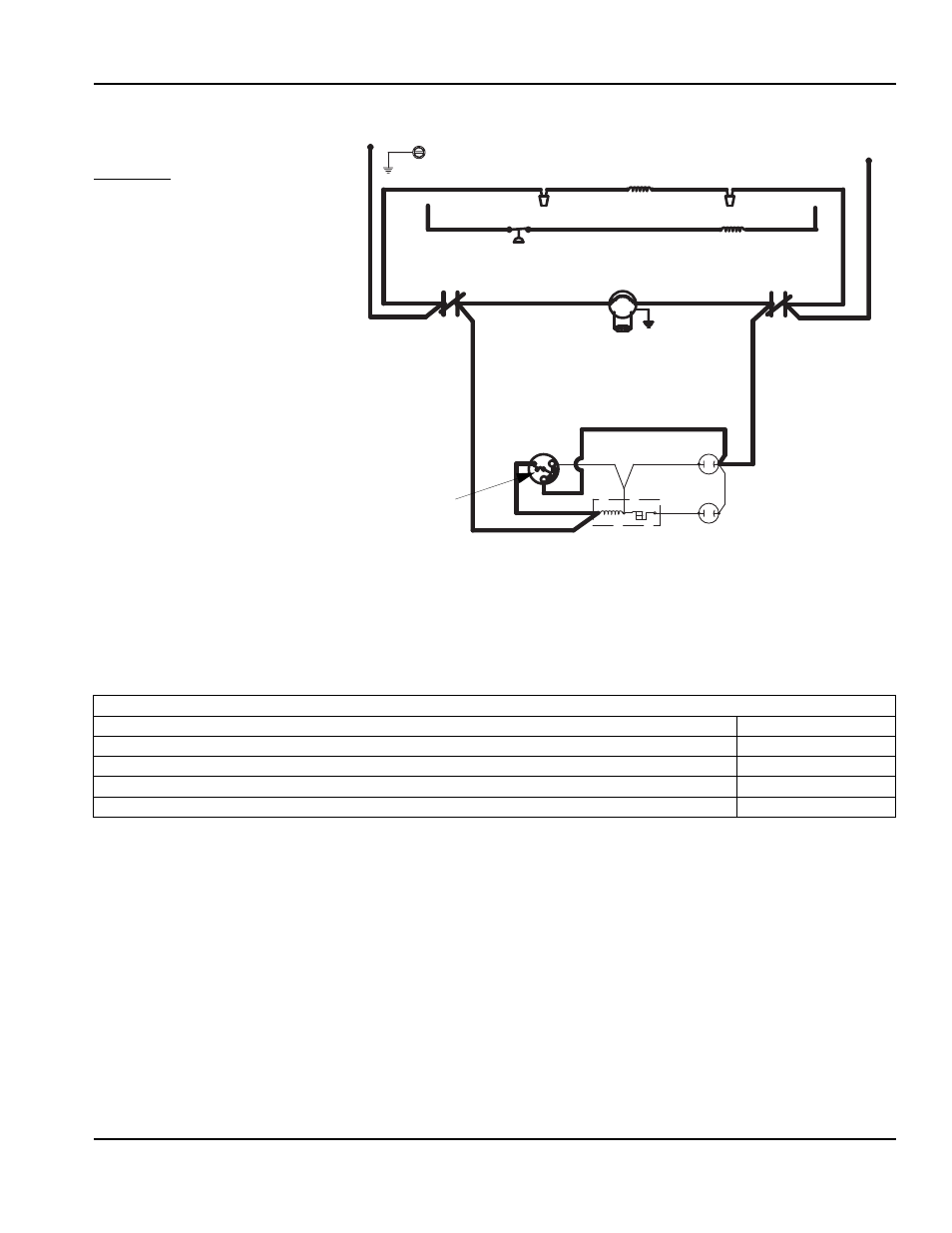

Freeze Cycle
2. FREEZE
The compressor and condenser fan
motor remain energized during the
entire Freeze Cycle.
SV2122
RUN
CAPACITOR
(50)
(43)
(48)
COMPRESSOR
RUN
CAPACITOR
(47)
(46)
(49)
(44)
START
CAPACITOR
RELAY
S
C
R
5
2
1
(45)
OVERLOAD
CONTACTOR
CONTACTS
CONTACTOR
CONTACTS
CONTACTOR
COIL
LOW PRESSURE
CUT-OUT
HIGH PRESSURE
CUT-OUT
(96)
(94)
GROUND
L1
L2
COMPRESSOR
CRANKCASE
HEATER
(95)
(74)
FAN MOTOR
(85)
C1
C2
2. Freeze (Until Ice Contacts Bin Level Probe for 30 Continuous Seconds)
High Pressure Control
CLOSED
Low Pressure Control
CLOSED
Contactor Coil
CLOSED / ON
Compressor
ON
Condenser Fan Motor
ON
