Page 79
73

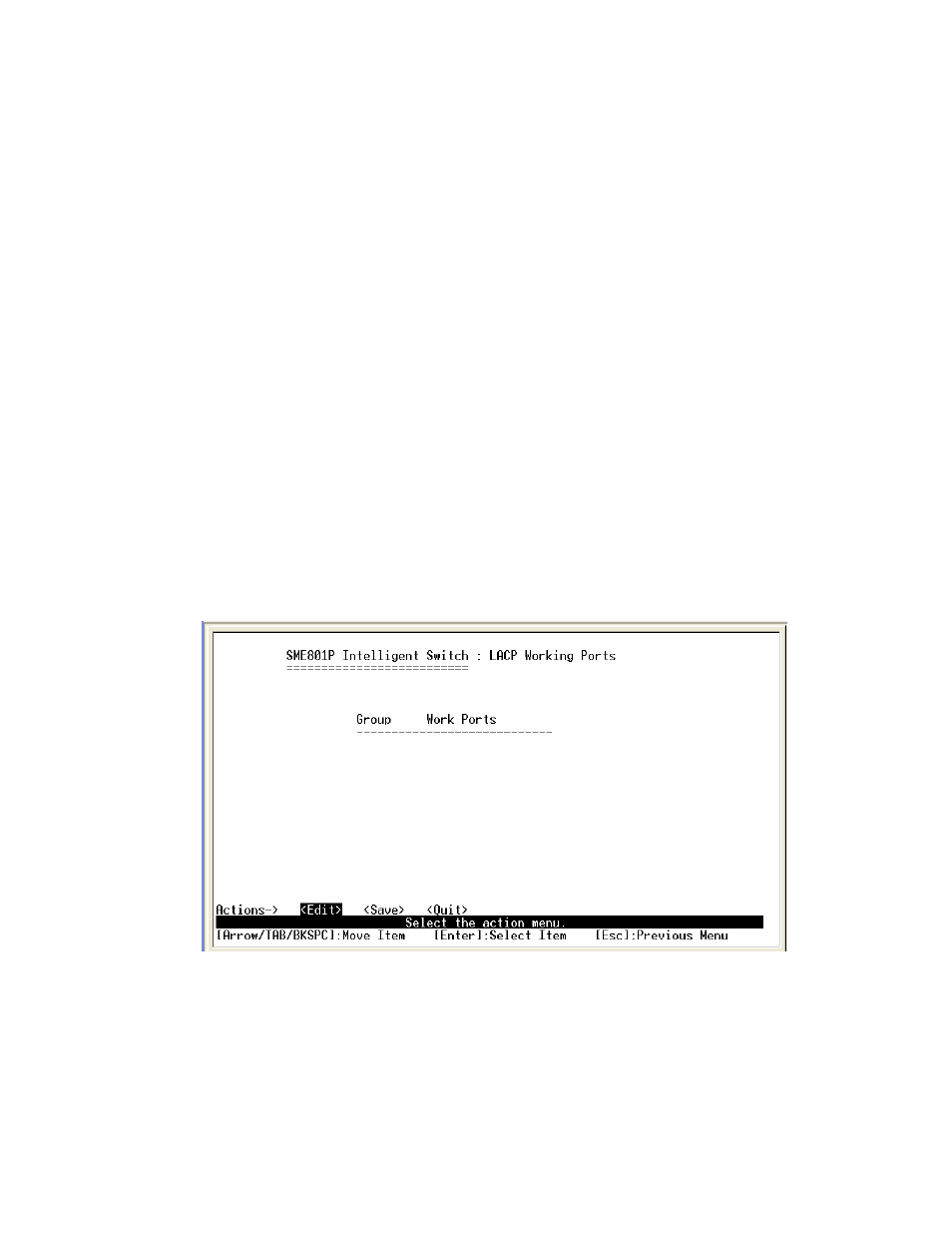

4-4-3-1. Working Ports Setting
Group: Displays the trunk group ID.
LACP: Press the Space key to enable or disable LACP (Link Aggregation
Control Protocol) support. If enabled, the group is an LACP static trunking
group. If disabled, the group is a local static trunking group.
LACP Work Port Num: The maximum number of ports that can be
aggregated at the same time. If the group is an LACP static trunking group,
the exceed ports is standby and able to aggregate if the work ports fail. If the
group is a local static trunking group, the number must be the same as group
ports.
NOTE: Before setting LACP support, you must first set the trunk group using
the Port / Trunk Configuration screen.
Actions->
action menu line.
