101

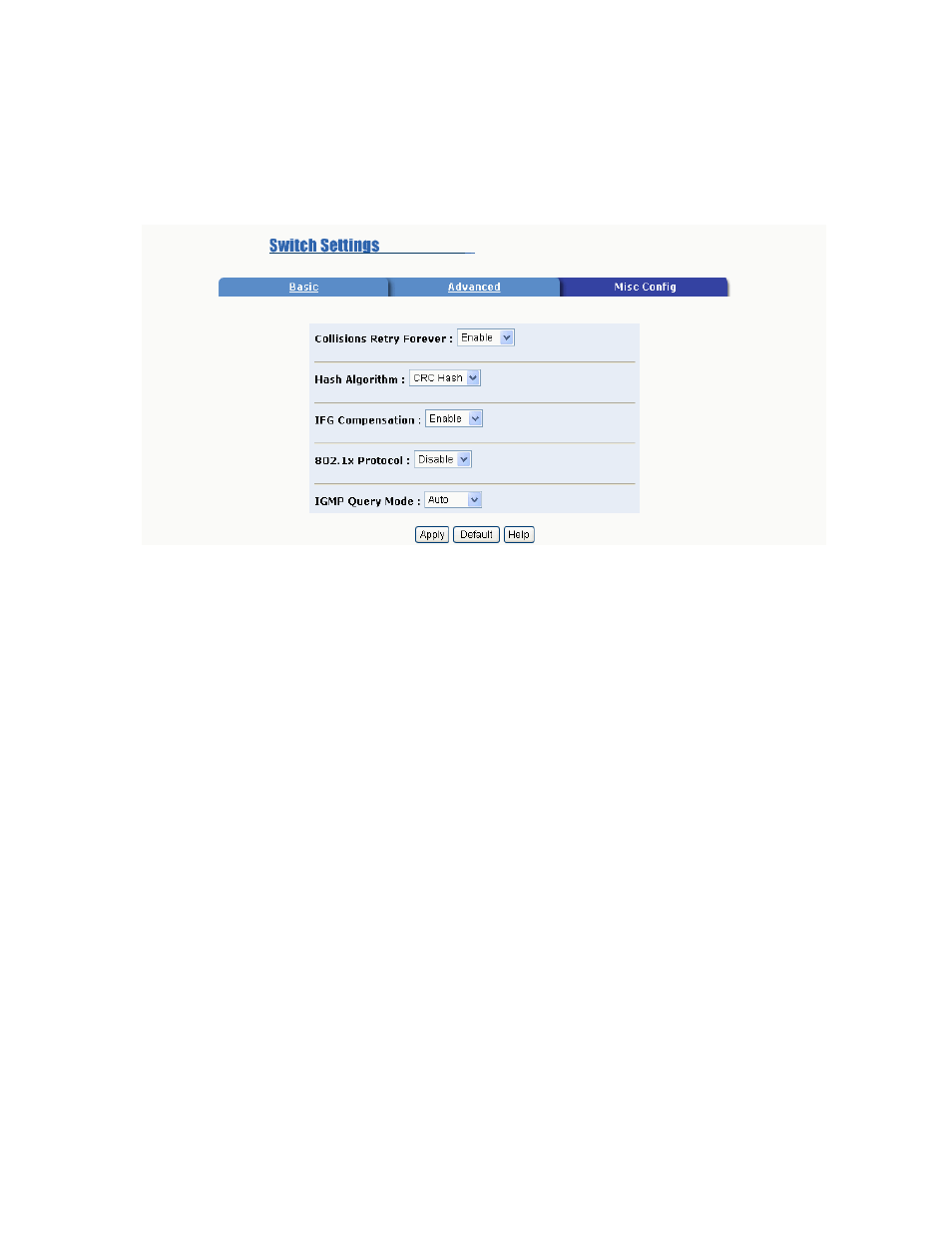

5-4-2-3. Miscellaneous Setting
Collisions Retry Forever:
Disabled – In half duplex, if a collision occurs, the switch will retry 48 times
and then drop frame.
Enabled – In half duplex, if a collision occurs, the switch will retry forever.
802.1x Protocol: Select enable or disable for 802.1x protocol.
Hash Algorithm: CRC Hash or Direct Map for MAC address learning
algorithm.
IFG Compensation: Select enable or disable for Internal Packet Gap time
compensation configuration.
IGMP Query Mode: Recognizes different queries from clients or servers to
decide which Query will be the first priority. The modes are:
Auto Mode: Chooses the switch that has the smallest IP address to be
set for the IGMP Query mode.
Enable Mode: Enables the switch to be the IGMP Querier.
Disable Mode: Disables all other switches from being the IGMP Querier.
