2.
Hardware Description
Front Panel
The Front Panel of the MIL-SME801P switch consists of eight
10/100BASE-TX RJ-45 ports and one 100BASE-FX fiber port, one
LED-Indicator for Power, one LED-Indicator for the Fiber port, and 3
LED-Indicators for each of the RJ-45 ports on the switch.

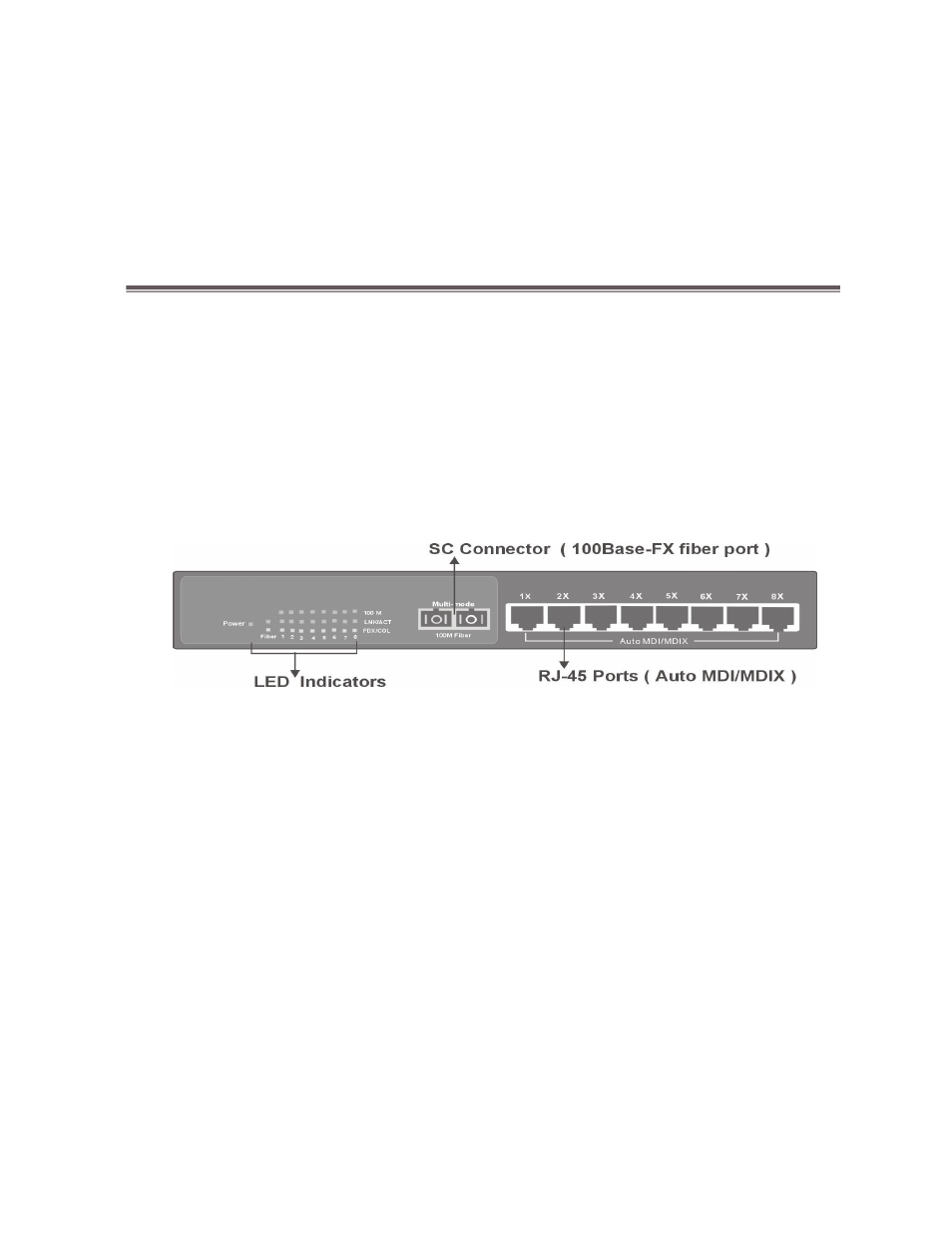

Figure 2-1. Front panel for MIL-SME801P
RJ-45 Ports (Auto MDI/MDIX): The MIL-SME801P comes with eight
10/100Mbps N-way auto-sensing for 10BASE-T or 100BASE-TX UTP
connections.
100BASE-FX Fiber Ports: The MIL-SME801P comes with one fixed SC
connector.
Console Port: Console management can be done through the Console Port.
It requires a direct connection between the switch and an end station (PC) via
a RS-232 cable.
