132

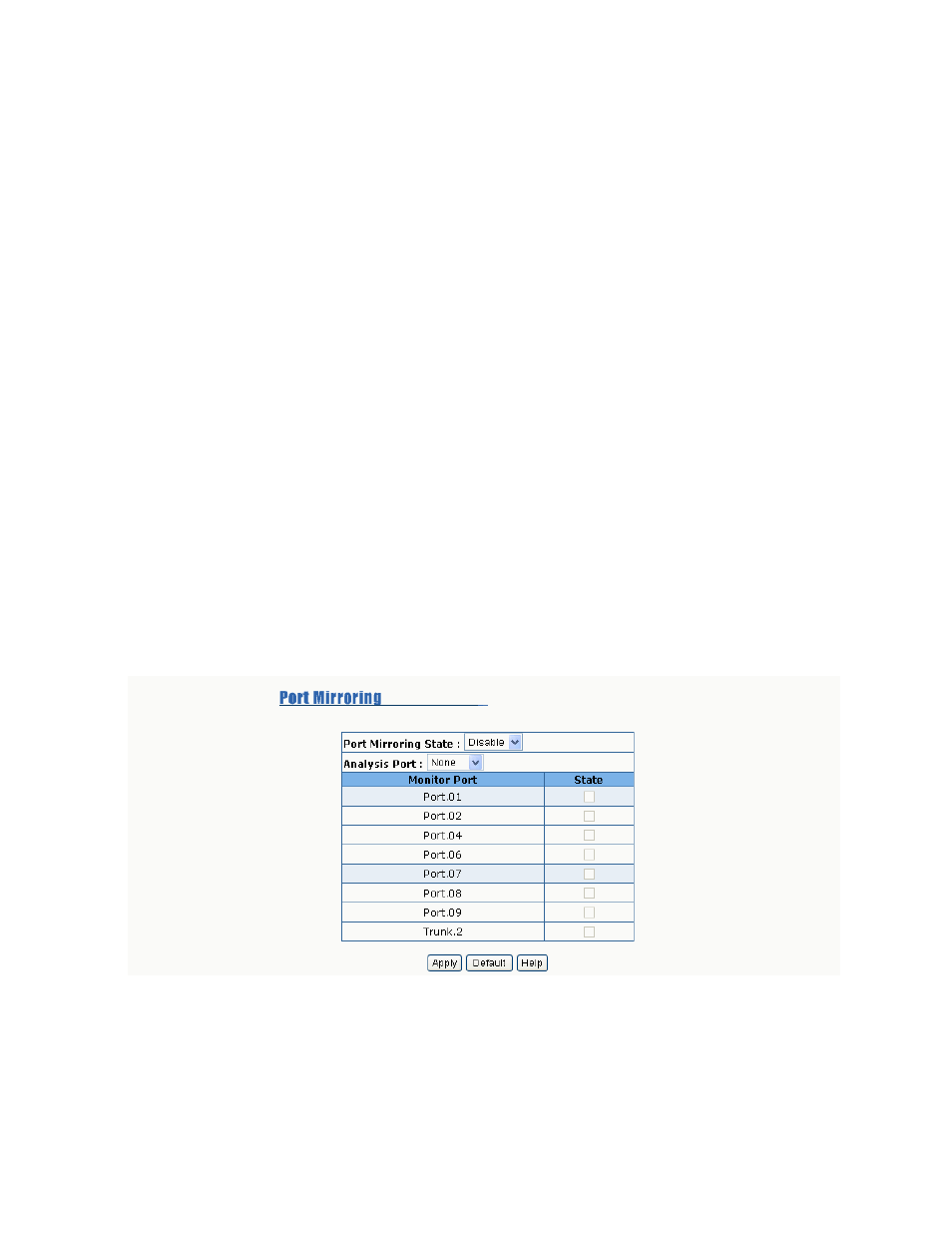

5-4-9. Port Mirroring
The Port Mirroring feature is disabled by default. Selecting enable from the
pull down menu will cause the selected traffic from the selected monitor ports
to be mirrored to the selected analysis port. Press the Apply button to submit
the changes.
Port Mirroring State: Enables or Disables the port mirroring function.
Enabled states include RX, TX or Both.
Analysis Port: All mirrored traffic is sent out this port.
Monitor Port: The ports you want to mirror. All source port traffic will be
copied to a mirror port. You can select a maximum of 8 source ports in the
switch. If you want to disable the function, you must select monitor port to
none.
