38

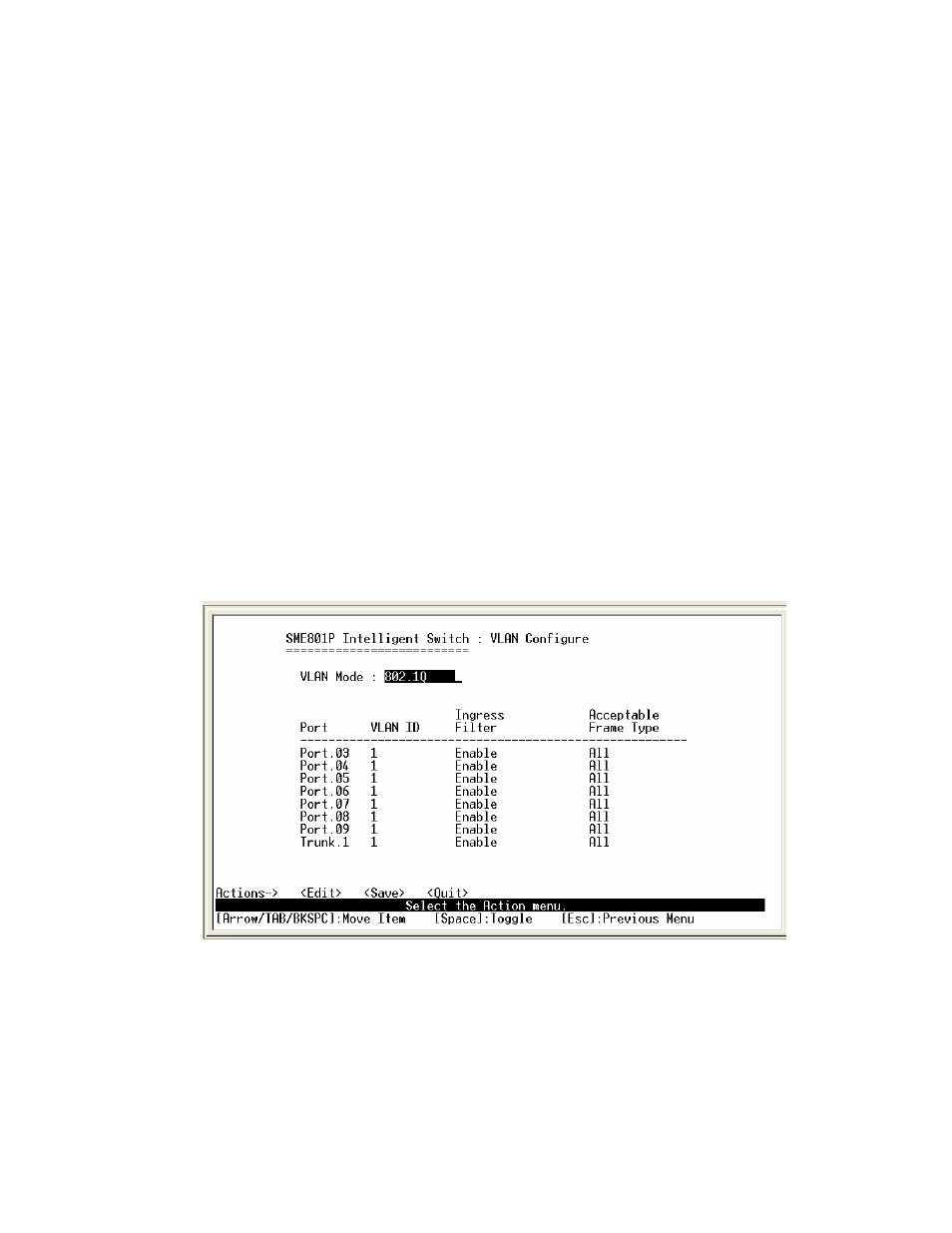

PVID (Port VID): Set the port VLAN ID that will be assigned to untagged
traffic on a given port. This feature is useful for accommodating devices that
you want to participate in the VLAN, but don’t support tagging. Only one
untagged VLAN is allowed per port. Other VLANs need to be tagged.
Ingress Filter 1: If this is set, the port will only forward packets with VID
(VLAN ID) matching this port’s configured VID. Press the Space key to
choose forward or drop the frame with the VID not matching this port’s
configured VID.
Ingress Filter 2: Drop untagged frame. Press the Space key to choose drop
or forward the untagged frame.
Actions->
: Configures all items. When finished, pressing ESC returns to the
action menu line.
: Saves all configured values.
: Exits this page and returns to previous menu.
