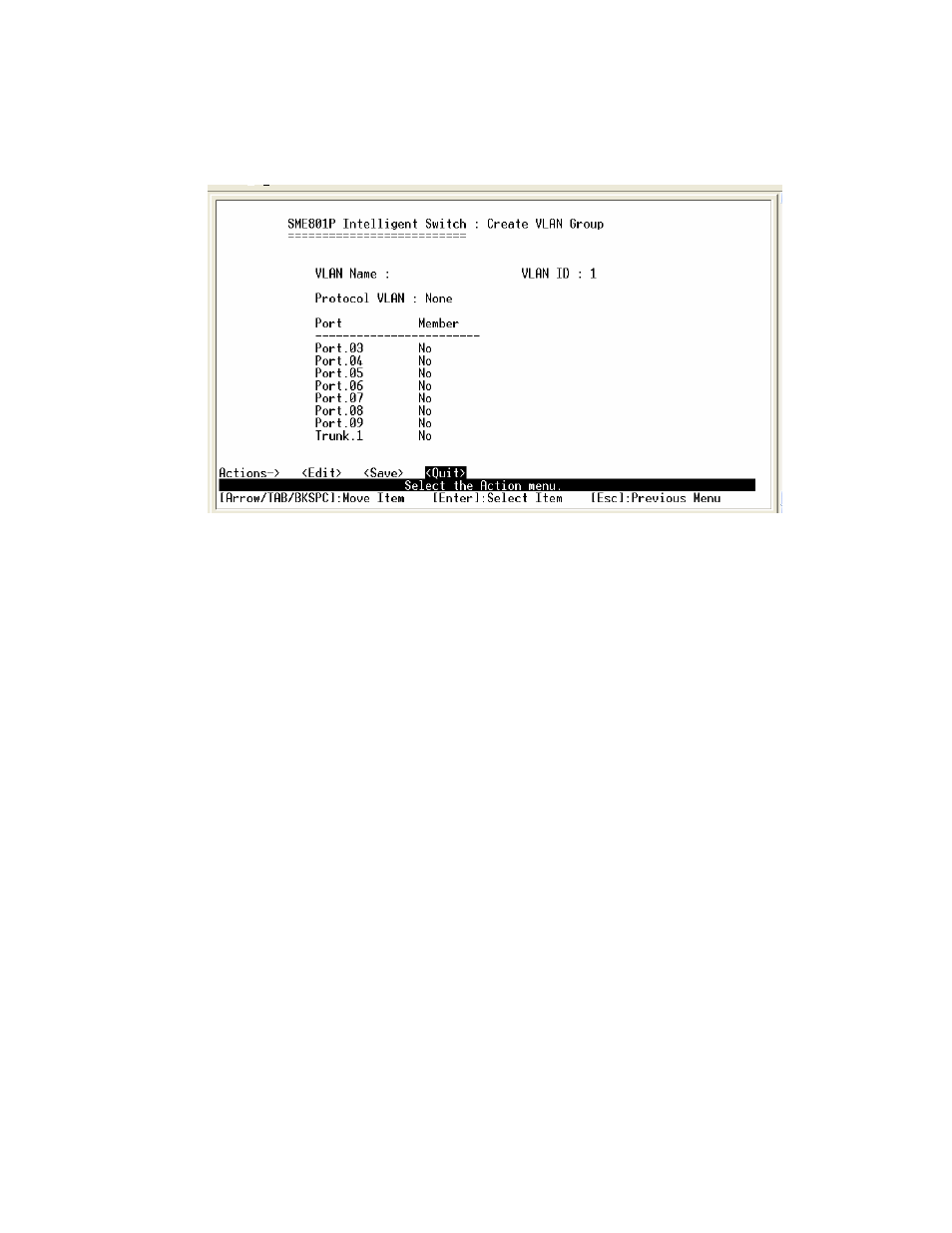

Create 802.1Q VLAN
Select
member ports to it.
1. VLAN Name: Type a name for the new VLAN using 15 alphanumeric
characters and no spaces.
2. VLAN ID: Type a VID (between 1~4096). The default is 1. There are 256
VLAN groups provided to configure.
3. Protocol VLAN: Press the Space key to choose the protocol type.
4. Member: Press the Space key to choose the VLAN member. There are
three selections:
UnTagged: This port is the member port of this VLAN group and
outgoing frames are NO VLAN-Tagged frames.
Tagged: This port is the member port of this VLAN group and outgoing
frames are VLAN-Tagged frames.
NO: The port is NOT member of this VLAN group.
5. Press “ESC” to go back to the action menu line.
