20

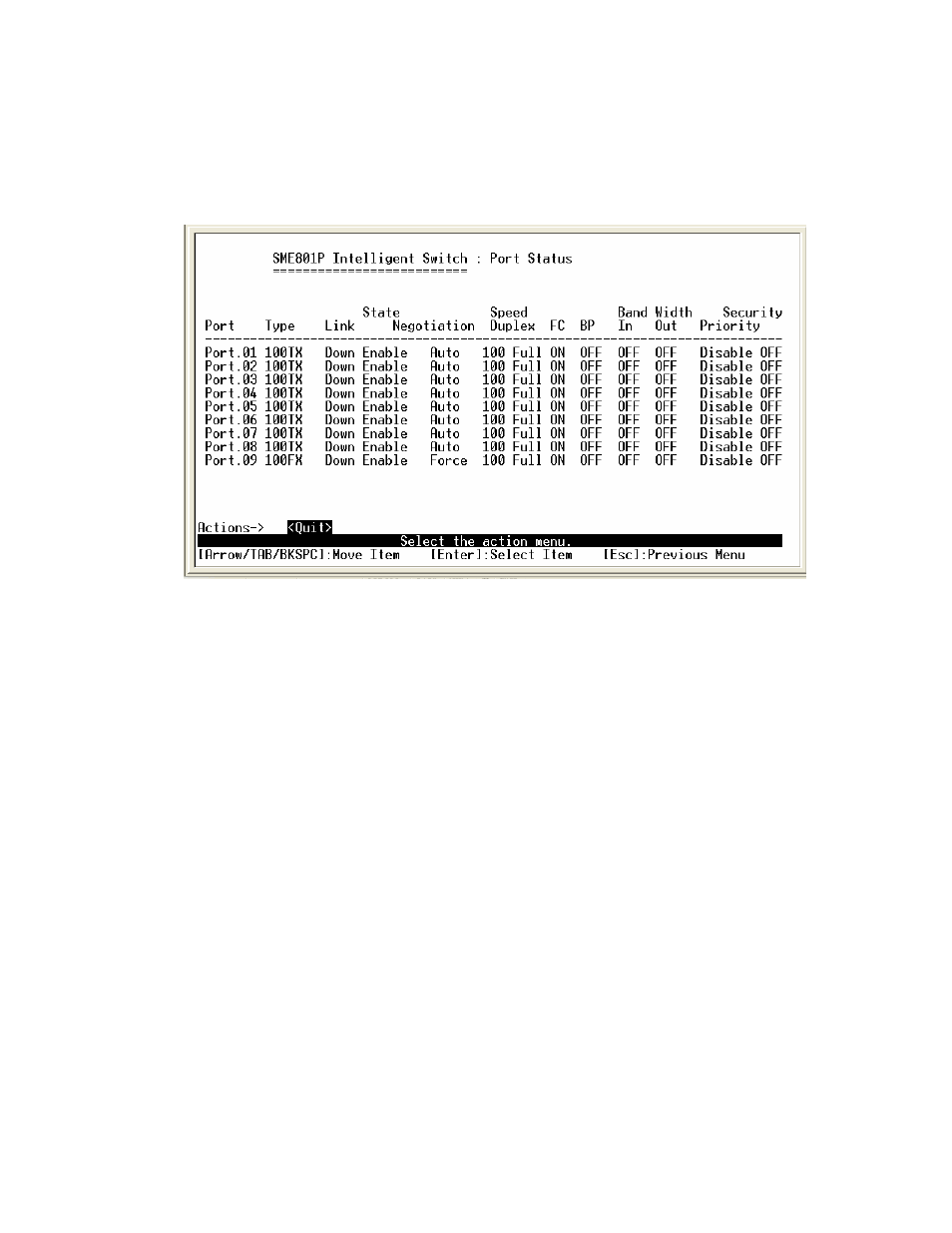

4-2-1. Port Status
Type: Displays the port type of 10T, 100TX or 100FX.
Link: Displays the port's link. “Down” the port has no link, and “Up” the port
has a link with the remote device.
State: A port that is enabled will be displayed as “Enable”. A port that is
disabled will be displayed as “Disable”.
Negotiation: Displays the state of Auto-negotiation as either "Auto" or
"Fixed".
Speed / Duplex: Displays the port speed and duplex mode.
FC: Displays the flow control for the port as being either on or off.
BP: Indicates if Back Pressure capability is enabled or disabled, only valid for
HDX mode of operation.
Bandwidth In: Indicates the Ingress bandwidth rate limiting speed in
increments of 100 kbps, 0 indicates port is at full bandwidth in.
Bandwidth Out: Indicates the Egress bandwidth rate limiting speed in
