Gianni Industries GEM DG-25 - Manual

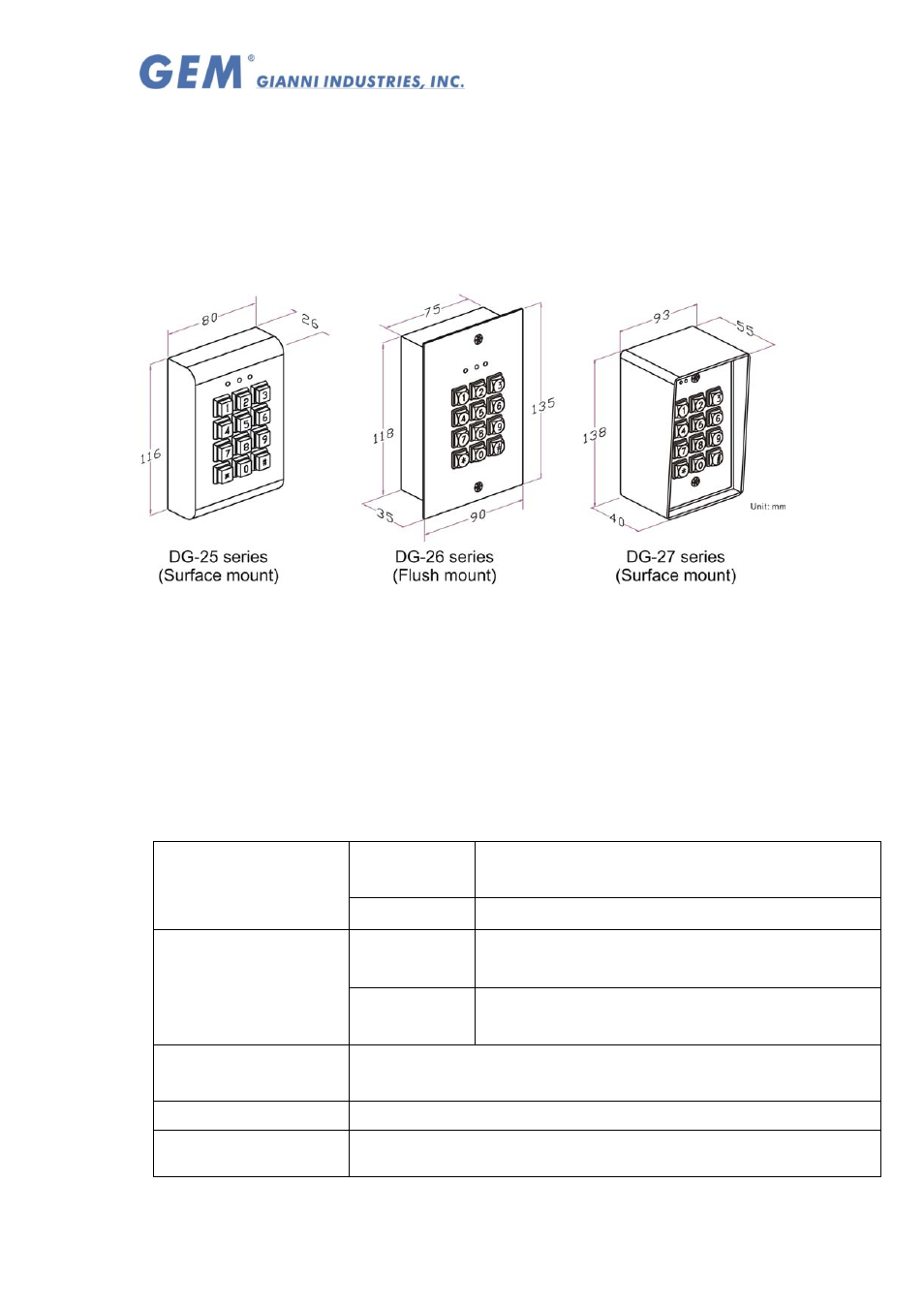

DG-25/26/27
Digital Keypad
Operation Manual
1. Product Features:
 Allows up to 49+50 PIN codes (5 digit code)
 Dual relays programmable On/Off for locking and other security device.
 Fully Programmable via keypad and master code
 Door Reed Switch Input for Anti-Trailing
 3 LED display with audible indication
 Non-Volatile Memory
 Invalid PIN Lock-out
 Durable Stainless Steel housing
 With vandal resistant screws
2. Specifications:
DG-25/26/27
DG-25/26/27WP
12 VDC
Operating Voltage
DG-25/26/27LD 12~24 VDC
DG-25/26/27
DG-25/26/27WP
Holding: 10mA , Pull in: 40 mA/12VDC
Current Draw
DG-25/26/27LD
Holding 40mA , Pull in 70 mA/12VDC
Holding 60mA , Pull in 100 mA/24VDC
Keypad
12-digit (0~9,＊,＃)
LD series (with backlite buttons) , WP series (with waterproof metal buttons)
LED Status Indication 3 LED indicators display (Red/Yellow/Green)
Input
1 contact for Request-To-Exit button (N.O.)
1 contact for door reed switch
Copyright Gianni Industries, Inc. All Rights Reserved.
P-MU-DG25 Ver. D Publish:2010.08.12 Page: 1/ 3
