Copyright All Rights Reserved.
P-MU-DG100-4C Ver.D Publish:2009.12.02 Page: - 1 -/ 4

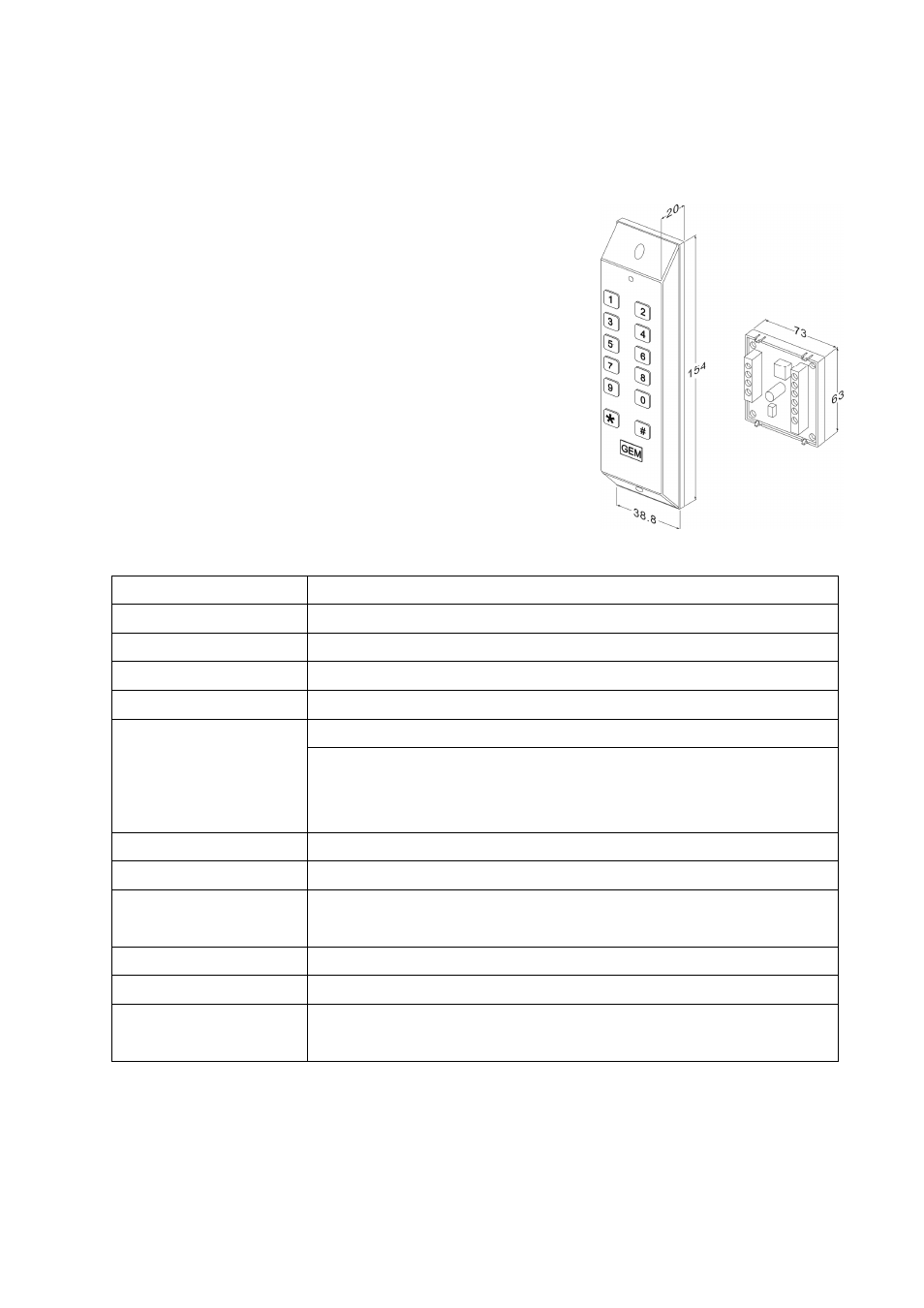

DG-100

Split Digital Keypad

Operation Manual

Ⅰ. Features

1.

Memory volume up to 99 PINs

2.

Split controller and keypad for high security

3.

Up to 29-digit-fuzzy-code password protected design

4.

Deftly dimension for narrow jamb

5.

1 LED indicator & buzzer for status indication

6.

Fully programmable via keypad

7.

Lockout function

8.

Metal casing for enhanced safety and durability

9.

Keypad with beep sound

Ⅱ. Specifications

Operating Voltage 12VDC

Current Draw Holding: 15mA, Pull in: 70mA @12VDC

Keypad 6X2 matrix keypad (0~9,*,#)

Output Relay(Dry contacts: N.O./N.C./Com.)

Relay Electric Current 1A MAX @24VDC ;0.5A @ 120VAC

99 PINs

Memory Volume

*000:master code

*001~099:PINs (user codes)

*100:relay strike time

Relay Strike Time 01~99 seconds or Toggle Mode (00)

LED Status Indication 3 colors LED indicator display (Red/Yellow/Green)

Lockout Function

The controller will be lockout for 60 seconds upon 30 consecutive master

codes or invalid PINs attempt. (Keypad without beep sound)

Ambient Humidity 5%~95% (Non-condensing)

Operating Temperature -20℃~+70℃

EPROM

Non-volatile memory allows remaining all setting codes in the event of total

power failure.
