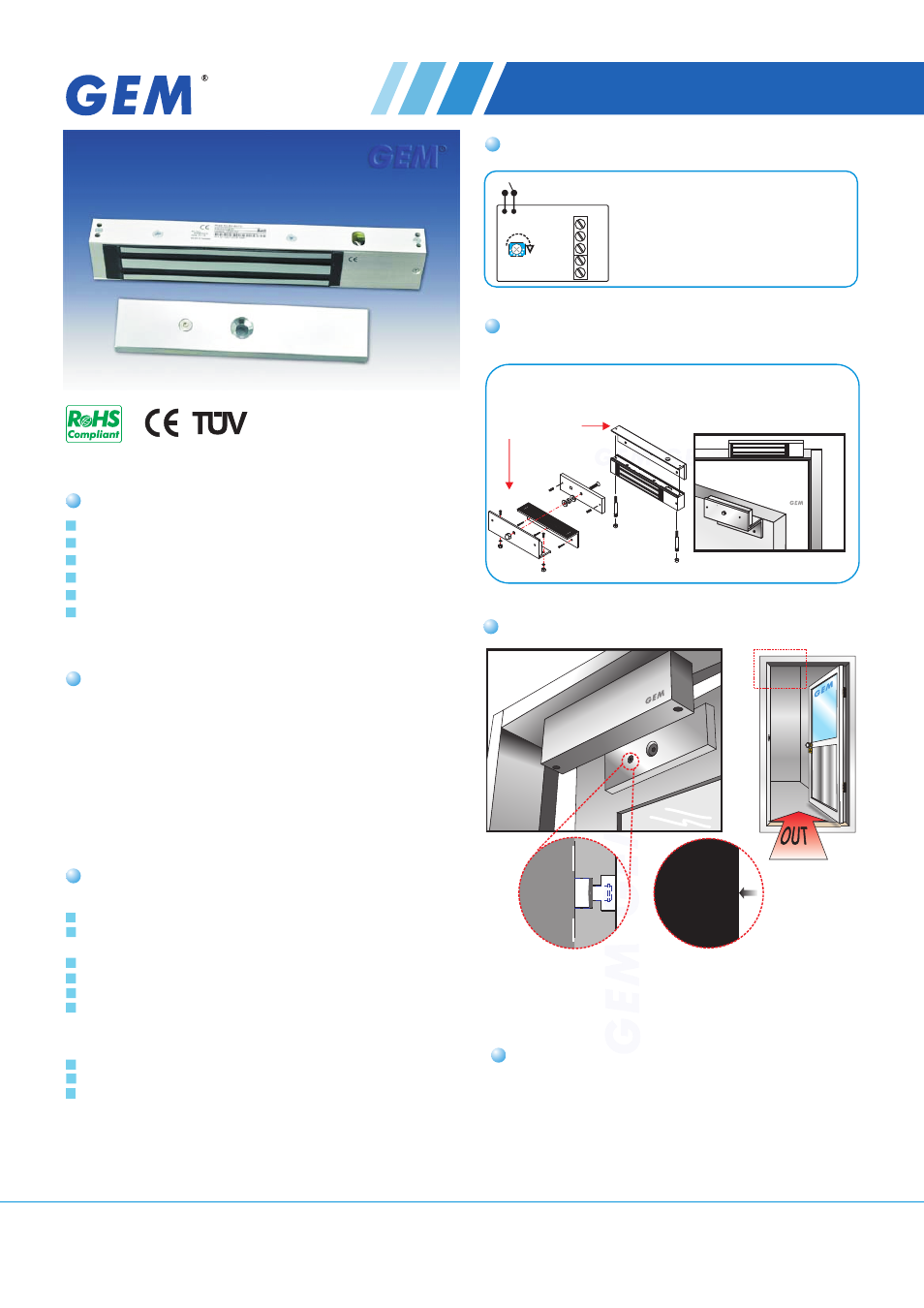

Gianni Industries EM-600 - Manual

GIANNI INDUSTRIES, INC.
Operating Features
Specifications
Operating Voltage: 12/24 VDC
Current Draw: 500mA/12VDC;250mA/24VDC
(at 20 degree centigrade)
Operating Temperature : -10~55ºC (14~131ºF)
Humidity: 0~95% non-condensing.
Holding Force: Up to 600 lbs (272 Kg)
Dimensions:
Magnet:(L) 250, (W) 42.5, (D) 25 mm
Armature Plate:(L) 185, (W) 38, (D) 12 mm
Mounting Plate:(L) 250, (W) 25, (D) 5 mm
Finishes for magnet and armature plate: Zinc Plated
Epoxy Potting Compound: E87252 (S), UL94V-0
Net Weight: 2.0 Kg
EM-600/EM-600TD
Mini Electromagnet Lock
Copyright © Gianni Industries, Inc. All rights reserved.
DM-CA-EM-600 Ver. A Published on 2010.02.09
Features
High reliability
Fail- safe ( Power to Lock).
Aluminum
anodized casing.
MOV provides spike and surge protection.
Dual voltage 12 or 24 VDC (selectable).
Anti-Residual magnetism function
Statement
The EM-600 are high quality and safety range of standard fail-
safe electromagnet locks that is simply, works well in order to
effectively secure with doors. The EM-600 are surface mounted face
to face locks offering up to 600 pounds holding force which this lock
is recommended for applications which require higher levels of
access and egress control and is suitable for fire doors and
emergency exit doors. The EM-600 Series are designed for single
doors and are suitable for out-swing applications.
Optional Brackets
With LZ-bracket for in-swing doors
LZ-EM-600
Regular Installation
The product is warranted against defects in material and
workmanship while used in normal service for a period of 5
years from the date of sale to the original client. The GEM
policy is one of continual development and improvement;
therefore GEM reserves the right to change specifications
without notice.
Warranty
EM-600TD : Relock time delay
N.O.
COM.
N.C.
Power
Input
S
P
D
T r
e la
y
1 A
/2
4
V
D
C
Timer Adjust
Shorten
Trigger
Magnet Armature
(On Power)
Magnet Armature
(Power Off)
Anti-residual statement
Our electromagnet locks feature Anti-Residual Magnetism
(ARM) which ensures the door can be opened without any
resistance from left over magnetism imparted to the armature
plate
Ensures the automatic lock mode
after the door is closed properly and it
can be adjusted from 1 to 80 seconds.
No. 13, Zhongxing Rd., Tucheng Dist., New Taipei
City 236,Taiwan (R.O.C.)
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: [email protected]
Website: gianni.tw
