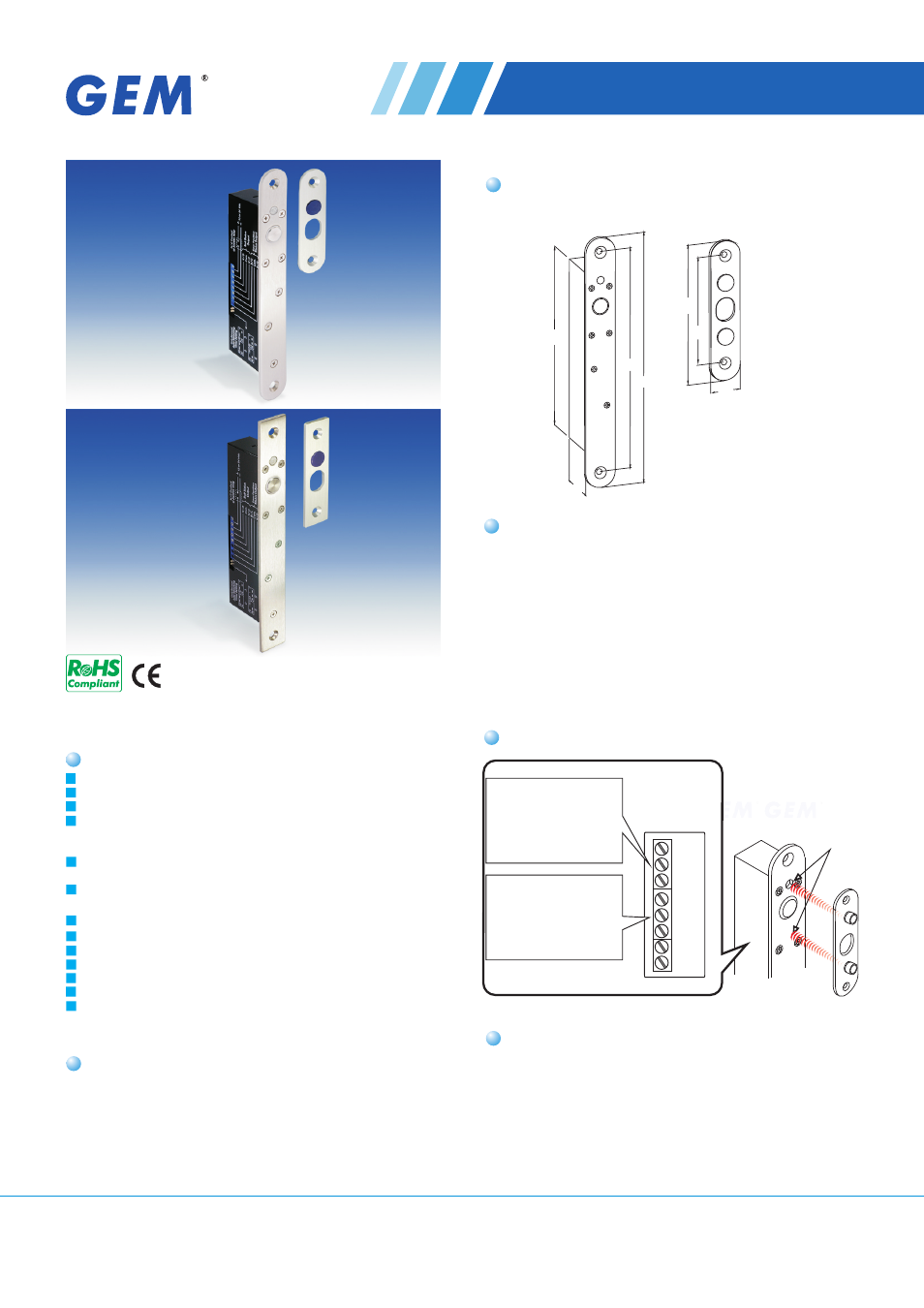

Gianni Industries EB-195 - Manual

Statement
Dimensions
Specification
DPS & BSS output
EB190, EB195
ELECTRIC DROPBOLT
Fail-Safe Version (Power to Lock)
Operating Voltage: 12 /24VDC (self-regulating)
Voltage Tolerance: ±10%
Current Draw: Pull in: 0.9A/12VDC; 0.45A/24VDC
Holding: 0.15A/12VDC; 0.1A/24VDC
(at 20°C)
BSS output:Magnetic bolt status output (SPDT rated
3A/30VDC) indicates bolt locked or unlocked status.
DPS output: Indicates door position (open or closed),
Reed rated 0.25A/30VDC.
Operating Temperature: -10~+45°C
Humidity: 0~95% non-condensing.
Tested over 500000 cycles.
Built-in logical circuitry
Auto-relocking Time Delay : 0, 3 ,6 ,9 seconds
Faceplate Material: stainless steel
Net Weight: 0.6 Kg
Unit: mm
1
4
9
4
1
185
115
90
210
25
Sensor
+
-
N.O.
N.C.
COM.
COM.
N.C.
N.O.
Door Position Status
output: Indicating door
position (open or
closed),Reed rated
0.25A/30VDC.
Bolt Status Switch
sensor output:
Indicating bolt status
(Locked or Unlocked)
SPDT rating:
3A/30VDC
The EB190 electric dropbolt is the upgraded
version of EB180. The 25mm-wide faceplate is
designed for installation on virtually all types of
doors and frames. The bolt status switch sensor
and door position status sensor have been added
to the lock. The rectangular-shaped (EB195) and
arc-shaped (EB190) faceplates are used to suit
the different users' habits of installations.
EB190
EB195
Double Action Doors
EB190 Electric dropbolt is specially designed for use on
double swinging doors. They can also be installed on both
outswing and inswing doors.
GIANNI INDUSTRIES, INC.
Copyright © Gianni Industries, Inc. All rights reserved.
DM-CA-EB-190 Ver. F Published on 2011.06.22
The product is warranted against defects in material and
workmanship while used in normal service for a period of 2
years from the date of sale to the original customer. The GEM
policy is one of continual development and improvement;
therefore GEM reserves the right to change specifications
without notice.
Warranty
No. 13, Zhongxing Rd., Tucheng Dist., New Taipei
City 236,Taiwan (R.O.C.)
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: [email protected]
Website: gianni.tw
