Gianni Industries GEM DG-27WP - Manual

GIANNI INDUSTRIES, INC.
Copyright 2009 Gianni industries, inc. All rights reserved.
DM-CA-DG-27 Ver. E Published on 2009.11.20
The products are manufactured under an ISO
9 0 0 1
Q C 0 8 0 0 0 0 C e r t i f i e d Q u a l i t y
Management Program environment back its
product quality, performance and commitment
to customer satisfaction.
&
Features
Statement

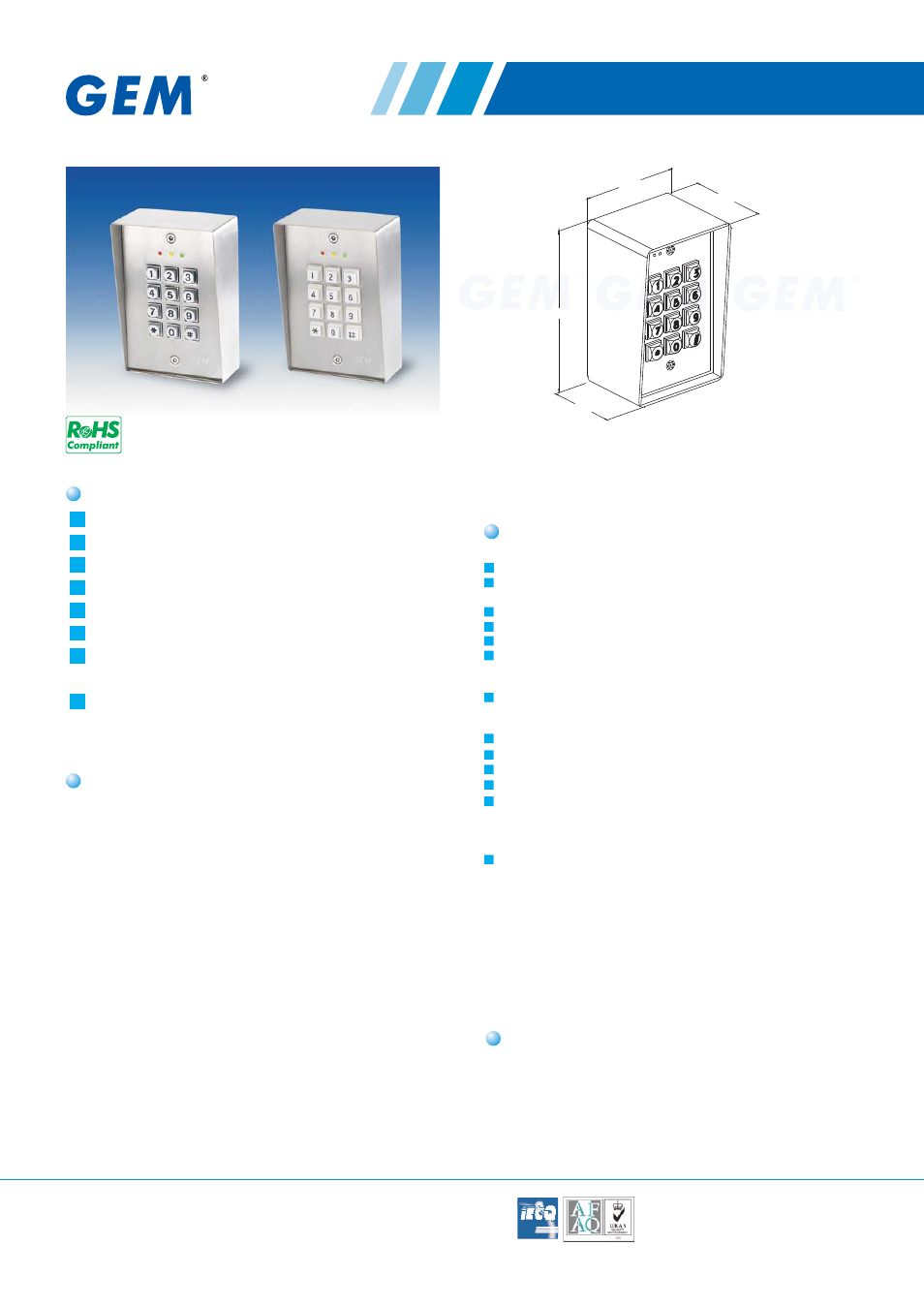

DG-27
Digital Keypad
The product is warranted against defects in material and
workmanship while used in normal service for a period of 1
year from the date of sale to the original client. The GEM policy
is one of continual development and improvement; therefore
GEM reserves the right to change specifications without
notice.
Warranty
Specifications
DG-27WP
(Waterproof Keypad)
DG-27 Unit: mm
Allows up to 49+50 PIN codes
Dual relays output for multi-control
Door Reed Switch Input for Anti-Trailing
Fully Programmable via keypad and master code
3 LED display indication
Non-Volatile Memory & Invalid PIN Lock-out
Durable Stainless Steel Faceplate With vandal
resistant screws
Optional with Water-proof Keypad
The is a dual relay digital code-operated for access
control keypad with up to 49+50 individual user PINs, user
access PINs ensure that all functions controlled to authorized
persons only. The door reed switch Input is used to time out
the timer when door is moved for Anti-Trailing.
Logical memory can prevents unauthorized persons from
gaining PIN code entry by trial and error, The system will shut
down for 60 seconds while 32 codes of incorrectly Master
Codes enrolled or PIN codes attempted
None beeper signal
of keypad activations
DG-27
（
）
137.3
55
40
92.7
Operating voltage: 12~24 VDC
Current draw: Holding: 15mA@12VDC
Pull in: 60mA@12VDC
Input: request-to-exit, time out reed switch contact
Output: Dual relays, N.O./N.C./Com. Output (dry contact)
Relays rating: 2A MAX @30VDC , 0.4A @ 120VAC
Relay activation time:(*100,*200)
Strike time: 1~99 seconds
Strike mode: Access timer or latch
Memory volume: 49+50 PIN codes
Relay 1 is controlled by 001~049 user slots
Relay 2 is controlled by 050~099 user slots
PIN codes: 5 digit codes only
Operating temperature: -20~+70C
Ambient Humidity: 5~95% relative humidity non-condensing
Master Code: Default value: 12345
Invalid PIN Lock-out: The system will shut down for 60
seconds while 32 codes of incorrectly Master Codes enrolled
or PIN codes attempted(None beeper signal of keypad
activations)
Weight: Approx 460g
No. 13, Zhong Sing Road, Tu-Cheng Industrial Zone,
Tu-Cheng City, Taipei, Taiwan 23678
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: [email protected]
Website: gianni.tw
