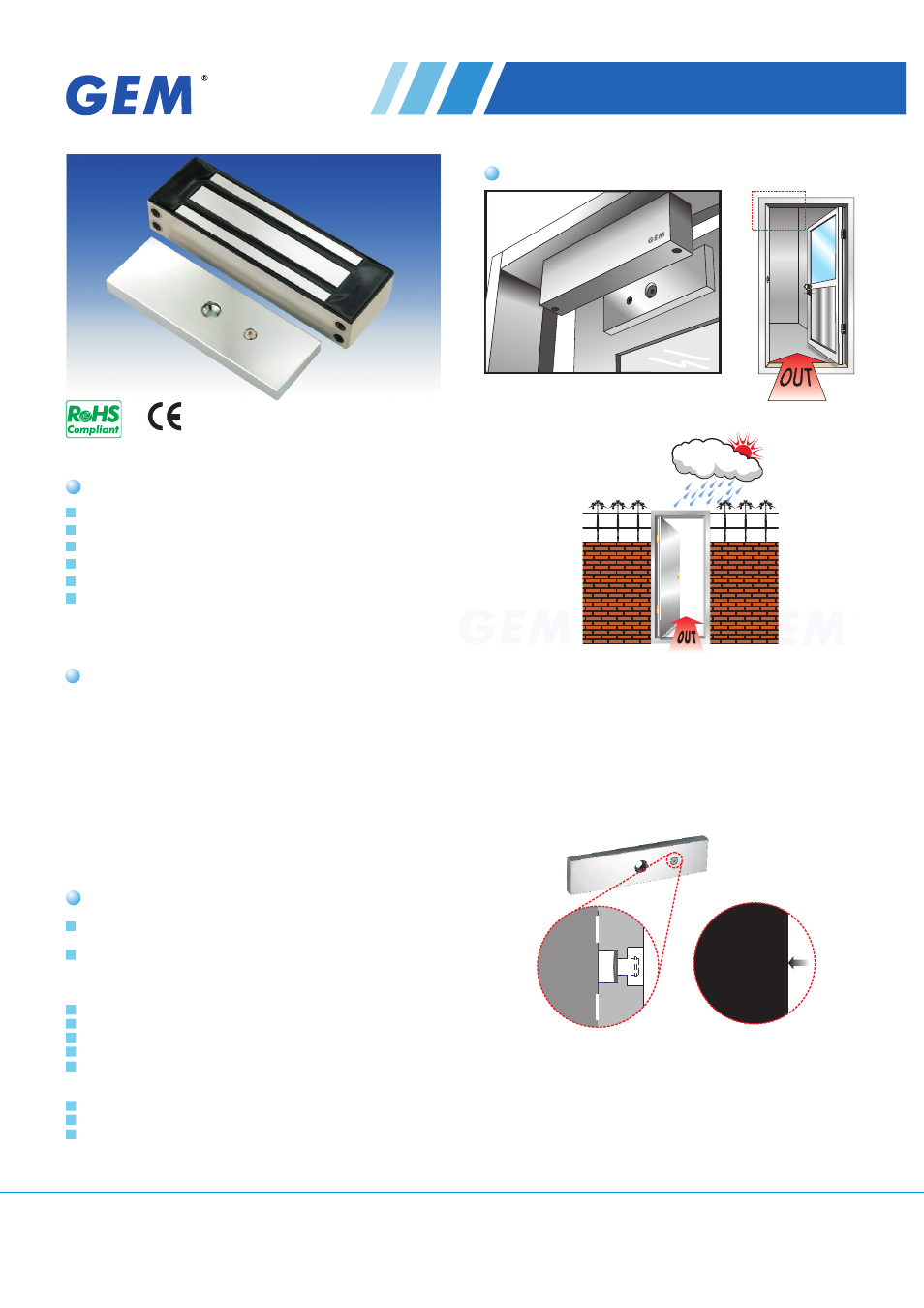

Gianni Industries 10010ST - Manual

Statement
Standard Installation
10010ST Standard Surface Mount
Waterproof Electromagnetic Lock
10010ST
able for outdoor
applications and severe weather conditions.
10020ST
is designed for surface mount on
out-swing doors. The maglock can be
configured to mount on in-swing doors with
optional LZ- shaped brackets. With stainless
steel housing, it is suit
comes with locked and unlocked
status output.
GIANNI INDUSTRIES, INC.
Copyright © Gianni Industries, Inc. All rights reserved.
DM-CA-10010ST Ver. F Published on 2011.08.30
Specification
Operating Voltage: Single Voltage: 12 or 24VDC
Dual Voltage: 12/24VDC
Current Draw:
Single Voltage: 460mA/12VDC, 250mA/24VDC
Dual Voltage: 500mA/12VDC, 250mA/24VDC
(at temperature 20ºC)
Bond sensor output (10020ST)SPDT rated 0.5A/20VDC
Operating temperature: -10~55ºC (14~131ºF)
Humidity: 0~95% non-condensing.
Holding force: 1200 lbs (545 Kg)
Dimensions:
Magnet:(L) 220, (W) 68, (D) 41 mm
Armature plate:(L) 185, (W) 62, (D) 16 mm
Zinc plated finish for magnet and armature plate
Epoxy potting compound: E87252 (S), UL94V-0
Net Weight: 5.0 Kg
Features
Low maintenance with high reliability
Stainless steel casing
Anti-residual magnetism function
Holding force up to 1200 lbs
Dual voltage input: 12 or 24 VDC (selectable)
MOV protects against spike and surge current
This series of Waterproof Magnetic Lock is epoxy
potting compound. Also, GEM Waterproof Series Magnetic
Locks have been proved to withstand water with the test
procedures of IPX7, IPX8 by a trusted third party. Therefore
users need not worry that the lock will rust or spark, if the lock
is in outdoor applications and installed in confined space
where inflammable gases are stored.
protected by
Magnet Armature
(Power Off)
Magnet Armature
(Power On)
Anti-residual statement
Our electromagnet locks feature Anti-Residual Magnetism
(ARM) which ensures the door can be opened without any
resistance from left over magnetism imparted to the armature
plate
