Z-Bracket
Inswing
Frame
Door
Armature
Z-400N Bracket
Typical mounting on i nswing door
GIANNI INDUSTRIES, INC.
Copyright Gianni industries, inc. All rights reserved.
DM-CA-Z-400N Ver. C Published on 2008.05.29
Unit:mm
Application for the Electromagnet:GL-850

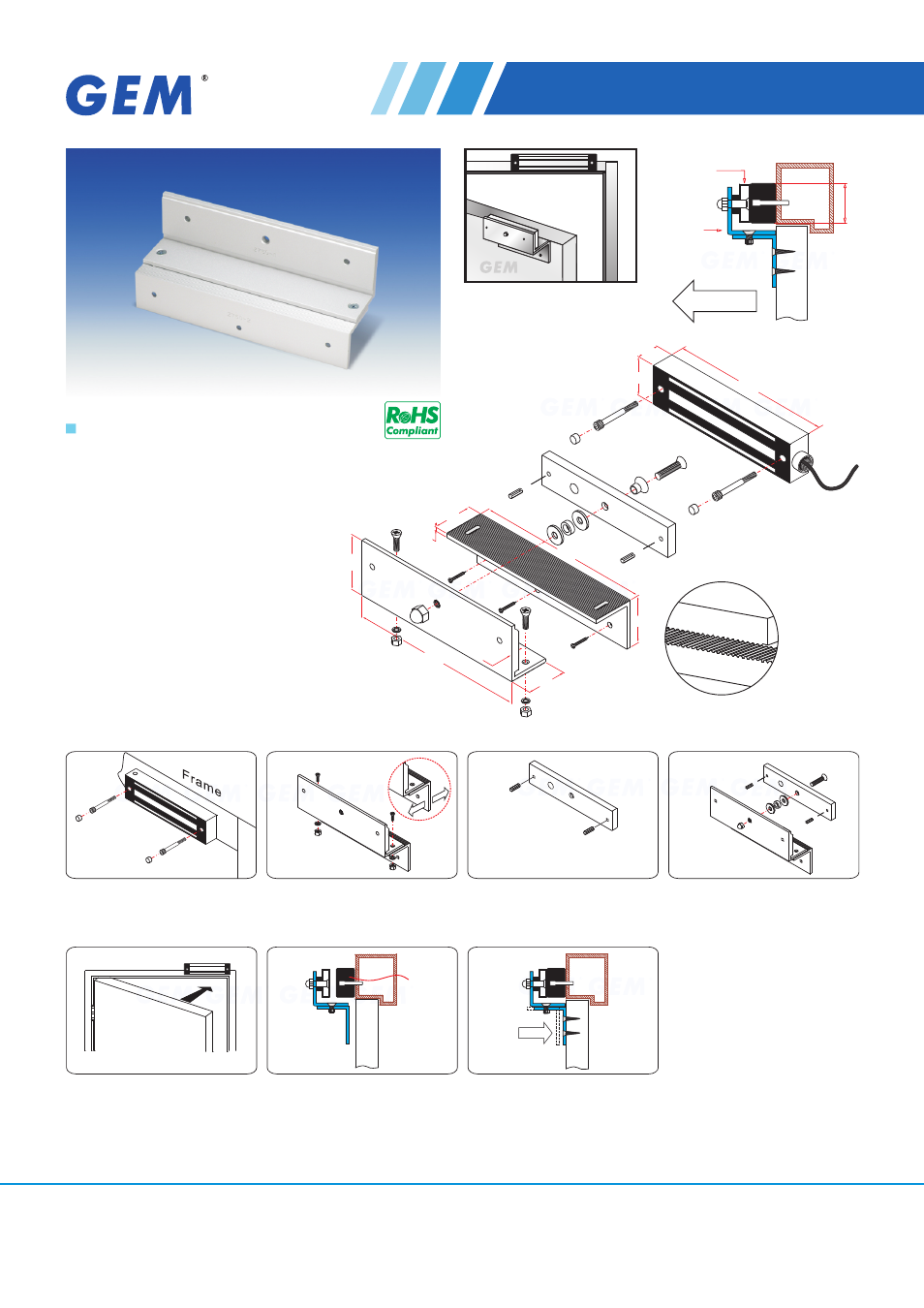

Installation Steps of Z bracket for Inswing doors
2
Tighten the electromagnetic lock
on the L bracket by using the
fixing screw.
1
6
Close the door. Measure the correct
position by bringing the armature
plate close to the contact surface of
the electromagnetic lock. Turn on the power of EM-Lock,
and let the armature plate bonds
to the EM-lock. Adjust the position
between the Z bracket and the
door frame.
Finish
Once the position is correct,
use the screws to permanently
mount the Z bracket on the door
frame. This should be the last step.
4
Insert the guide pins into the
armature plate.
5
Put one rubber washer between
armature plate and the Z bracket.
3
Assemble the Z bracket, and make
sure that the Z bracket is adjustable.
Power
22
0
48
8
55
5
42
48
22
0
30
232
45
