Gianni Industries GEM LZ-10001ST User Manual

Gianni industries, inc

background image

LZ-10001ST Bracket
In-swing doors

GIANNI INDUSTRIES, INC.

Copyright © Gianni Industries, Inc. All rights reserved.
DM-CA-LZ-10001ST Ver. E Published on 2011.09.08

Application of the Electromagnet:
10001ST series

Unit:mm

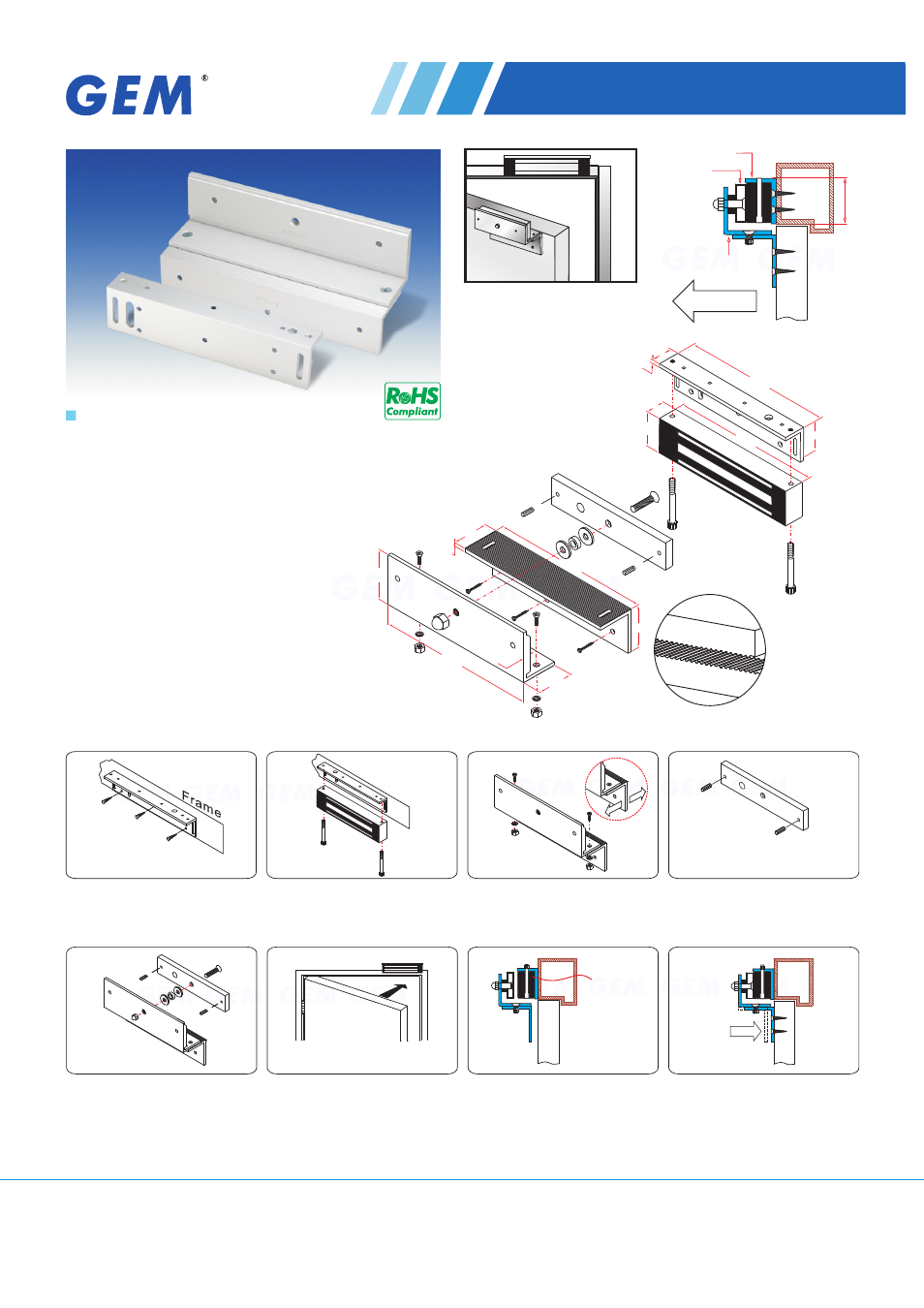

Installation of LZ bracket on In-swing Doors

2

1

6

7

Finish

4

5

3

Power

18

5

48

8

55

5

42

48

18

5

41

21

0

26

5

48

21

0

30

Install L bracket on the door frame.
M a k e s u r e t h e d o o r m a y b e
opened/closed.

Fasten the electromagnet to L
bracket with fixing screws.

Assemble Z bracket. Make sure it is
still loose.

I n s e r t t h e g u i d e p i n s i n t o t h e
armature plate.

Fasten the armature plate to Z
bracket. Insert the rubber washer
between them.

Close the door and turn on the
power.

L e t t h e a r m a t u r e p l a t e a n d
electromagnet bond together. Press
Z bracket to the door leaf.

Fasten Z bracket to the door leaf.

M

in

im

a

l:

4

8

m

m

L-Bracket

Z-Bracket

In-swing

Frame

Door

Armature

No. 13, Zhongxing Rd., Tucheng Dist., New Taipei
City 236,Taiwan (R.O.C.)
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: [email protected]
Website: gianni.tw
