Gianni Industries DG-30 - Manual

GIANNI INDUSTRIES, INC.
Copyright 2009 Gianni industries, inc. All rights reserved.
DM-CA-DG-30 Ver. E Published on 2009.11.30
The products are manufactured under an ISO
9 0 0 1
Q C 0 8 0 0 0 0 C e r t i f i e d Q u a l i t y
Management Program environment back its
product quality, performance and commitment
to customer satisfaction.
&
Features
Statement
The product is warranted against defects in material and
workmanship while used in normal service for a period of 1
year from the date of sale to the original client. The GEM policy
is one of continual development and improvement; therefore
GEM reserves the right to change specifications without
notice.
Warranty
Specifications
Unit: mm

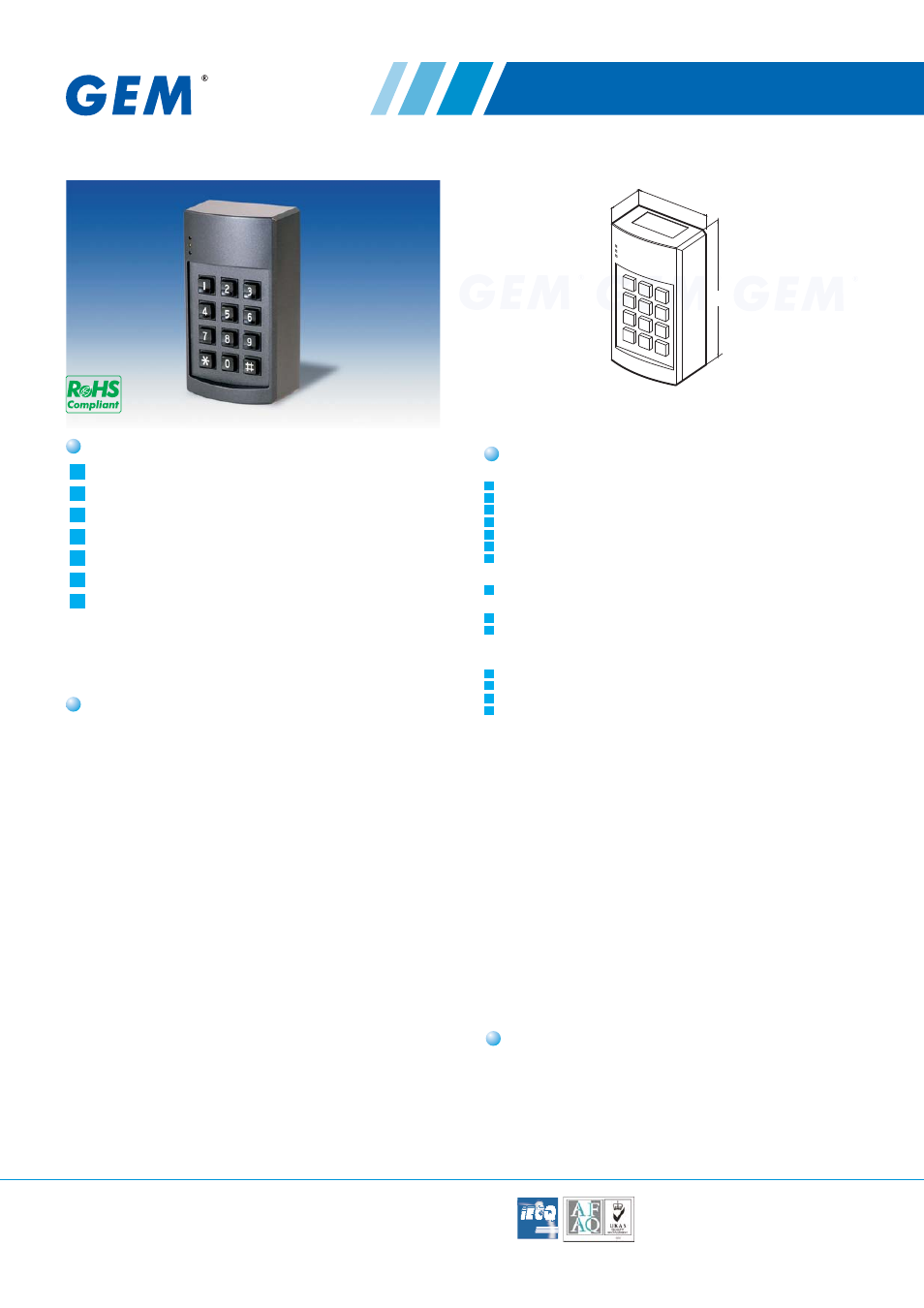

DG-30 Digital Keypad
DoorReedSwitchInputforAnti-Trailing
Allowsupto150Proximitycards/tokensorPINcodes
Dualrelaysoutputformulti-control
Supports26or34-bitWiegandauxiliaryreader
Logicalmemorytopreventduplication
FullyProgrammableviakeypadandmastercode
Non-VolatileMemory&InvalidPINLock-out
The DG-30 digital keypad entry system is a Multi-purpose
keypad, extendable to proximity reader's controller (Wiegand
format). 150 group of user's capacity, control by two Relays:
Relay 1 is Induces the card or the password using the 001~100
group; Relay 2 is using 101~150 group password user, and
receives auxiliary reader Wiegand 34 or 26-bit format
(adjustable, hexadecimal).
Digital code-operated (anti-tamper) for indoor access control
keypad with up to 150 individual user PIN codes or 100
individual user cards and 50 user PIN codes, suitable for small
and medium-size businesses, multi-tenant residential and
commercial buildings, as well as clinics and health facilities.
The door reed switch is used to time out the timer when door is
moved. User access PINs ensure that all functions controlled
to authorized persons only. It mounts to any standard single
gang electrical box or directly to any wall.
Logical memory can prevents unauthorized persons
from gaining PIN code entry by trial and error, host will shut
down 60 seconds while 5 times of incorrectly password
applied which would eliminate any random application of card
ID code transmission. Build in tamper switch that turns on
alarm relay activation to ensure vandal proof.
35.5 70
127.5
1
2
3
4
5
6
7
8
9
0
*
#
Operating Voltage: 12 VDC
Current Draw: 60mA Max @12VDC
Input: request-to-exit, time out reed switch contact, auxiliary reader.
Output: Dual relay, N.O./N.C./Com. Output (Dry contact)
Format: 26 or 34-bit Wiegand hexadecimal.
Relay rating: 3A@12VAC , 3A@24VDC
Memory Volume: 150 PIN codes or 100 Proximity cards/tokens and
50 PIN codes.
Relay 1 is controlled by 001~100 user slots (Cards or PIN codes)
Relay 2 is controlled by 101~150 user slots (PIN codes
Master Code: Default value 12345
Relay Activation Time:
Strike Time: 1~99 seconds
Strike mode: Access Timer or Latch
Operating Temperature: -20~+70°C
Ambient Humidity: 5~95% relative humidity non-condensing
Case Material: ABS UL94V0
Color: Black/white
)
( )
