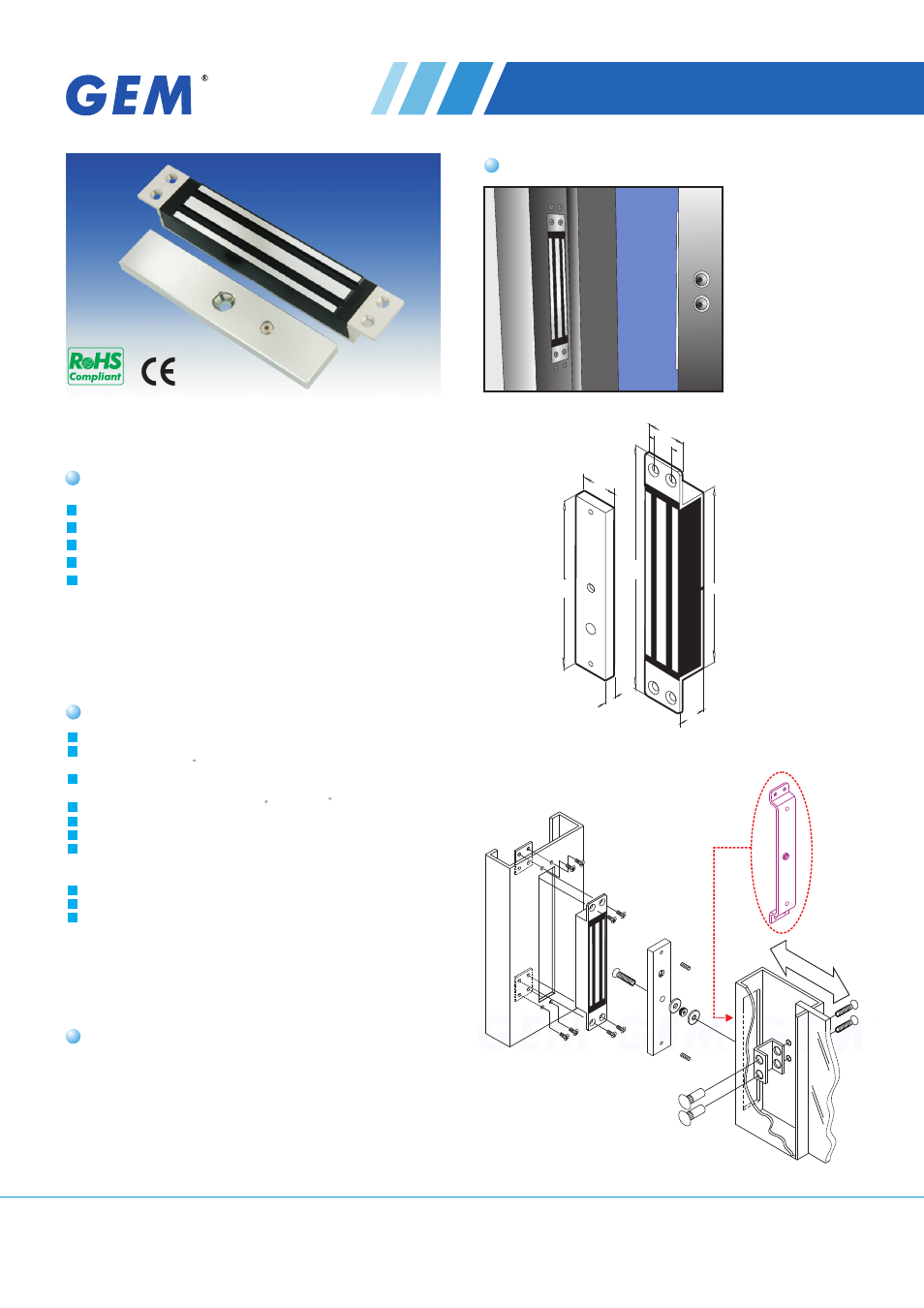

Gianni Industries 10000 series - Manual

Specification
10000 series Mini Magnetic Lock
Mortise Mount
Op erating Voltage: 12 /24 VDC
Cu rrent draw: 500mA /12VDC ; 250mA /24VDC
(at temp erature 20 C)
Bond sensor output (10000R) :
SPDT r ated 0.5A/125VAC; 1A/24VDC
Op erating temp erature: -10~55 C (14~131 F)
Hu mi dity: 0~95% non-condensing.
Ho lding force: Up to 600 lbs (272 Kg)
Di me nsions:
Ma gnet:(L) 230, (W) 38, (D) 27 mm
Arma ture plate:(L) 185, (W) 38, (D) 12 mm
Special finishes for ma gnet and arma ture plate: Zinc plated
Epoxy potting comp ound: E87252 (S), UL 94V-0
Ne t Weight: 2.0 Kg
The product is warranted against defects in material and
workmanship while used in normal service for a period of 5
years from the date of sale to the original client. The GEM
policy is one of continual development and improvement;
therefore GEM reserves the right to change specifications
without notice.
Warranty
AMB-300
Optional Bracket
Fr
am
e
Slid
ing
D
oo
r
Mortise Mount (Sliding Door)
23
0
38
19
18
7
27
12
18
5
38
Unit: mm
Copyright © Gianni Industries, Inc. All rights reserved.
DM-CA-10000 Ver. F Published on 2011.09.07
Features
GIANNI INDUSTRIES, INC.
No. 13, Zhongxing Rd., Tucheng Dist., New Taipei
City 236,Taiwan (R.O.C.)
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: [email protected]
Website: gianni.tw
For mortise mount on sliding doors
Aluminum anodized casing
MOV provides spike and surge protection
Dual voltage 12 or 24VDC ( selectable)
Anti- residual magnetism function.
Regular Installation
