Model g0563/g0564 (Mfg. since 10/11)
-23-
the Model g0563/g0564 comes with a remov-
able fence to assist sanding operations when the
table is in the horizontal position.
components and hardware needed: Qty
Fence ................................................................. 1
star Knob .......................................................... 2
Flat washer
5 /
16
" ................................................ 2
to mount the fence:
1. set the fence on the table and align the slots
with the threaded holes in the table.
2. thread the star knobs and flat washers into
the threaded table holes ( figure 19) and
tighten.
fence

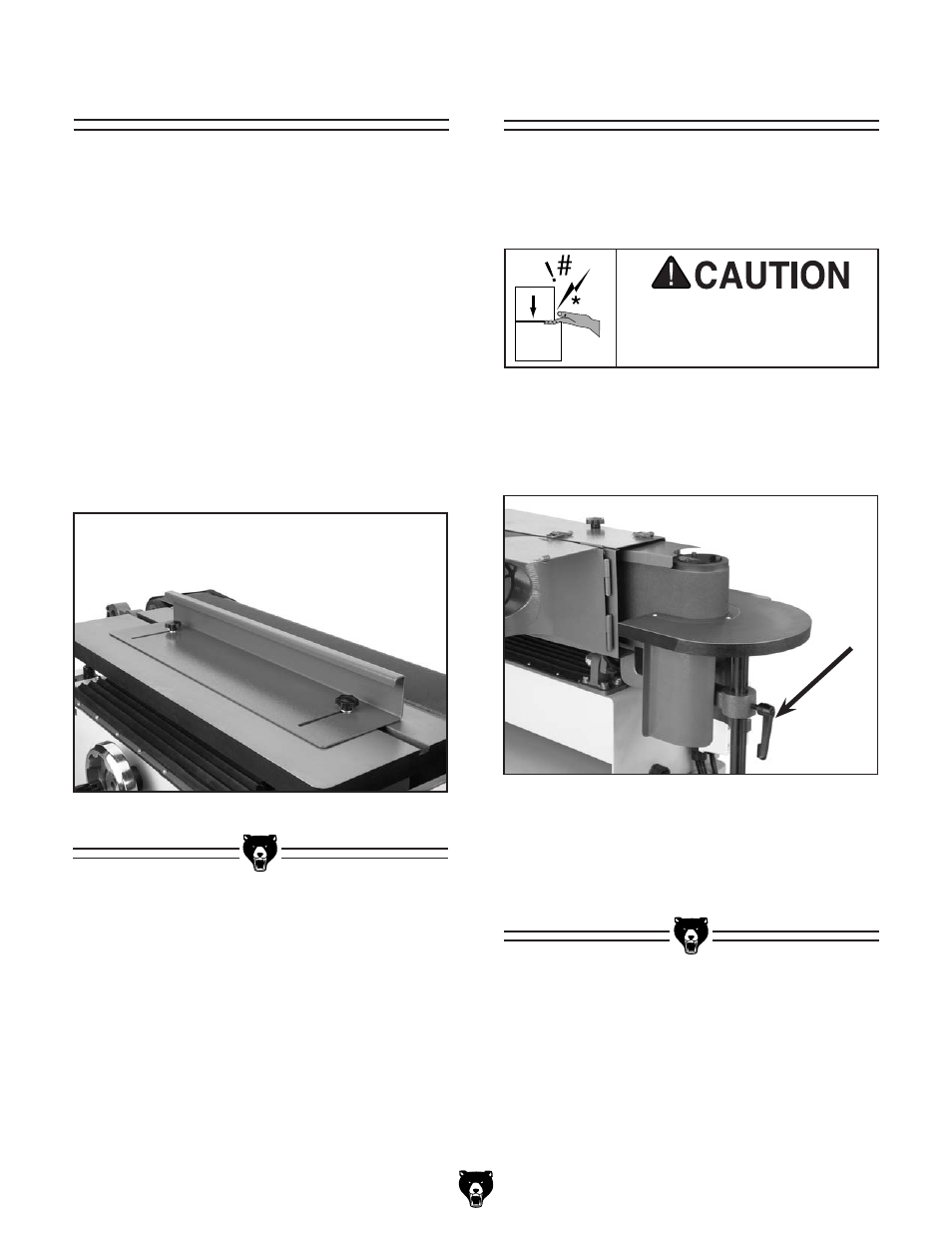

figure 19. Fence installation.
Spindle table height
the spindle table on the oscillating edge sander
can moved vertically to accommodate various
sanding operations and to decrease spot wear on
the sanding drums.
2. raise or lower the spindle table to the desired
height.
3. tighten the adjustment lock handle.
figure 20. spindle table adjustment lock handle.
to adjust the spindle table height:
1. loosen the adjustment lock handle shown in
figure 20.
KEEp hanDS cLEar of all
pinch points when adjusting
the spindle table.
