Magnet
A
rm
a
tu
re
Door Frame
Door
Leaf
A
Outswing

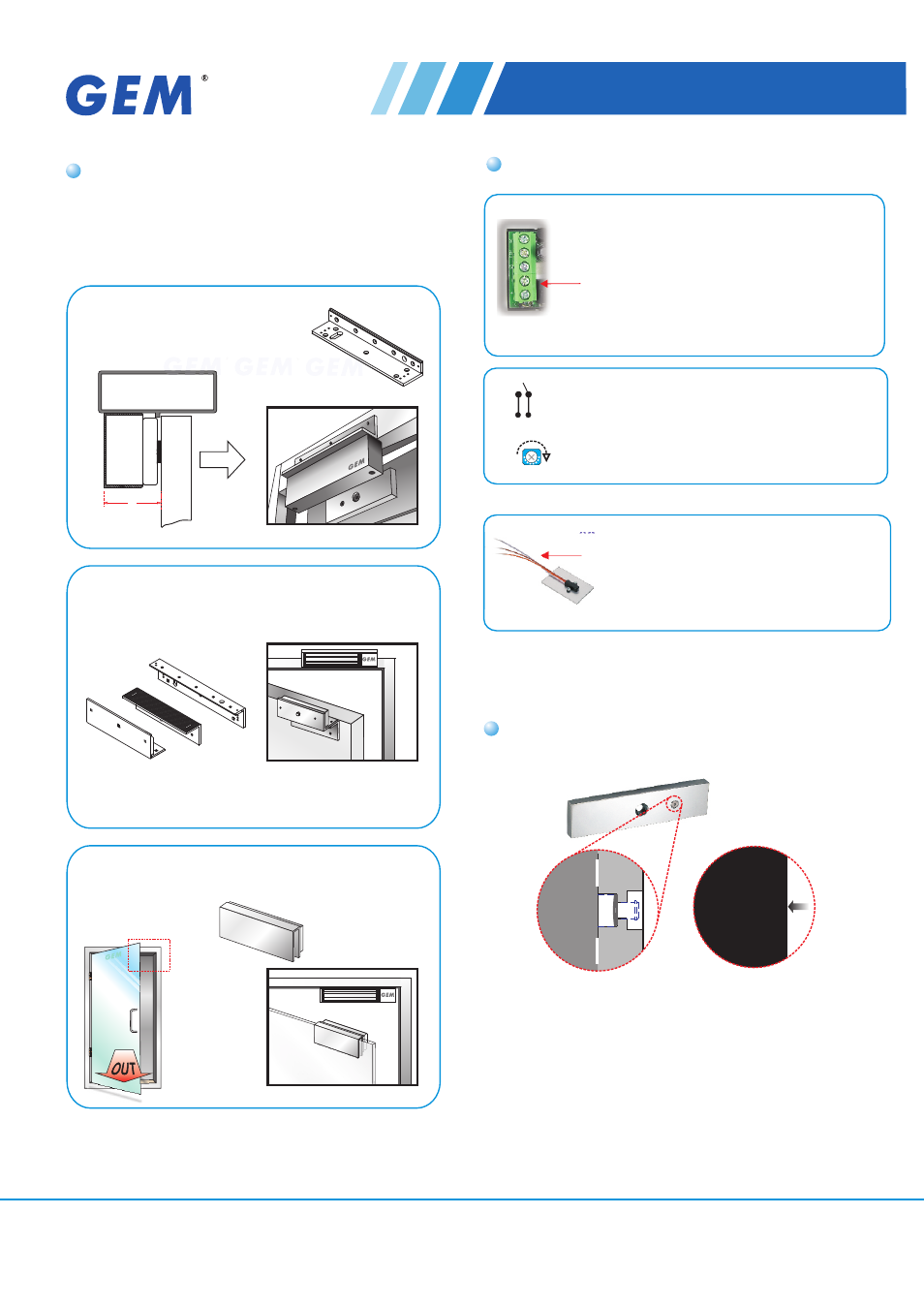

Optional Brackets
L-bracket for narrow door frames
When < 48 mm ,must
install with "L" brackets.
"A"
L-NH350M
LZ-bracket for inswing doors
U-bracket for frameless glass doors
UBK-013 For 10~12mm thickness of glass door
LZ-NH-350N
Copyright © Gianni Industries, Inc. All rights reserved.
DM-CA-EM-NH350 Ver. H Published on 2012.09.17
EM-NH350
Midi Electromagnetic Lock
GIANNI INDUSTRIES, INC.
Operating Features
48 mm
Bracket installation is according to door swing
direction and door frame type , e.g. narrow frame
door , frameless glass door , inswing door , etc.
UBK-013
xxxxx-TD : Relock time delay
Ensure the automatic lock mode after the door is
closed properly and it can be adjusted from 1 to
80 seconds.
EM-NH350ML : Bond sensor output with
LED indicator
Indicate the locked & unlocked status with visible
LED indicator.
Bond sensor output
SPDT rated: 0.5A/125VAC;1A/24VDC
Timer Adjust
Shorten
Trigger
: Door status xxxxx-DS
Door Status Sensor indicates the door is in an
open or closed status.
Door status output
SPDT rated: 0.2A/12VDC
Anti-residual statement
Magnet Armature
(Power Off)
Magnet Armature
(Power On)
Anti-residual statement
Our electromagnet locks feature Anti-Residual Magnetism
(ARM) which ensures the door can be opened without any
resistance from left over magnetism imparted to the armature
plate
No. 13, Zhongxing Rd., Tucheng Dist., New Taipei
City 236,Taiwan (R.O.C.)
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: [email protected]
Website: gianni.tw
EM-NH350M : Bond sensor output
(no LED indicator)
