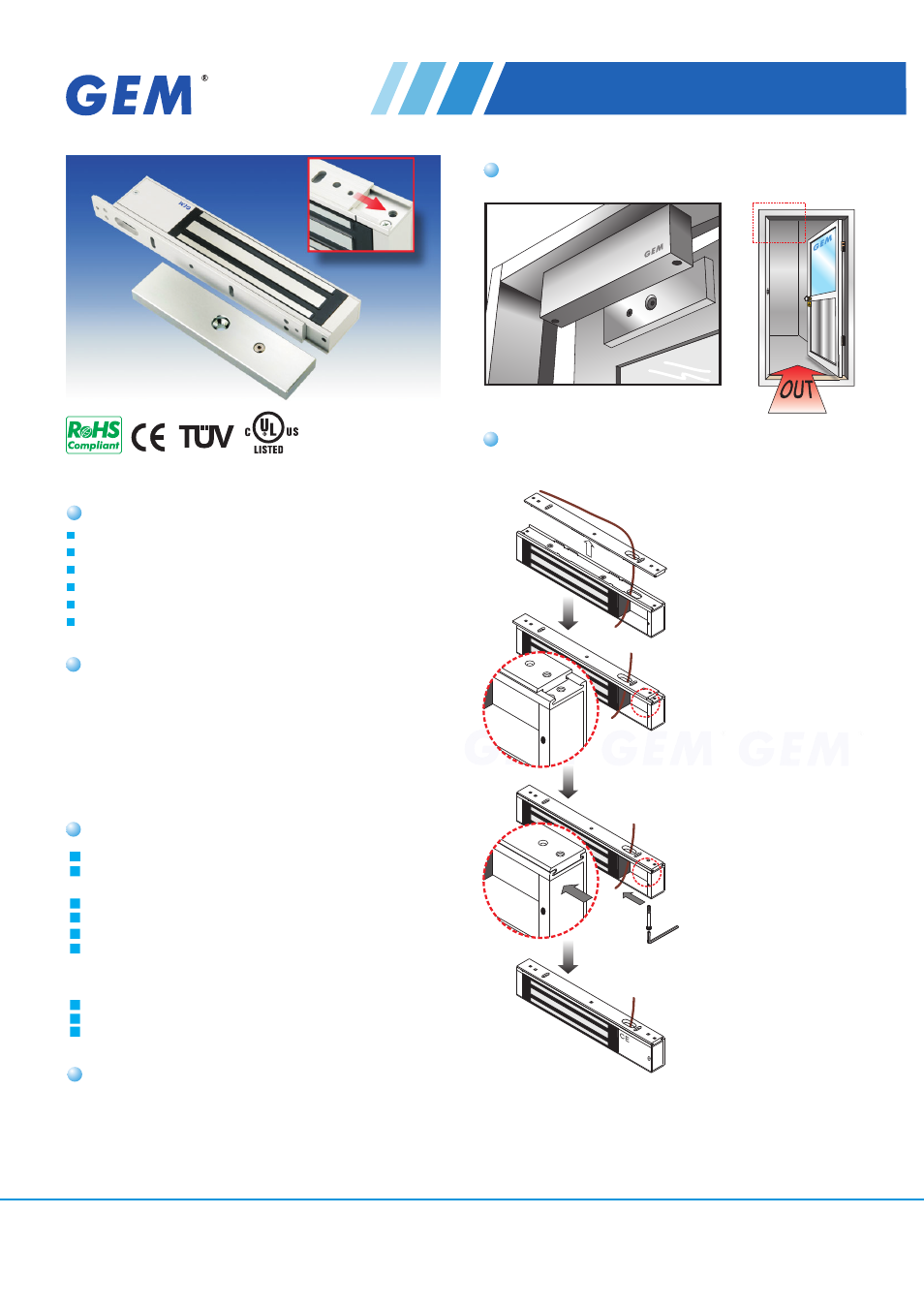

EM-NH350
Midi Electromagnetic Lock

Statement

EM-NH350 is designed for surface mount on
out-swing doors. Its slide-in mounting plate
simplifies the process of installation and firmly
secures the magnet. EM-NH350M comes with
magnetic bond sensor output and EM-NH350ML
with LED indicating locked and unlocked status.

Specification

Operating Voltage: 12/24 VDC
Current Draw: 500mA/12VDC;250mA/24VDC
(at 20ºC)
Operating Temperature: -10~55ºC (14~131ºF)
Humidity: 0~95% non-condensing.
Holding Force: Up to 800 lbs (363 Kg)
Dimensions:
Magnet:(L) 265, (W) 52, (D) 29 mm
Armature Plate:(L) 185, (W) 45, (D) 14 mm
Mounting Plate:(L) 265, (W) 29, (D) 6.5 mm
Finishes for magnet and armature plate: Zinc plated
Epoxy Potting Compound: E87252 (S), UL94V-0
Net Weight: 3.0 Kg

Patent:
ZL 2006 2 0122522.X
Nr.20 2006 012 052.1
M308308
GB 06 16099.8
06 07229 (France)

GIANNI INDUSTRIES, INC.

Special Mounting Plate design

Features

Holding force up to 800lbs
MOV provides spike and surge protection
Aluminum anodized casing
Mounting plate & housing for easy installation
Dual voltage 12 or 24 VDC (selectable)
Anti-Residual magnetism function

Cable

1 . P a s s t h e p o w e r c a b l e
through the mounting plate
and the hole of the maglock.

4.Use the Allen wrench and
fixing screws to tighten the
mounting plate and maglock.

2.Place the mounting plate
above the maglock. Leave a
length of 1 cm from either end
of the maglock.

3.Slide the mounting plate
into the maglocks. Fit the
maglock from the bottom to
the mounting plate.

Regular Installation

The product is warranted against defects in material and
workmanship while used in normal service for a period of 5
years from the date of sale to the original client. The GEM
policy is one of continual development and improvement;
therefore GEM reserves the right to change specifications
without notice.

Warranty

No. 13, Zhongxing Rd., Tucheng Dist., New Taipei
City 236,Taiwan (R.O.C.)
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: [email protected]
Website: gianni.tw

Copyright © Gianni Industries, Inc. All rights reserved.
DM-CA-EM-NH350 Ver. H Published on 2012.09.17
