G0646/G0647 50/65 Ton Ironworker
-67-
���
���
���
���
���
���
���
���
���
���
���
���
���

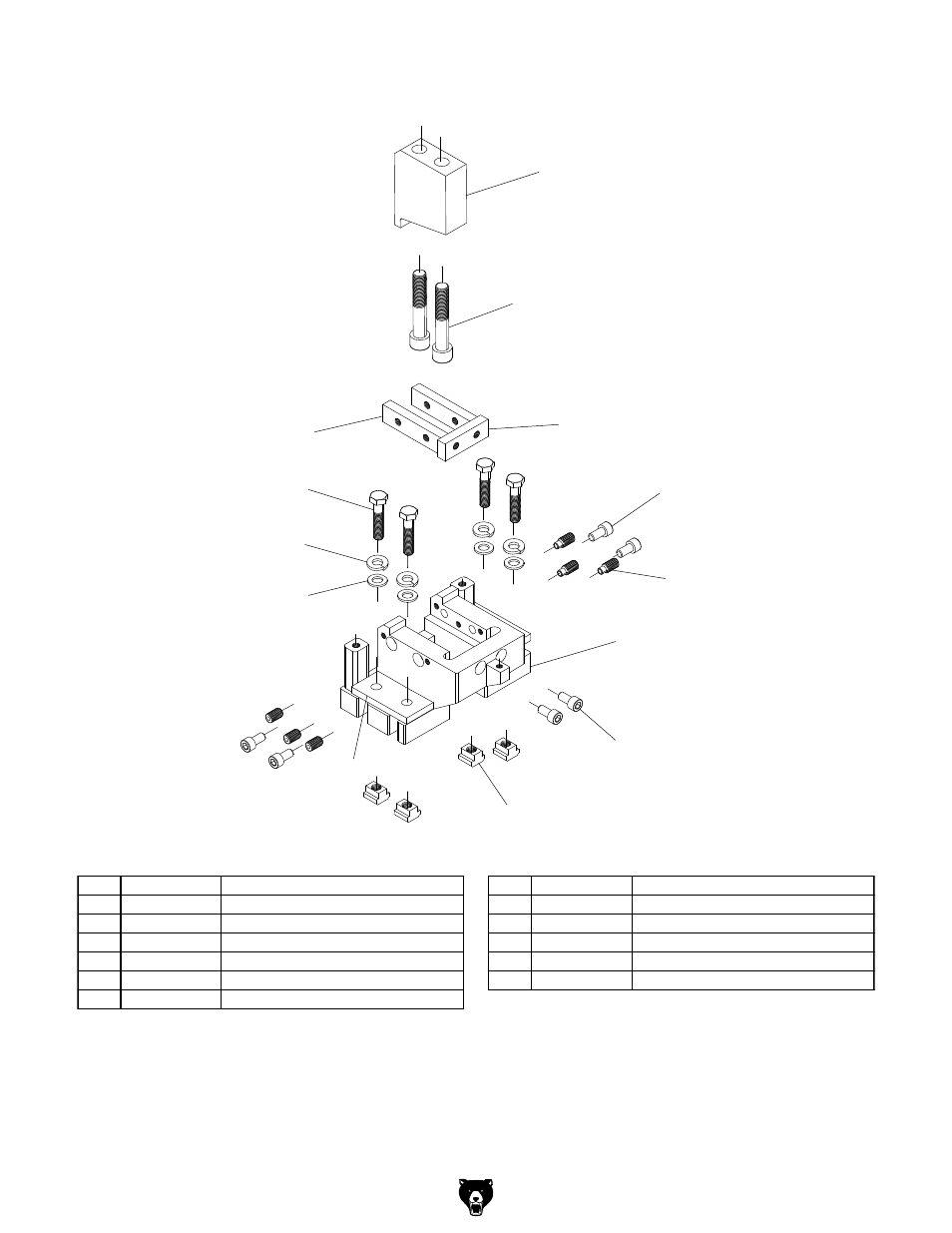

Notching Station
REF PART #
DESCRIPTION
REF PART #
DESCRIPTION
137
P0646137
NOTCH PUNCH
144
P0646144
NOTCH BOLSTER CLAMP
138
P0646138
CAP SCREW M20-2.5 X 90
145
PLW05M
LOCK WASHER 12MM
139
P0646139
NOTCH SIDE DIE
146
PW06M
FLAT WASHER 12MM
140
P0646140
NOTCH END DIE
147
PB12M
HEX BOLT M12-1.75 X 55
141
P0646141
NOTCH BOLSTER
148
PSB64M
CAP SCREW M10-1.5 X 25
142
PSB64M
CAP SCREW M10-1.5 X 25
149
P0646149
TEE NUT M12-1.75
143
PSS21M
SET SCREW M8-1.25 X 25
