-20-
G0646/G0647 50/65 Ton Ironworker
Damage to your eyes, lungs, and ears could
result from using this machine without
proper protective gear. Always wear safety
glasses, a respirator, and hearing protection
when operating this machine.
Loose hair and cloth-
ing could get caught in
machinery and cause seri-
ous personal injury. Keep
loose clothing and long
hair away from moving
machinery.
Operation Safety
SECTION 4: OPERATIONS
NOTICE
If you have never used this type of machine
or equipment before, WE STRONGLY REC-
OMMEND that you read books, trade maga-
zines, or get formal training before begin-
ning any projects. Regardless of the con-
tent in this section, Grizzly Industrial will
not be held liable for accidents caused by
lack of training.
Basic Controls
Refer to Figure 16 and the descriptions below to
become familiar with the basic controls of your
ironworker.
A. Main Power Switch: Allows power to flow to
the machine—" l" is ON, and "O" is OFF.
B. Power Lamp: Lights when power flows to the
machine.
C. Emergency Stop Button: Turns power OFF
to the machine, but does not disconnect the
machine from power. There are two emer-
gency stop buttons—on the main control
panel and on the left side of the machine.
D. Electrical Cabinet Door Latch: Allows entry
to the electrical cabinet when the main power
switch is in the
OFF position.
A

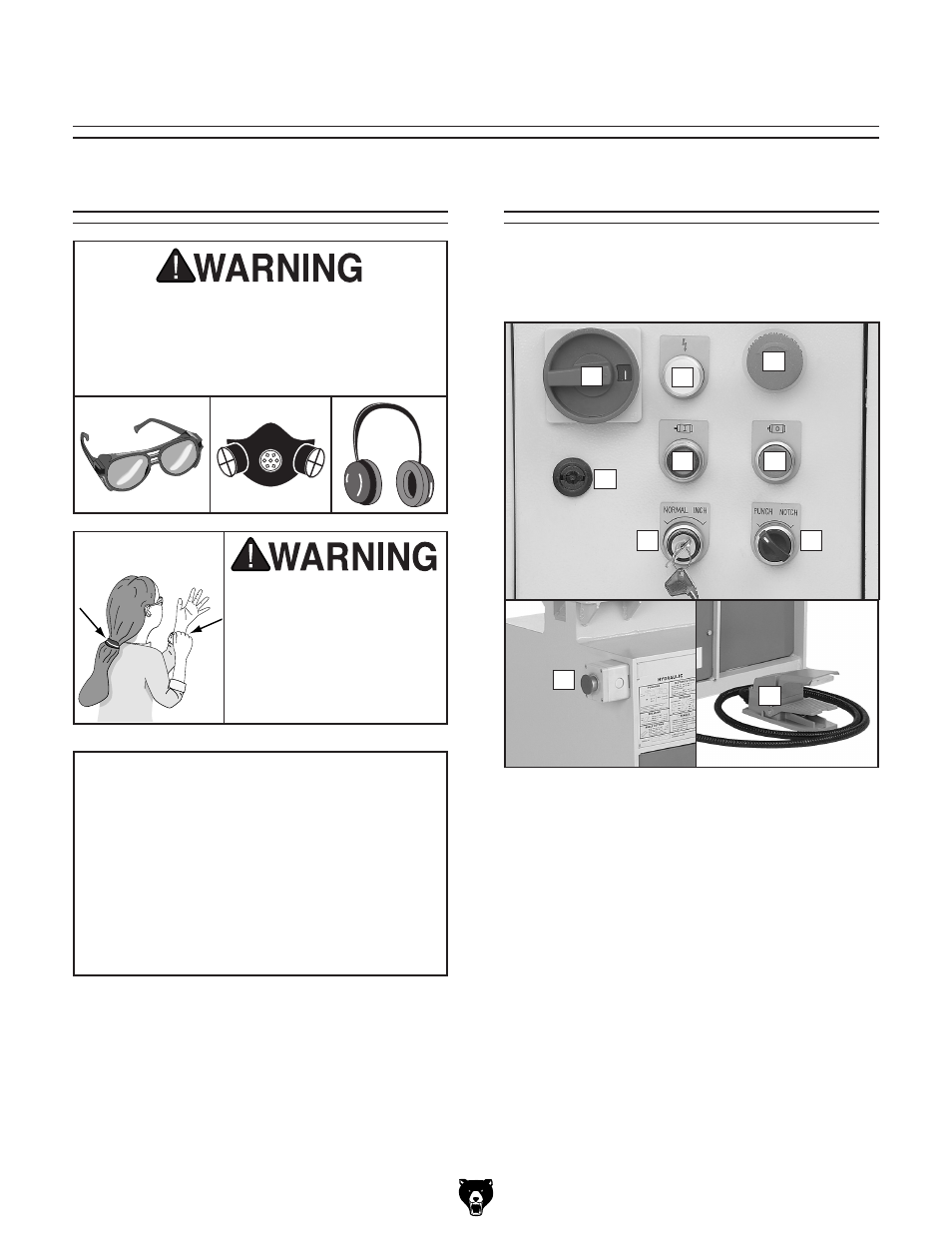

Figure 16. Basic controls.
B
C
D
E F
G H
I
C
