Shearing Table
Alignment
The shearing table must be level along the entire
length with the bottom flat stock shearing die for
accurate cuts.
Tools Needed Qty
Straightedge ...................................................... 1
Hex Wrench 8mm .............................................. 1
Adjustable Wrench ............................................ 1
To adjust the shearing table to the bottom flat
stock shearing die:
1. DISCONNECT MACHINE FROM POWER!
2. Place a straightedge across the shearing
table and the top of the bottom die in multiple
locations (see
Figure 64).

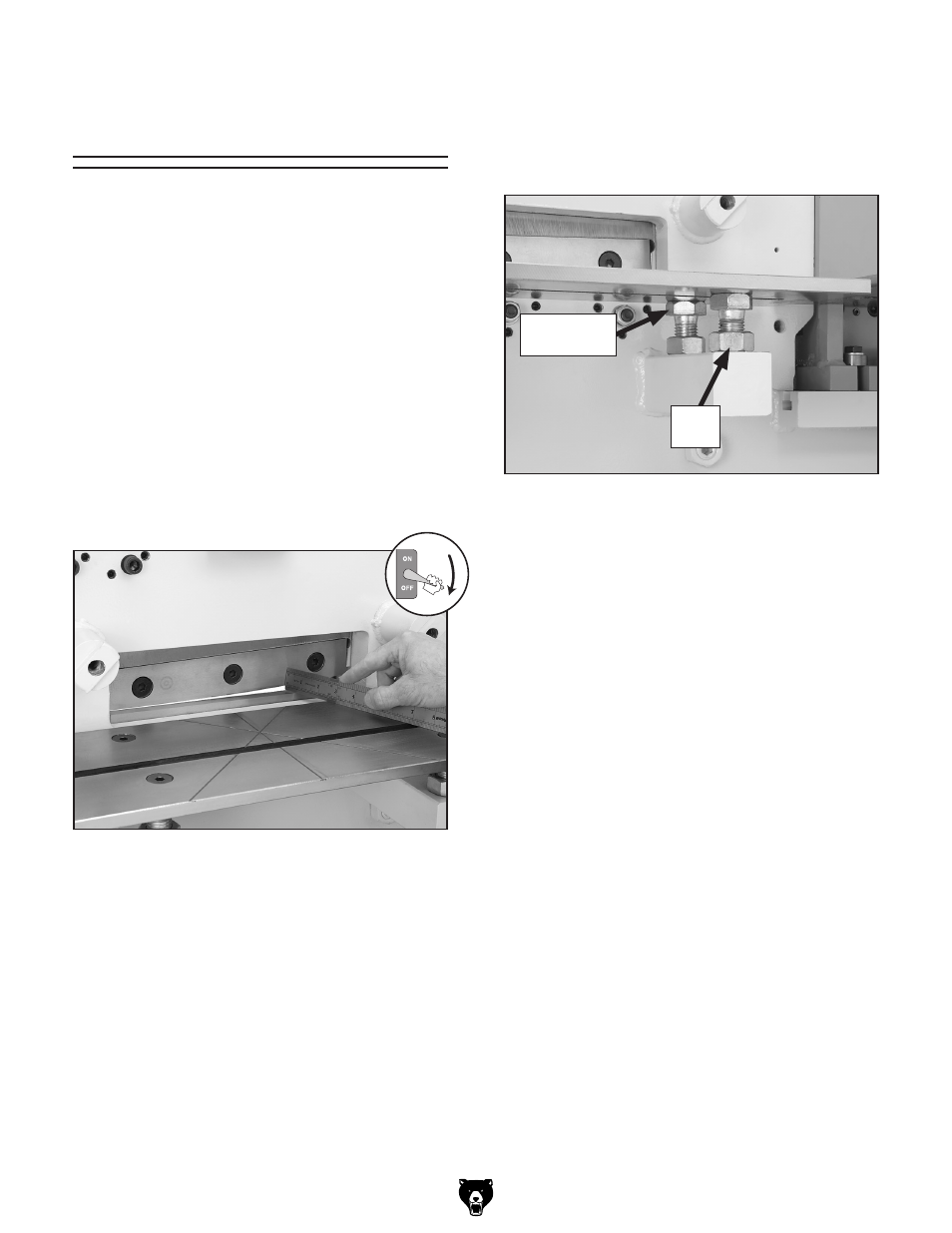

Figure 64. Straightedge on shearing table and
die.
3. Loosen the shearing table mounting cap
screws 1–2 turns.
4. Reach under the table and loosen the adjust-
ment lock nuts (see Figure 65).
Figure 65. Shearing table adjustment lock nuts
and hex bolts.
Adjustment
Hex Bolt
Lock
Nut
5. Rotate the adjustment hex bolts to make
the table level with the top of the bottom die
along its entire length.
6. When you are satisfied with the adjustments,
re-tighten the lock nuts and the table mount-
ing cap screws.
