-40-
G0646/G0647 50/65 Ton Ironworker
Hydraulic System
Fluid Capacity
Hydraulic Reservoir ......... Approx. 15 gal. (60 L.)
The hydraulic system must be maintained on a
regular basis and kept in good operating condition
so that the ironworker can perform safely and at
the rated capacity.
If you have never maintained a hydraulic system
before, WE STRONGLY RECOMMEND that you
read books, get formal training, or seek the help of
a qualified hydraulic service technician.
NOTICE
Failure to perform regular and proper
hydraulic system maintenance and to keep
the hydraulic system in good operating
condition will lead to premature wear of the
moving parts, hoses, and valves, and will
void the warranty.
Use the sight glass mounted on the rear of the
hydraulic reservoir (see
Figure 53) to check the
fluid level and temperature. Maintain the fluid level
above the red line on the sight glass.
The operating temperature of the hydraulic fluid
should not exceed 160°F (70°C) with an optimum
operating temperature window of 50–95°F (10–
35°C). If the fluid temperature rises above 160°F,
stop the machine immediately and allow the fluid
to cool down.
If this condition continues during operation, stop
using the machine immediately, then review
Troubleshooting on Page 43. If you still cannot
remedy the problem, contact a qualified hyraulic
service technician or our Tech Support at (570)
546-9663 for assistance.
Filling Hydraulic Reservoir
Tools Needed Qty
Wrench 10mm ................................................... 1
1. DISCONNECT MACHINE FROM POWER!
2. Remove the rear access panel.
3. Remove the filler cap and add one of the rec-
ommended hydraulic fluids from Figure 54
or an equivalent to bring the fluid level in the
sight glass above the red line.

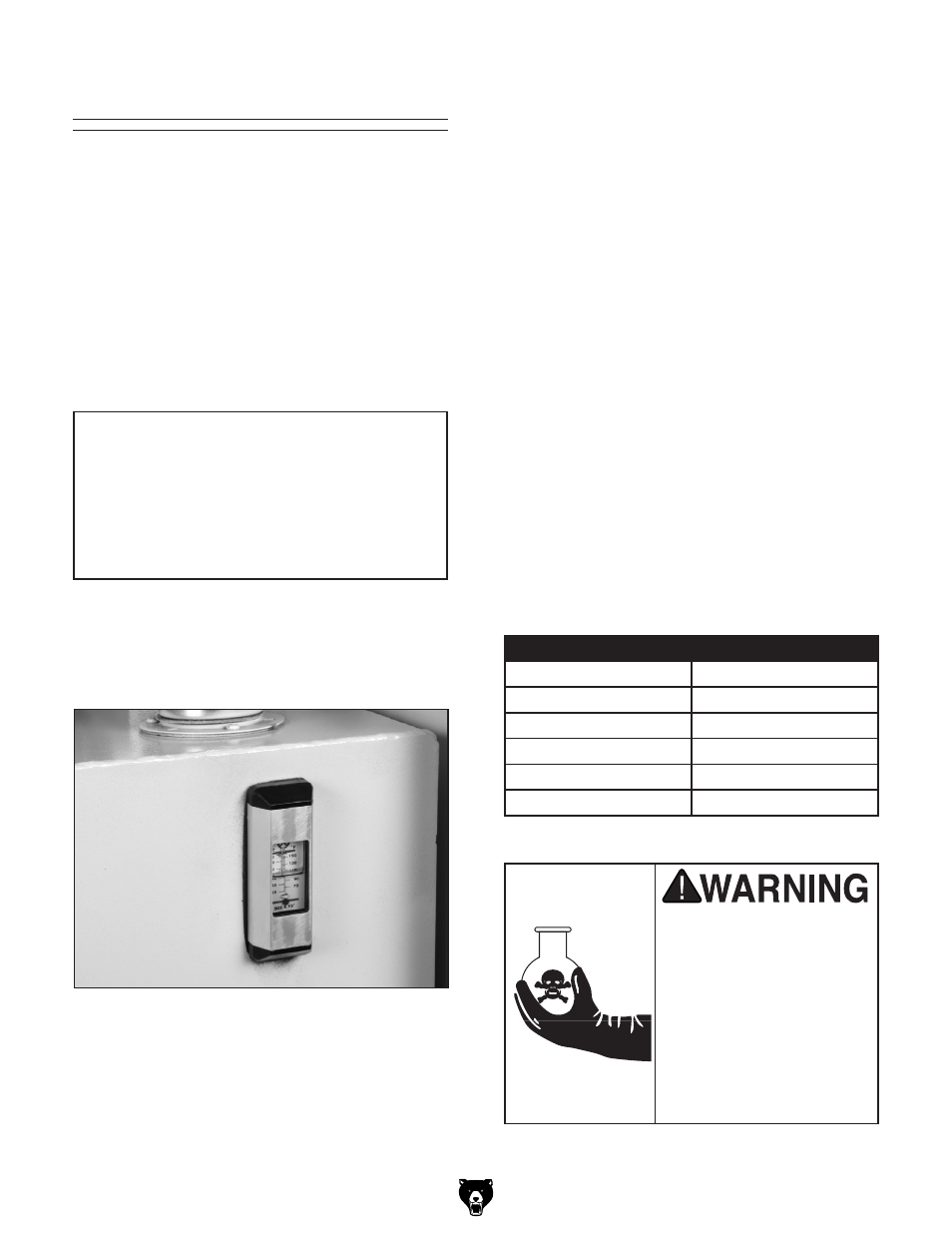

Figure 53. Hydraulic fluid reservoir sight glass
(rear access panel removed for photo clarity).
Brand Type
B.P. Energol HLP 32
Castrol Hyspin AWS 82-6018
Esso Nuto H32
Mobil DTE 24
Shell Tellus 32
Total Azolla ZS 32
Figure 54. Recommended hydraulic fluids.
hydraulic system
BIOLOGICAL AND
POISON HAZARD!
Use proper personal pro-
tection equipment when
handling hydraulic fluid,
and follow federal, state,
and fluid manufacturer
requirements to proper-
ly dispose of hydraulic
fluid.
