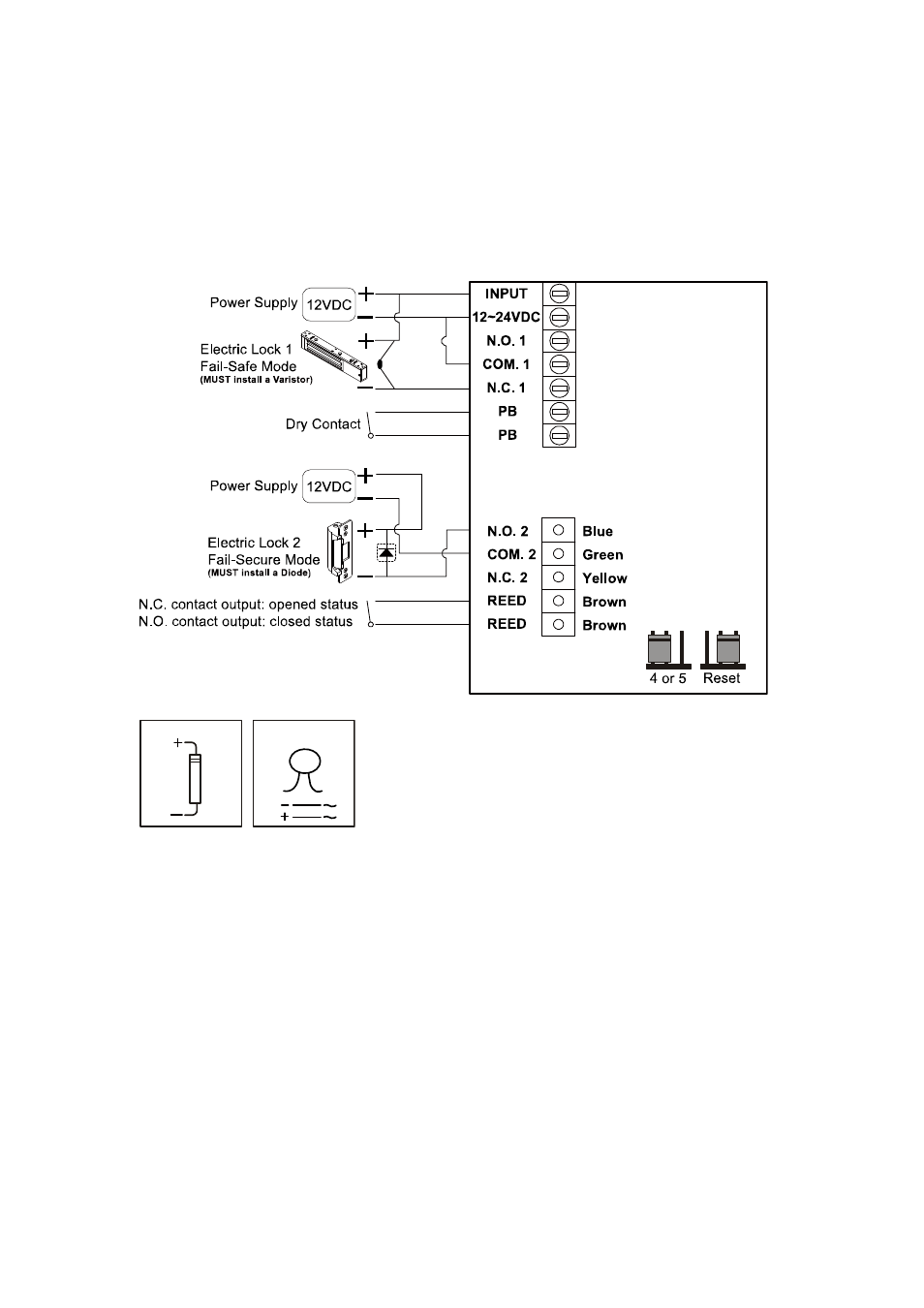

IV. Wiring Diagram
For DC use only
For AC/DC
The door strike or relay must have a varistor or a diode
across the door strike terminals to suppress the back EMF of
the strike – failure to do so will damage the relay contacts and
electronic components, or even burns the controller.
Note
Additional input for anti-tailgating function to ensure high security access control. The function is
unavailable for Toggle Mode (00).
Warranty
The product is warranted against defects in material and workmanship while used in normal
service for a period of 1 year from the date of sale to the original customer. The GEM policy is one
of continual development and improvement; therefore GEM reserves the right to change
specifications without notice.
Copyright All Rights Reserved.
P-MU-DG15 Ver. I Publish:2010.08.12 Page: 3/ 3
