Chapter 6 Hardware Installation
65
Step 7 Install ADAC Ultra2 S466
Choose a 5 V PCI slot and align the ADAC Ultra2 S466
controller card bus connector to the slot. Press down gently
but firmly to make sure that the card is properly seated in
the slot. The bottom edge of the controller card should be
flush with the slot.

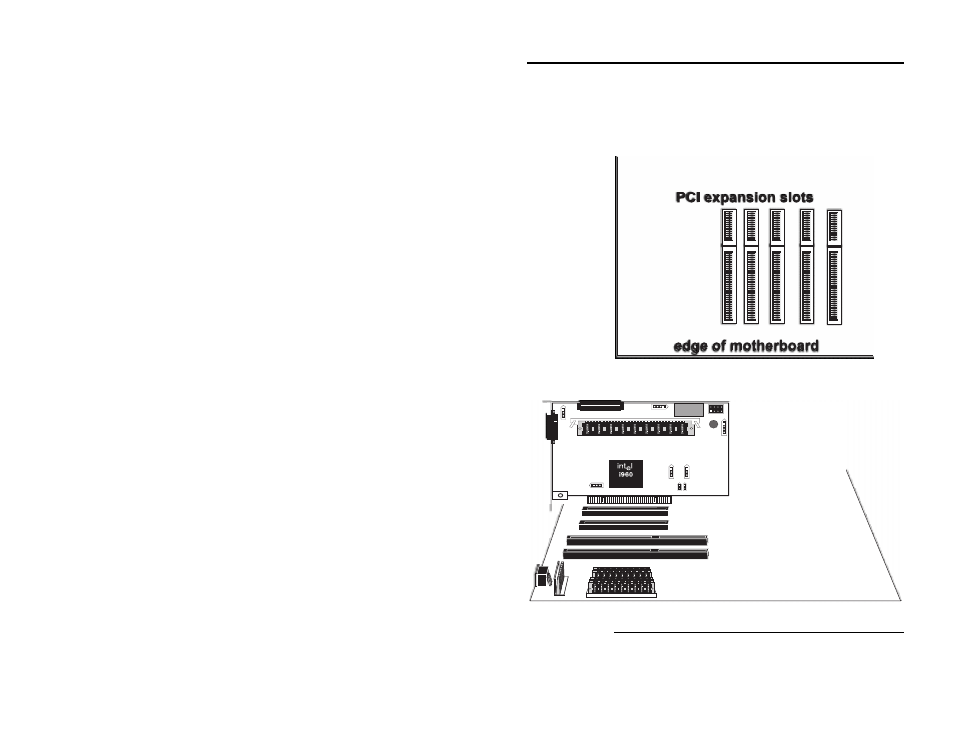

Insert the ADAC Ultra2 S466 card in a PCI slot as shown
below:
Screw the bracket to the computer frame.
