ADAC Ultra2 S466 Hardware Guide 58
Step 5 Set Jumpers
Make sure the jumper settings on the ADAC Ultra2 S466
card are correct. The jumpers and connectors are:
Connector Description Type
J2 Internal SCSI Wide (16-bit) connector 68-pin connector
J6 External SCSI 2 Wide (16-bit)
connector 68-pin connector
J5 Disk Activity LED four-pin connector
J1 Termination Enable Control 3-pin header
J3 I2C connector 4-pin header
J7 Cache memory SIMM socket 72-pin connector
J4 Serial port connector 9-pin connector
J8
J9 Short Pins 1-2. 3-pin header
J10 Short Pins 1-2 3-pin header
J11 i960RP configuration 2-pin header
J12 i960RP configuration 2-pin header

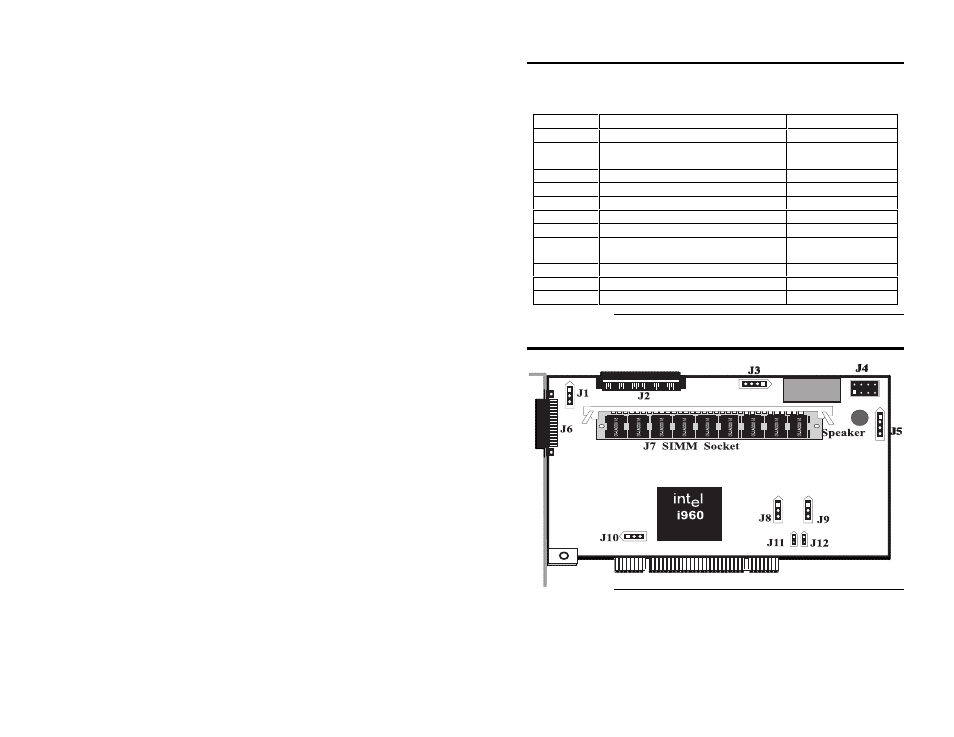

ADAC Ultra2 S466 Card Layout
Cont’d
