Settings files and offline system configuration 30
8

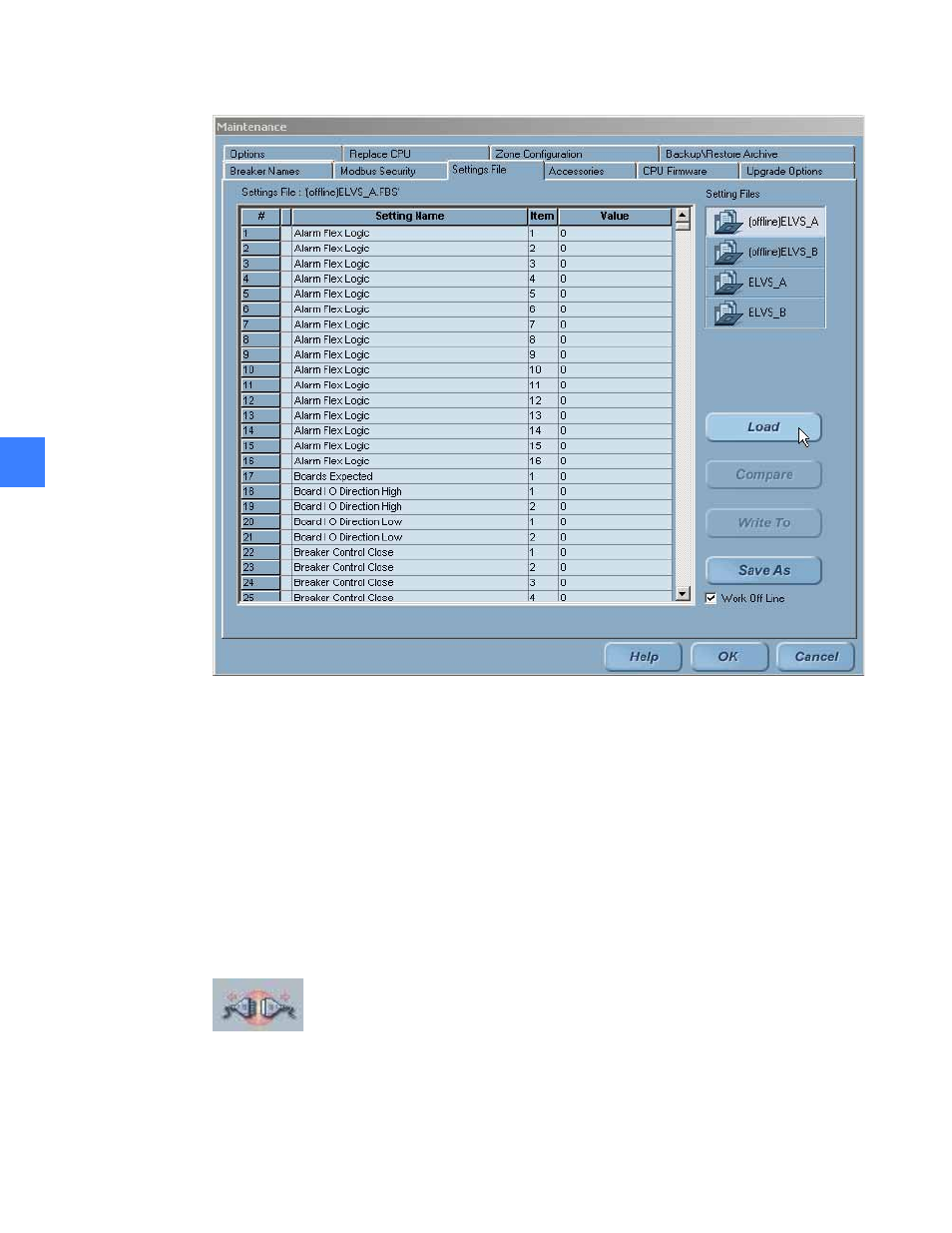

Figure 8-1 Settings File screen
To enable or disable offline mode
1. On the Main Menu, click the Maintenance button. The button will only display if
Maintenance access is allowed with the current login permissions.
2. On the Maintenance screen, click the Settings File tab.
3. Select the Work Offline check box to change to offline mode. This can be found in the lower
right-hand corner in Figure X (chapter 2.1). [dk: no section 2.1?]
HMI will go into offline mode and disconnect from the live system.
HMI will connect to the live system.
An icon on the bottom-right screen displays to indicate that the application is in offline mode.
Figure 8-2 Offline mode icon
The first time offline mode is enabled, a new set of settings files will be created as follows:
Offline(ELVS_A).fbs and Offline(ELVS_B).fbs.
