Setting IP addresses for remote communication 23
6

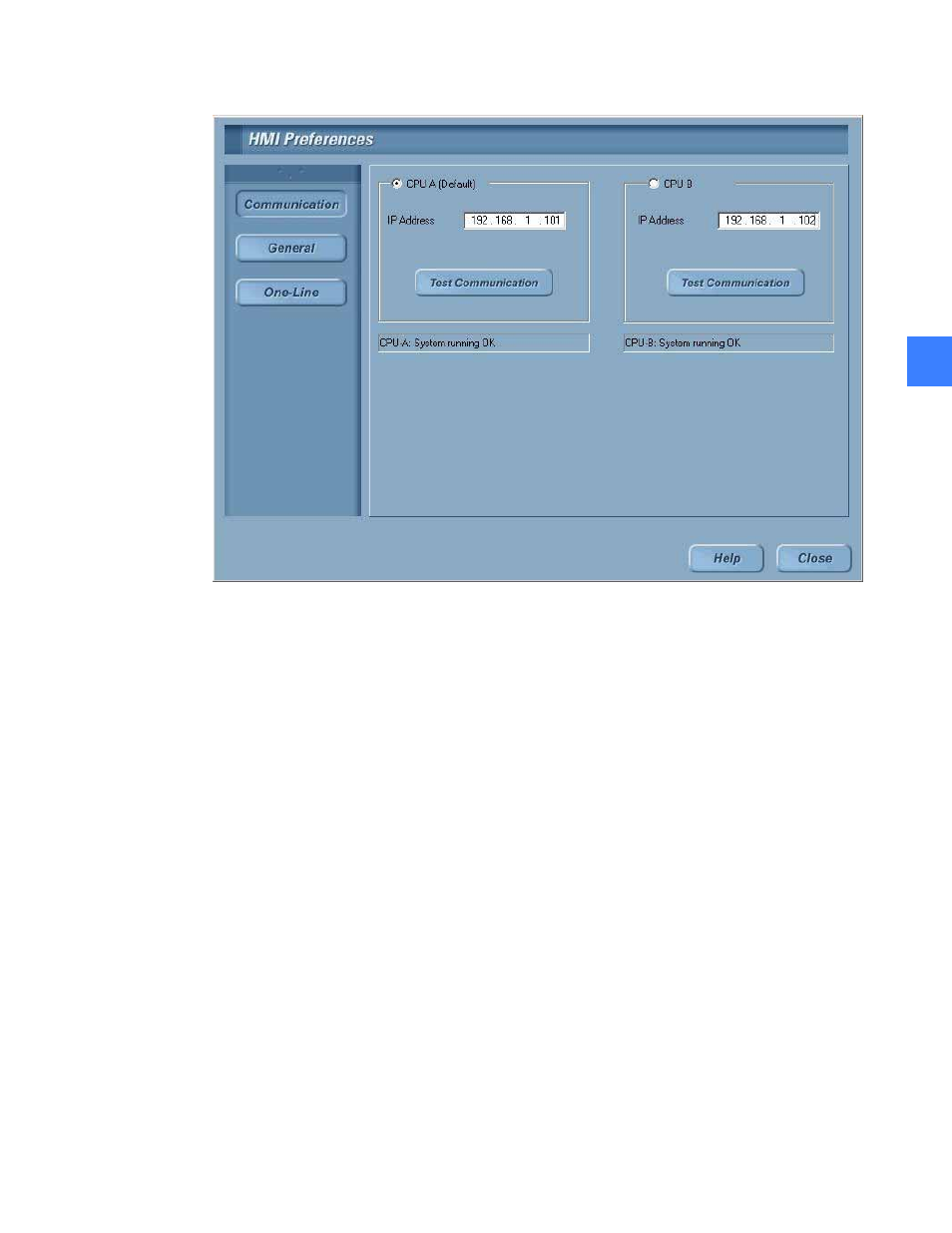

Figure 6-1 Set CPU IP Addresses screen
6. Click the Test Communication button to verify the communication status with the new
IP address. It will take a few seconds to establish communication with the CPU.
7. In unable to connect, a dialog box will display. Click the Retry button to test communication
again or click Cancel to exit.
8. The Communication status with the new IP address will display below the IP address edit
dialog box.
For example:
“CPU A: System Running OK” – Communication with new IP address is success.
“CPU B: System Unavailable” – Failed to communicate with new IP address.
