Replacing and Adding System Components
10

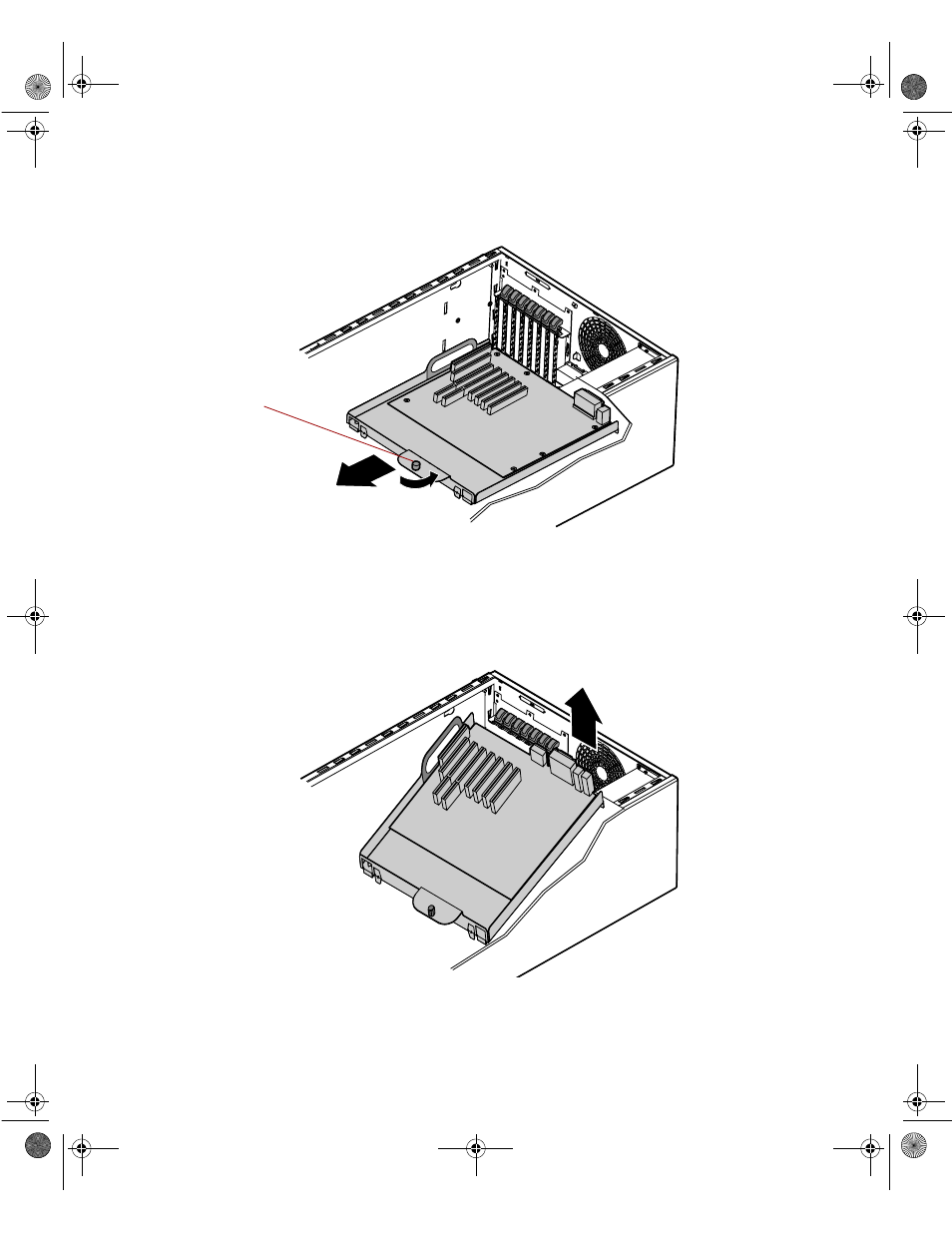

Loosen the retaining thumbscrew securing the board support tray to the
right side of the chassis.
11
Slide the board support tray toward the front of the chassis slightly to
disengage it from the stand-off retention hooks.
12
Using the handle at the bottom of the board support tray, pull the back
edge of the system board (the edge against the back panel) out of the
chassis.
Retaining
thumbscrew
